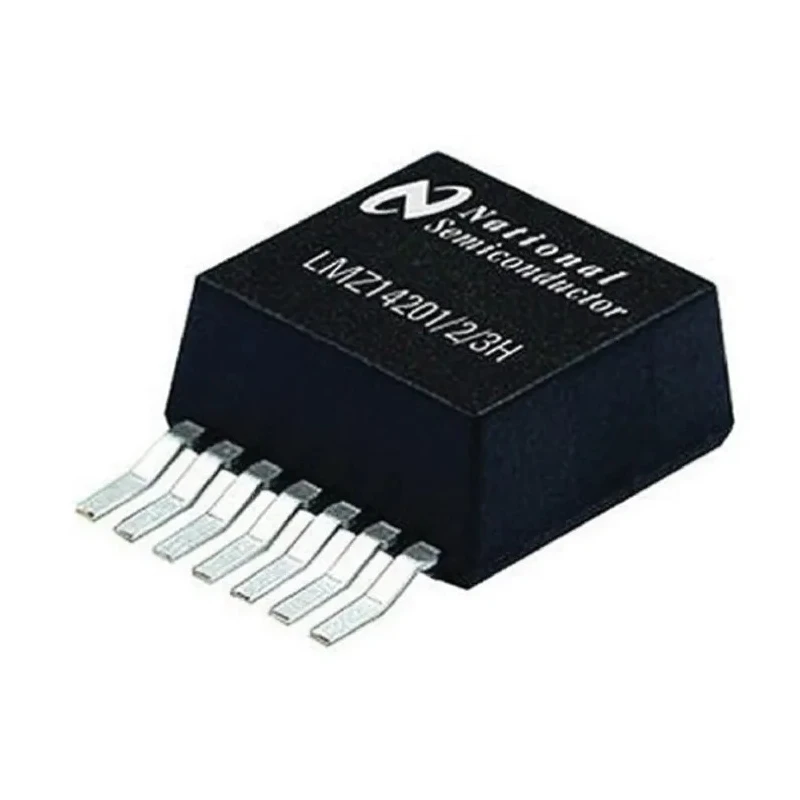

Texas Instruments DC/DC Converter Surface Mount, 24V Output Voltage, 1 A Output Current, 88% Efficiency LMZ14201HTZE/NOPB

Texas Instruments LMZ14201HTZE/NOPB DC/DC Converter is a surface mount, single-output power module delivering 24V output voltage at 1 A output current. It is engineered for applications demanding high input voltages up to 42V, making it an ideal solution for industrial, telecommunications, and automation power supplies.

This SIMPLE SWITCHER® power module integrates a shielded inductor along with precision enable and soft-start features to ensure smooth power sequencing and superior thermal management. Its compact TO-PMOD package supports efficient circuit layout in space-constrained designs.

The module exhibits an efficiency rating of 88%, reducing power losses and improving system reliability. It operates effectively across a wide temperature range from -125°C to 125°C, suitable for harsh environmental conditions. It includes line regulation of 0.01% and load regulation of 1.5 mV/A, guaranteeing precise voltage outputs under varying loads.

Manufactured to comply with stringent REACH, ESDA, JEDEC, ANSI, and RoHS standards, this DC/DC converter also meets EN55022 (CISPR22) Class B EMI requirements for both radiated and conducted emissions, ensuring electromagnetic compatibility in sensitive equipment.

The LMZ14201HTZE/NOPB features 7 pins and a compact size with physical dimensions approximately 10.16 mm length, 9.85 mm width, and 1.3 mm depth, facilitating easy PCB integration. This non-isolated power module is perfect for power conversion tasks in automation systems, communication devices, and industrial electronics requiring clean and stable power delivery.

Offers high efficiency of 88% for optimized power usage. Features a precision enable and soft-start pins for reliable operation. Supports a wide input voltage range from 6 V to 42 V. Complies with REACH, ESDA, JEDEC, ANSI, and RoHS standards.

Compact package with dimensions approximately 10.16 mm in length and 9.85 mm in width. Includes integrated shielded inductor for superior thermal performance. Non-isolated module suitable for advanced EMI protection. Designed with a TO-PMOD package type and has 7 pins for connection.

Operating temperature rated at -125°C minimum and 125°C maximum. Passes EN55022 (CISPR22) Class B radiated and conducted EMI requirements. Explore Texas Instruments DC/DC Converters and power management solutions at EnvMart for reliable electronic component sourcing.
