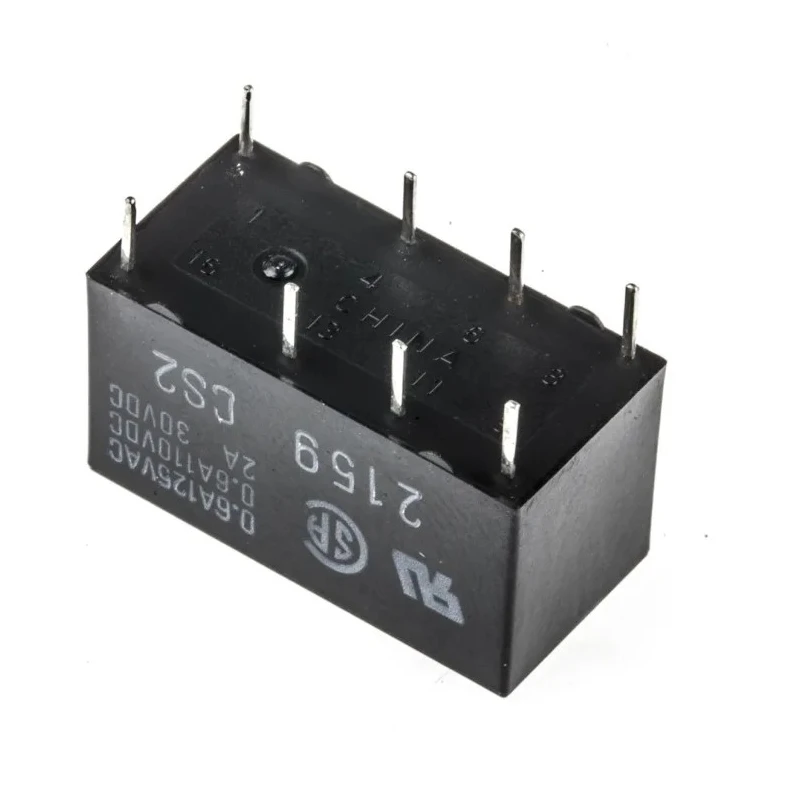

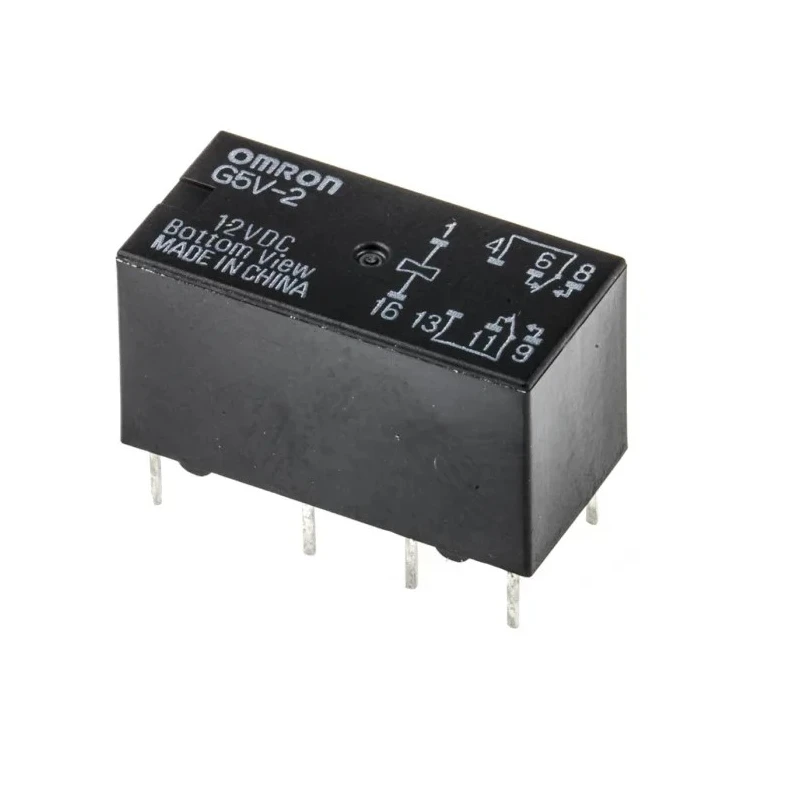

Omron PCB Signal Relay, 12V dc Coil, 2A Switching Current, DPDT G5V-2 DC12

Omron G5V-2 DC12 PCB Signal Relay is a high-performance, ultra-miniature, non-latching relay designed for precise signal switching applications. Featuring a 12V DC coil and dual-pole double throw (DPDT) contact configuration, this relay supports switching currents up to 2A with switching voltages up to 125V AC and DC. Its fully sealed construction offers excellent resistance to environmental factors, ensuring reliable operation in various industrial and commercial conditions.

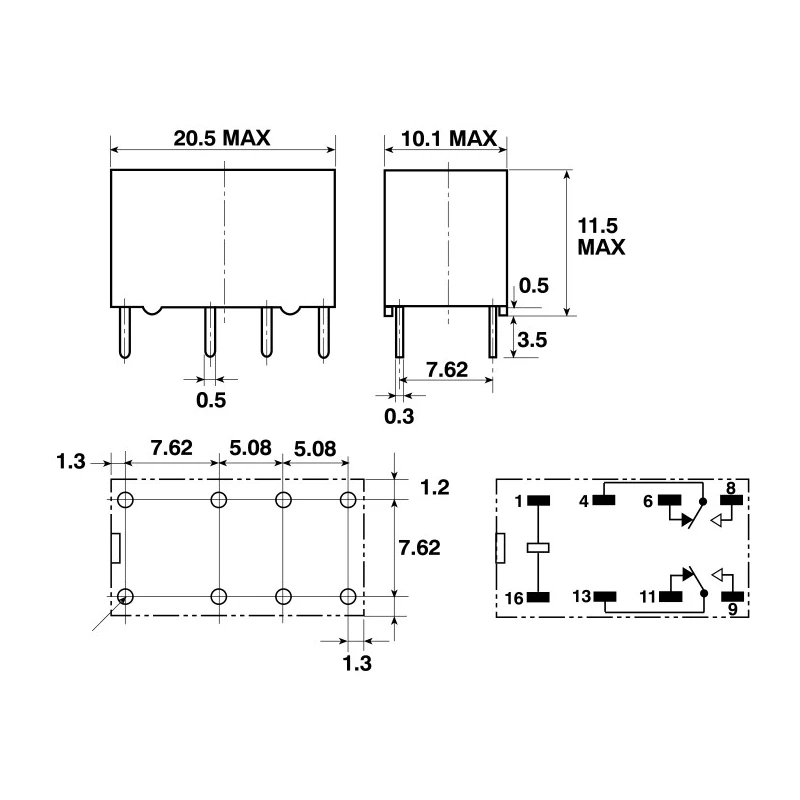

This relay is equipped with PCB mounting solder terminals, measuring 20.5mm in length, 10mm in width, and 11.5mm in height, making it compact for high-density circuit board designs. The coil resistance is rated at 288 ohms with a power consumption of approximately 500mW, delivering efficient energy use. Its contact materials are composed of ruthenium and palladium, providing low contact resistance and enhancing durability over prolonged usage cycles.

The relay operates across a broad temperature range from -25°C to 70°C, suitable for telecom, security, and various signal conditioning equipment. With dielectric strength up to 1000V AC between coil and contacts, it maintains electrical isolation and safety. Its vibration and shock resistance features ensure robustness against mechanical stresses in demanding environments.

The relay is ultra-miniature and designed for signal circuits with a completely sealed package ensuring environmental resistance. DPDT contact configuration enables reliable switching with a maximum switching voltage of 125V AC and DC.

Coil resistance is 288 ohms with a coil power consumption of 500mW for efficient operation. Compact dimensions of 20.5mm length, 10mm width, and 11.5mm height provide easy PCB mounting with solder terminals. Operating temperature range from -25°C to 70°C suits diverse industrial environments.

Contact materials include ruthenium and palladium for durability and low contact resistance. Provides high dielectric strength of 1000V AC between coil and contacts for electrical safety. Ideal applications include telecommunication, security equipment, and signal switching tasks.

This product is essential for industrial automation, telecommunications, security systems, and electronic manufacturing, where compact, reliable signal relays are required. Omron’s G5V series adheres to RoHS standards, confirming compliance with environmental directives.
