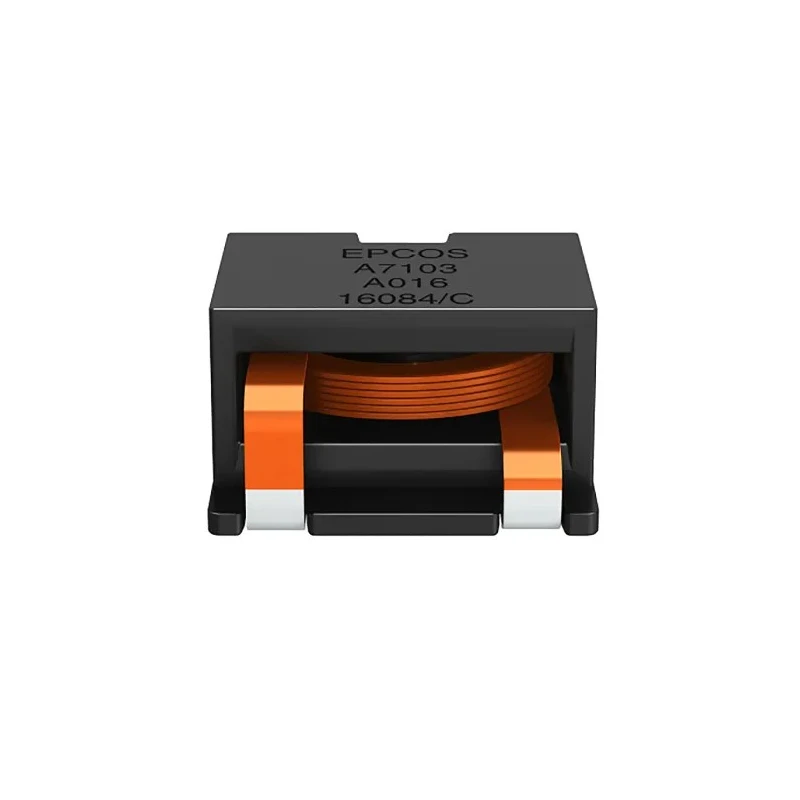

TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 30μH ±10% 9.2A Idc B82559B0303A016

Free Delivery in India | Lowest Global Shipping Charges

TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 30μH ±10% 9.2A Idc B82559B0303A016



Category Electronic Components, Power & Connectors Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	10.95mm
Length	17.3mm
Model	B82559B0303A016
Depth	18.7mm
Packaging	Tape & Reel
Series	B82559_A016
Maximum Operating Temperature	150°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	30μH
Standards/Approvals	RoHS
Package/Case	Surface Mount
Maximum DC Current	9.2A
Pin Count	3
Maximum DC Resistance	16.5mΩ
Inductance Tolerance	±10 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	2MHz
Inductor Construction	Shielded
Automotive Standard	AEC-Q200

Key Features

Constructed with a ferrite core for high performance.
Designed for surface mount applications on PCBs.
Features shielding for EMI reduction.
Has a maximum DC resistance of 16.5mΩ for efficiency.
Suitable for automotive applications meeting AEC-Q200 standard.
Operates reliably from -40°C to 150°C temperature range.
Compact size with length 17.3mm, depth 18.7mm, and height 10.95mm.
Package includes tape and reel suitable for pick-and-place processes.

Product Description

TDK B82559B0303A016 is a high-quality shielded wirewound surface mount inductor incorporating a ferrite core. It offers an inductance of 30μH with a tolerance of ±10%, capable of handling a continuous DC current of up to 9.2A. The device is engineered for demanding electronic applications requiring reliable performance and low losses.

This inductor is designed with shielding to minimize electromagnetic interference (EMI) and ensure stable operation in complex circuit environments. The low DC resistance of 16.5mΩ improves efficiency, reducing power losses and heat buildup. Its construction follows the automotive AEC-Q200 standard, making it suitable for robust automotive and industrial applications.

With compact dimensions (17.3mm length, 18.7mm depth, and 10.95mm height), it is ideal for space-constrained circuit board layouts. The termination style is surface mount with three pins, enabling automated assembly on PCBs. The product is packaged on tape and reel to facilitate high-volume manufacturing through pick-and-place machines.

Its operational temperature range extends from -40°C to +150°C, ensuring durability in harsh environments. Additionally, the maximum self-resonant frequency is 2MHz, making it suitable for power conversion circuits such as DC-DC converters, VRM modules, POL converters, and solar converters. This inductor is commonly used for energy storage chokes and filtering in power supplies and industrial electronic systems.

Constructed with a ferrite core for high performance. Designed for surface mount applications on PCBs. Features shielding to reduce electromagnetic interference. Extremely low DC resistance for efficient operation. Meets automotive standard AEC-Q200 for reliability.

Wide operating temperature from -40°C to 150°C. Compact footprint suited for space-limited designs. Tape and reel packaging supports automated assembly. High self-resonant frequency of 2MHz for power electronics. Three-pin surface mount termination style.

This TDK inductor is ideal for industrial, automotive, manufacturing, and power electronics applications requiring compact, reliable inductors with high current handling capabilities. Explore more surface mount inductors for specialized applications on EnvMart.
