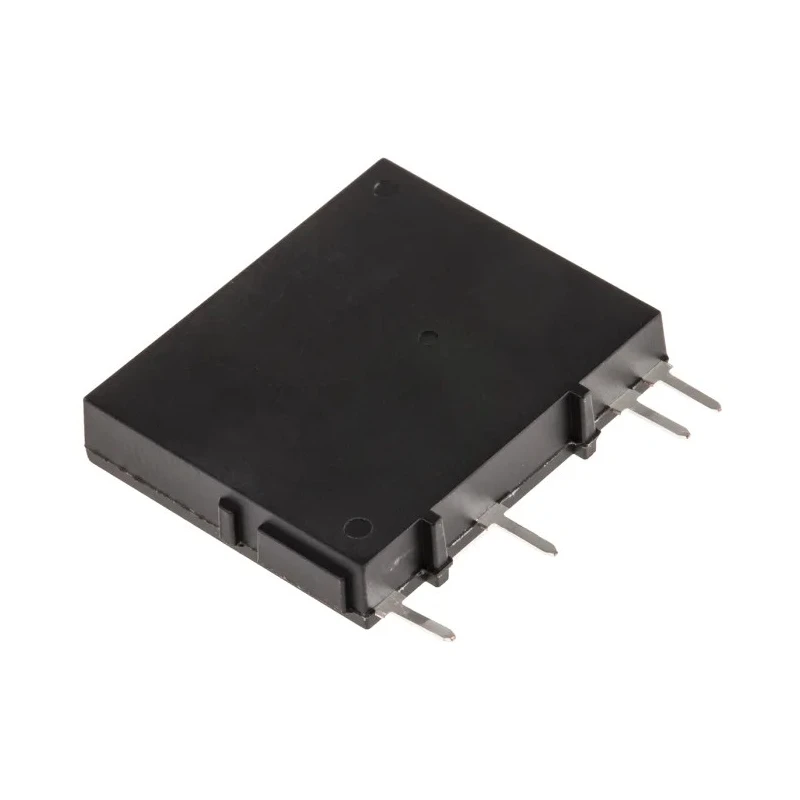

Panasonic Solid State Relay, PCB Mount, 2A Load Current, 264V Load Voltage, 19.2-28.8V DC Control AQG22124

Panasonic AQG22124 solid state relay is a high-performance PCB mount device designed to efficiently control electrical loads up to 2 Amperes at a maximum load voltage of 264 Volts. It is part of the AQG series known for space-saving design and high dielectric strength of 3000V AC, making it suitable for compact control panels and automation systems.

The relay operates with a minimum control voltage of 19.2 V DC and a maximum of 28.8 V DC, providing reliable switching triggered by DC control signals. Its zero cross switching function minimizes electrical noise and switching transients, enhancing the lifespan of connected equipment.

This SIP-4 package relay measures 24.5 mm in length, 20.5 mm in height, and 4.5 mm in width, enabling easy integration on printed circuit boards in industrial automation, HVAC systems, and manufacturing control applications.

Operating in temperatures ranging from -30°C to +80°C, it is robust enough for heavy-duty industrial environments. The built-in snubber circuit and phototriac coupler output type optimize switching operation and add protection for sensitive loads.

Manufactured to high standards in Japan, this relay complies with cUL, UL, VDE certifications and RoHS directives, ensuring safety, environmental compliance, and reliability. This relay supports loads up to 2 Amperes and operates with a maximum load voltage of 264 Volts.

It features zero cross switching function for reducing electrical noise and transient voltages. The control voltage range is from 19.2 volts to 28.8 volts DC for reliable activation. The package type is SIP-4 with dimensions 24.5mm length, 20.5mm height, and 4.5mm width, allowing compact PCB installations.

Operating temperature ranges from -30°C to +80°C, ensuring durability in diverse industrial environments. Integrated snubber circuit and a phototriac coupler output increase performance stability and protect connected devices.

Manufactured in Japan with approvals from cUL, UL, VDE, and compliance to RoHS standards ensures high quality and safety.

This Solid State Relay is ideal for industrial automation control, electrical switching for heating elements, lighting control, and other applications requiring silent, fast, and reliable load switching. Explore Panasonic products on EnvMart for a wide range of industrial electrical components to suit various commercial and manufacturing needs.
