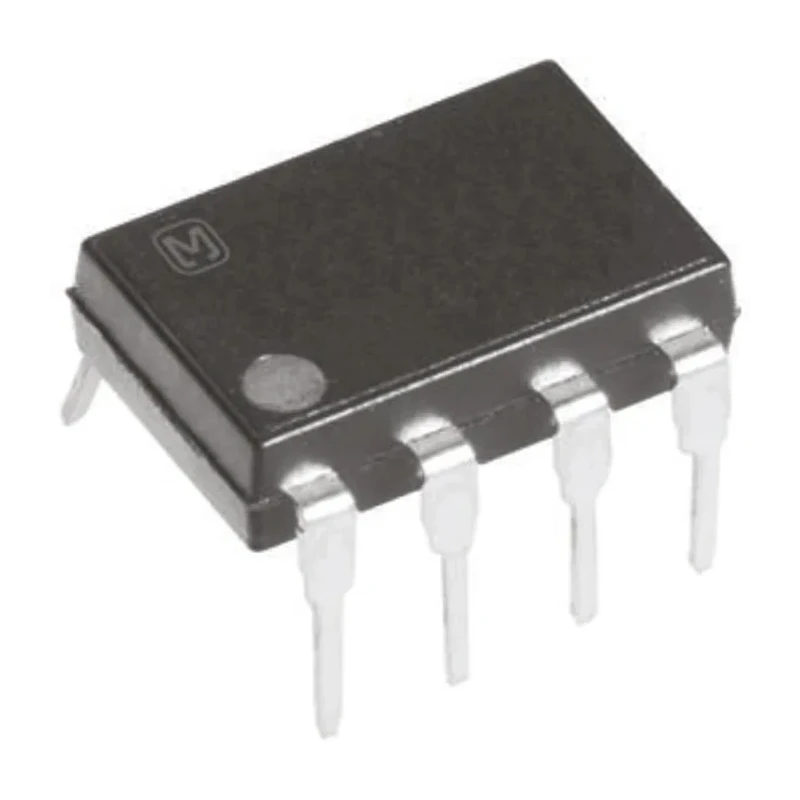

Panasonic AQH3223 Solid State Relay 1.2 A Load, PCB Mount, 600 V Load, 1.3V Control

Panasonic AQH3223 solid state relay is a compact DIP-8 package device designed for effective AC load control with a maximum current of 1.2 A and load voltage of 600 V. Utilizing a PCB mount through-hole design, it operates with a low control voltage range from 1.21 V to 1.3 V and features zero cross switching to minimize electrical noise and wear.

The relay is constructed with palladium-nickel contacts, promoting high electrical endurance and resistance to vibration and abrasion. It offers a high isolation voltage of 5000 Vac between the coil and contacts, ensuring safety and strong dielectric strength.

This relay has a wide service temperature range from -30°C to 85°C, making it suitable for various environmental conditions found in industrial and home appliance applications.

Key uses include being integral to devices such as air conditioners, microwave ovens, refrigerators, washing machines, automotive systems, industrial machinery, and robotics, where reliable and efficient AC load switching is critical.

Environmentally friendly and compliant with RoHS, and certified to UL, cUL, and VDE standards, this Panasonic AQ-H series relay assures quality and industry-standard safety. Compact DIP-8 PCB mount type with through hole terminals.

Zero cross switching for noise reduction. High dielectric strength with 5000 Vac isolation voltage. Operating temperature from -30°C to 85°C. Low off-state leakage current of 100μA. Phototriac coupler output ensuring reliable switching.

Durable palladium-nickel contacts for extended life. Compliant with RoHS and certified by UL, cUL, VDE. Applications in home appliances, automotive, industrial machinery, and robotics.

This high-quality solid state relay from Panasonic supports industrial, HVAC, manufacturing, and commercial applications requiring robust and efficient load control. Explore more Panasonic relays and electronic components in the Solid State Relay category on EnvMart.
