ams OSRAM 2 V Red LED 2012 Surface CHIP LED 0805 LS R976-NR-1

Free Delivery in India | Lowest Global Shipping Charges

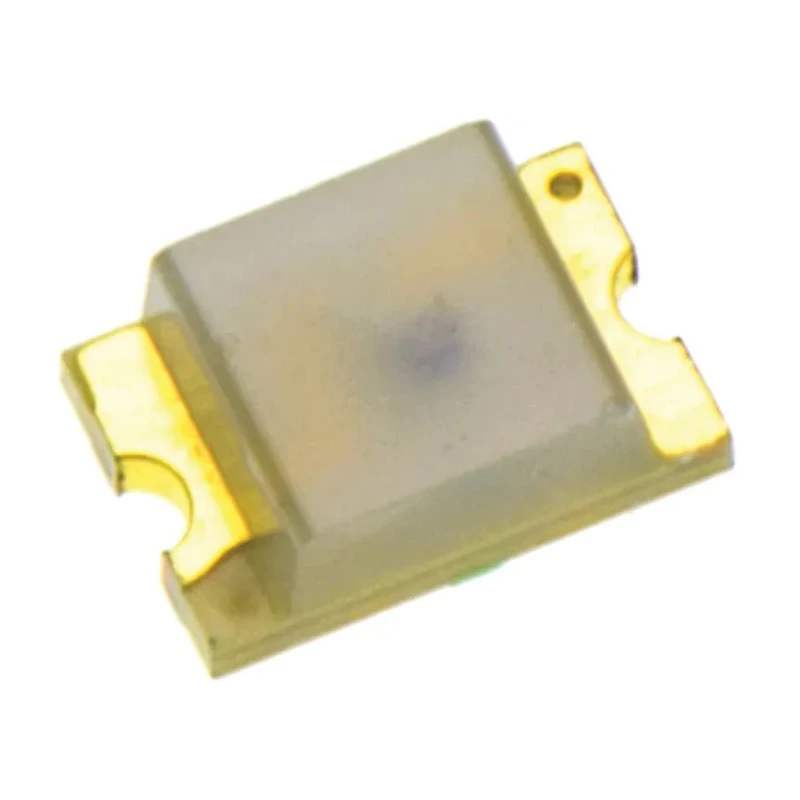

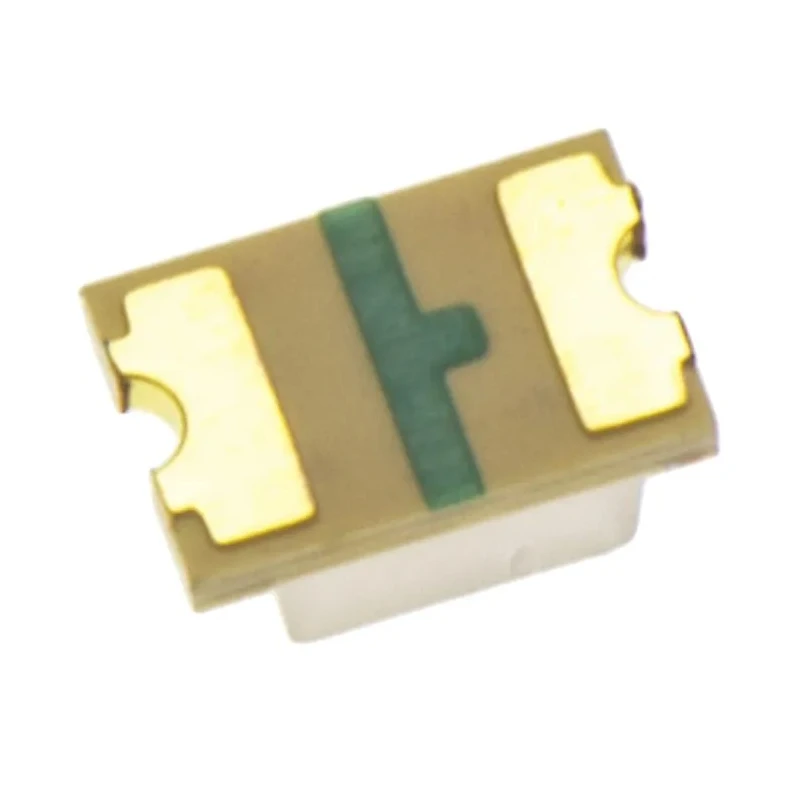

ams OSRAM 2 V Red LED 2012 Surface CHIP LED 0805 LS R976-NR-1

Name: ams OSRAM 2 V Red LED 2012 Surface CHIP LED 0805 LS R976-NR-1
Brand: ams OSRAM
SKU: 415617
Price: 0.1 USD
Availability: InStock



Category LED Brand ams OSRAM Condition New

Specifications

Country of Origin	India
Brand	ams OSRAM
Model	LS R976-NR-1
Packaging	Tape & Reel
Mount Type	Surface
Series	CHIP LED 0805
Maximum forward current	25mA
Viewing angle	160 °
Package Type	2012
Standards/Approvals	RoHS
LED Colour	Red
Dominant Wavelength	633nm
Forward Voltage	2V
Number of Pins	2
LED Luminosity	146 mcd
Lens Dimensions	2.0 x 1.25 x 0.8 mm
Lens Shape	Rectangular
LED Luminous Flux	0.47 lm
Osram Opto2.5 V Red LED SMD, LSR976Brand	OSRAM Opto Semiconductors

Key Features

The LED operates at a maximum forward current of 25 mA.
It features a forward voltage of 2 V and emits red light with a dominant wavelength of 633 nm.
The package dimensions are 2.0 x 1.25 x 0.8 mm with a rectangular lens shape.
The viewing angle is 160 degrees, providing wide-angle illumination.
The LED has a brightness of 146 millicandelas and luminous flux of 0.47 lumens.
It comes in a tape & reel packaging and is RoHS compliant.
Suitable for use as optical indicators, display backlighting, and floor marker lighting in industrial, commercial, and electronic applications.

Product Description

ams OSRAM LS R976-NR-1 is a high-quality 2 V Red LED housed in the compact 2012 CHIP LED 0805 surface-mount package, ideal for space-constrained SMT applications. Designed by ams OSRAM, this LED delivers reliable performance with a maximum forward current of 25 mA and a forward voltage rating of 2 V.

The LED emits a vivid red light with a dominant wavelength of 633 nm, making it suitable for optical indicators, display backlighting, floor marker lighting, and toy illumination. The 2.0 x 1.25 x 0.8 mm package includes a rectangular, clear lens with a wide 160° viewing angle to ensure broad and consistent light diffusion.

With a typical luminance of 146 millicandelas and luminous flux of 0.47 lumens, this LED supports bright and efficient illumination. Its surface mount design enables easy integration into electronic circuits and devices. The tape and reel packaging facilitates automated handling and assembly processes in manufacturing environments.

The LS R976-NR-1 is RoHS compliant, ensuring it meets environmental and safety standards required in modern industrial and electronic products.

This LED is widely applicable in industrial, laboratory, electronics manufacturing, commercial displays, and HVAC systems for status indication and lighting needs. Its compact size and strong optical output also permit use in automotive and consumer electronic marking applications where space and visibility are critical.

The LED operates at a max forward current of 25 mA. Forward voltage rating is 2 V. Package size is 2.0 x 1.25 x 0.8 mm with rectangular lens. Viewing angle of 160 degrees provides wide illumination. Luminous intensity of 146 mcd and luminous flux of 0.47 lm.

Available in tape & reel packaging for efficient assembly. RoHS compliant for environmental safety.
