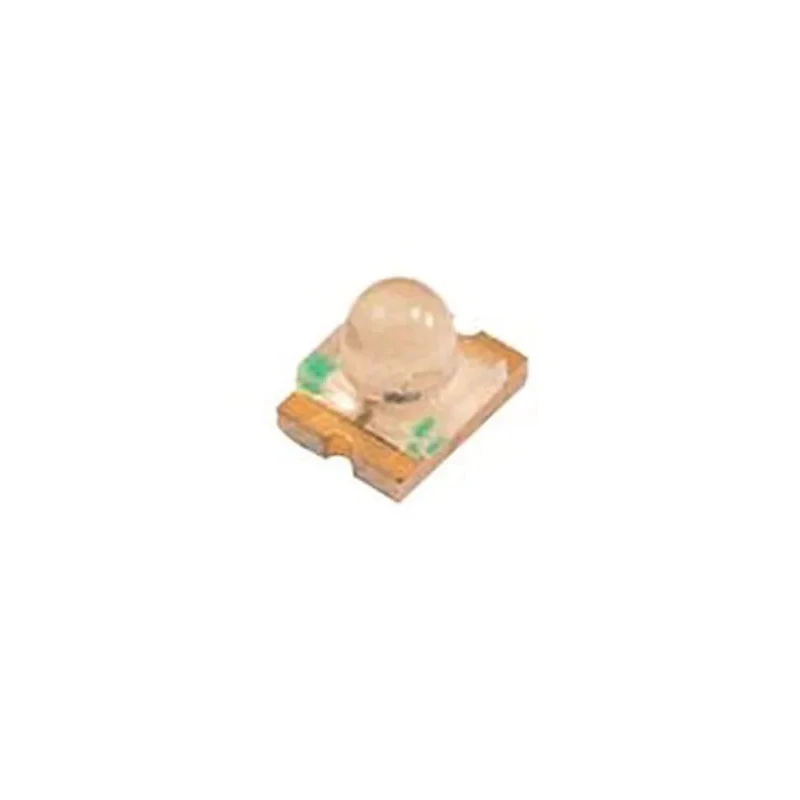

Lite-On 3.3 V Blue LED 3016 Surface Mount CHIP LED 1206 LTST-C21TBKT
Specifications
| Country of Origin | China |
|---|---|
| Brand | Lite-On |
| Model | LTST-C21TBKT |
| Mount Type | Surface |
| Series | CHIP LED 1206 |
| Maximum forward current | 20mA |
| Viewing angle | 70 ° |
| Package Type | 3016 |
| Standards/Approvals | MIL-STD-883D, MIL-STD-750D, MIL-STD-202F, J-STD-020C, JIS C 7021, IEC 68 Part 2-20, EIA STD, ANSI/EIA 481-1-A-1994, RoHS |
| LED Colour | Blue |
| Dominant Wavelength | 470nm |
| Forward Voltage | 3.3V |
| Number of Pins | 2 |
| LED Luminosity | 45.0 to 280.0 mcd |
| Maximum Power Dissipation | 76mW |
| Lens Dimensions | 3.2 x 1.6 x 1.1 mm |
| Lens Shape | Rectangular |
Key Features
- Features a compact 3.2 x 1.6 x 1.1 mm rectangular 3016 package suitable for surface mounting.
- Operates at a forward voltage of 3.3 V with a maximum forward current of 20 mA.
- Provides wide viewing angle of 70 degrees for broad light dispersion.
- Emits blue LED light with a dominant wavelength of 470 nm and luminosity ranging from 45.0 to 280.0 mcd.
- Adheres to multiple industrial standards including MIL-STD-883D and RoHS compliance.
- Equipped with clear lens finish and two pins for robust electrical connection.
- Maximum power dissipation is rated at 76 mW ensuring efficient operation.
- Suitable for optical indicators, display backlighting, floor marker lighting, and toys.
Product Description
Lite-On LTST-C21TBKT Blue LED 3016 Surface Mount CHIP LED 1206 is a high-quality electronic component designed for various industrial and commercial applications. Operating at 3.3 V forward voltage with a maximum current of 20 mA, it ensures stable and efficient performance in compact SMT assemblies.
The LED features a compact rectangular 3016 package measuring 3.2 x 1.6 x 1.1 mm with a clear lens finish, offering a viewing angle of 70 degrees. It emits blue light with a dominant wavelength of 470 nm and brightness levels ranging from 45.0 to 280.0 mcd, making it ideal for precise indicator and backlighting functions.
This component complies with rigorous standards such as MIL-STD-883D, MIL-STD-750D, MIL-STD-202F, J-STD-020C, JIS C 7021, IEC 68 Part 2-20, EIA STD, ANSI/EIA 481-1-A-1994, and RoHS, ensuring reliability and safety.
The CHIPELD 1206 series LED is widely used in industrial, electronic manufacturing, and laboratory instrumentation scenarios where efficient, high-quality LED lighting is critical. It is suitable for optical indicators, display backlighting, floor marker lighting, and toy lighting applications.
Compact 3.2 x 1.6 x 1.1 mm rectangular 3016 surface mount package. Forward voltage of 3.3 V and max forward current 20 mA. Blue LED with 470 nm dominant wavelength and 45.0 - 280.0 mcd luminosity. Wide 70° viewing angle for effective light dispersion.
Meets MIL-STD and RoHS standards for industrial compliance. Clear lens with two-pin configuration for easy installation. Power dissipation rated at 76 mW for stable operation. Applications include optical indicators, backlighting, floor marker lighting, and toys.
Explore more Lite-On LED products and other advanced LED components at EnvMart for your industrial, manufacturing, and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of this model is 3.3 V.
It has a maximum forward current of 20 mA.
The viewing angle is 70 degrees, allowing for broad light dispersion.
The package dimensions are 3.2 x 1.6 x 1.1 mm.
The luminosity ranges from 45.0 to 280.0 mcd.
The dominant wavelength of the emitted blue light is 470 nm.
It complies with multiple standards including MIL-STD-883D and RoHS.
The maximum power dissipation is rated at 76 mW.
This model is designed for surface mounting.
It features a two-pin configuration for electrical connection.
It is suitable for optical indicators, display backlighting, floor marker lighting, and toys.
The lens shape is rectangular.
