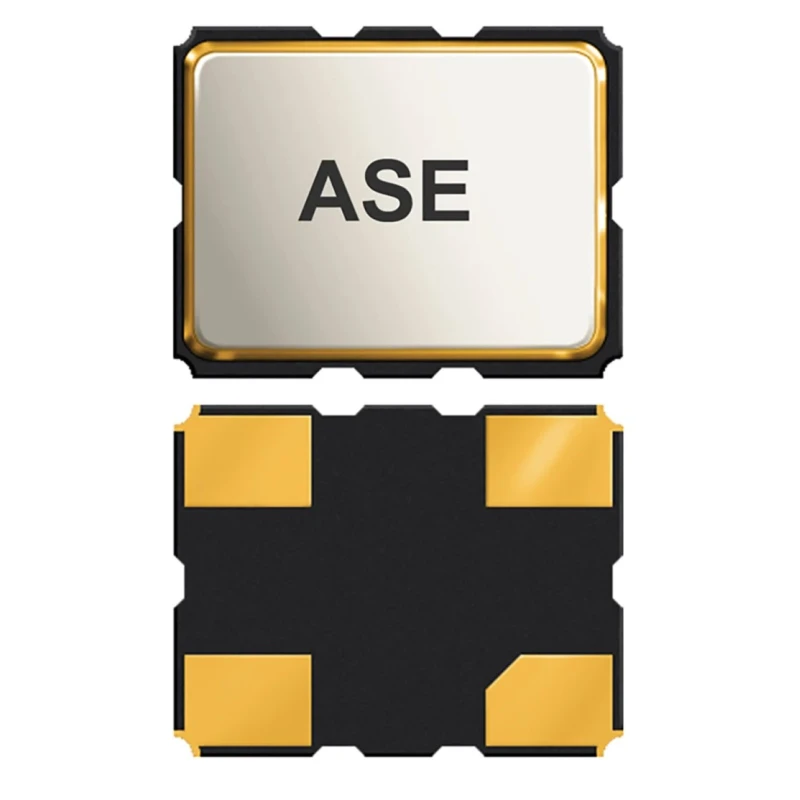

Abracon 12MHz XO Oscillator ±50 ppm CMOS 4-Pin Surface Mount ASE-12.000MHZ-LC-T

Abracon ASE-12.000MHZ-LC-T is a precision 12MHz XO Oscillator featuring ±50 ppm frequency stability and CMOS output. Designed as a 4-pin surface mount device, it operates reliably within a voltage range of 3.14V to 3.47V and temperature range from -40°C to 85°C. Its compact dimensions of 3.2mm length, 2.5mm width, and 1.2mm height facilitate integration into high-density electronic assemblies.

This oscillator provides a stable clock source ideal for applications such as CCD clock timing in VTR cameras, wireless communication devices, PDAs, PC cards, and laptops with SSD storage. The CMOS output delivers low power consumption and reliable digital signal levels. The device’s low RMS jitter of 5ps and low current consumption of up to 30mA at 200MHz frequencies contribute to improved performance in precision timing systems.

The oscillator is packaged in tape and reel format, supporting automated assembly processes. It is manufactured in Taiwan, Province Of China, adhering to stringent quality standards. This product is a dependable component for electronic system designers requiring stable and accurate clock oscillators within industrial, commercial, and communication equipment settings.

Oscillator type: XO with ±50 ppm frequency stability. Output frequency fixed at 12MHz. CMOS output compatible with digital logic systems. Surface mount 4-pin package for PCB integration. Operational voltage range from 3.14V to 3.47V.

Operating temperature range from -40°C to 85°C. Compact size of 3.2mm x 2.5mm x 1.2mm. Low RMS jitter and low current consumption. Tape & reel packaging enhances manufacturing efficiency. Manufactured in Taiwan, Province Of China.

This oscillator is suitable for a broad range of industrial, commercial, and communication applications requiring accurate and reliable timing signals. Browse more crystal Oscillators and related electronics components at EnvMart to meet your system design needs.
