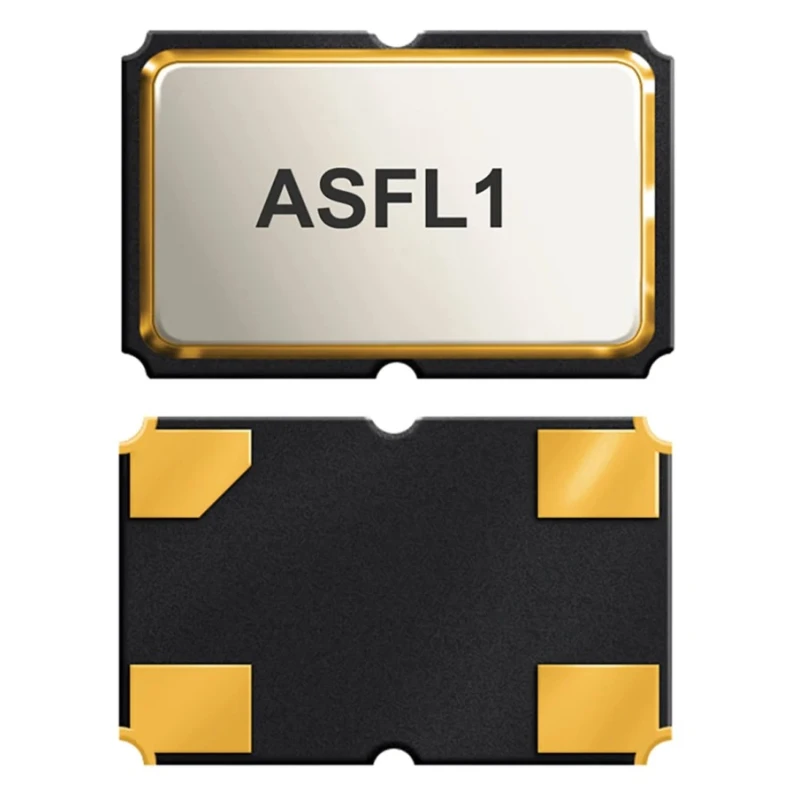

Abracon 25MHz Clock Oscillator ±50 ppm HCMOS TTL 4-Pin Surface Mount ASFL1-25.000MHZ-EC-T
Specifications
| Country of Origin | Korea |
|---|---|
| Brand | Abracon |
| Height | 1.3mm |
| Length | 5mm |
| Model | ASFL1-25.000MHZ-EC-T |
| Packaging | Tape & Reel |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | ASFL1 |
| Maximum Operating Temperature | 70°C |
| Output Frequency | 25MHz |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -20°C |
| Pin Count | 4 |
| Maximum Supply Voltage | 3.63V |
| Minimum Supply Voltage | 2.97V |
| Oscillator Type | Clock |
| Output Level | HCMOS, TTL |
Key Features
- Clock oscillator with 25MHz output frequency.
- HCMOS and TTL compatible output levels for versatile applications.
- Compact 4-pin surface mount package for high density PCB integration.
- Operating voltage range between 2.97V and 3.63V.
- Wide operating temperature range from -20°C to 70°C.
- Seam sealed package construction guarantees high reliability.
- Suitable for electronic equipment including CCD clocks, PDAs, laptops, and wireless communication devices.
- Supplied in tape & reel packaging for automated assembly processes.
Product Description
Abracon ASFL1-25.000MHZ-EC-T is a 25MHz clock oscillator designed for precise timing applications. Featuring a ±50 ppm frequency stability and HCMOS TTL output, this oscillator is built in a compact 4-pin surface mount package, optimized for high-density SMT circuits. It operates over a supply voltage range from 2.97V to 3.63V and supports wide environmental conditions with an operating temperature range from -20°C to 70°C.
The oscillator's 5mm by 3.2mm by 1.3mm dimensions and seam sealed packaging provide enhanced reliability, making it suitable for use in CCD clocks for VTR cameras, PC-related equipment including PC cards, thin PDAs, laptops, wireless communication devices, and other sensitive electronics requiring stable clock signals.
The tape & reel packaging facilitates automated assembly lines, ideal for mass production requirements. Clock oscillator with 25MHz frequency output and ±50 ppm stability. HCMOS and TTL compatible output levels for flexible integration.
Compact 4-pin surface mount design suitable for high-density PCB layouts. Wide supply voltage range of 2.97V to 3.63V for power adaptability. Robust operating temperature range from -20°C to 70°C. Seam sealed package construction ensures high reliability and environmental resistance.
Applications include CCD clocks, PDA, laptops, wireless communication, and PC cards. Tape & reel packaging supports automated and high volume PCB assembly.
This product is ideal for industrial, electronics manufacturing, consumer electronics, and communication equipment sectors. Browse more Oscillators and components on EnvMart for tailored electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this clock oscillator is 25MHz.
It operates over a supply voltage range from 2.97V to 3.63V.
The dimensions of this model are 5mm in length, 3.2mm in width, and 1.3mm in height.
The operating temperature range for this oscillator is from -20°C to 70°C.
This oscillator provides HCMOS and TTL compatible output levels.
It is supplied in tape & reel packaging, which facilitates automated assembly processes.
This clock oscillator has a pin count of 4.
It is suitable for applications including CCD clocks, PDAs, laptops, and wireless communication devices.
The oscillator features a seam sealed package construction, which enhances reliability.
Yes, its compact 4-pin surface mount design is optimized for high-density PCB integration.
The country of origin for this product is Korea.
This clock oscillator belongs to the ASFL1 series.
