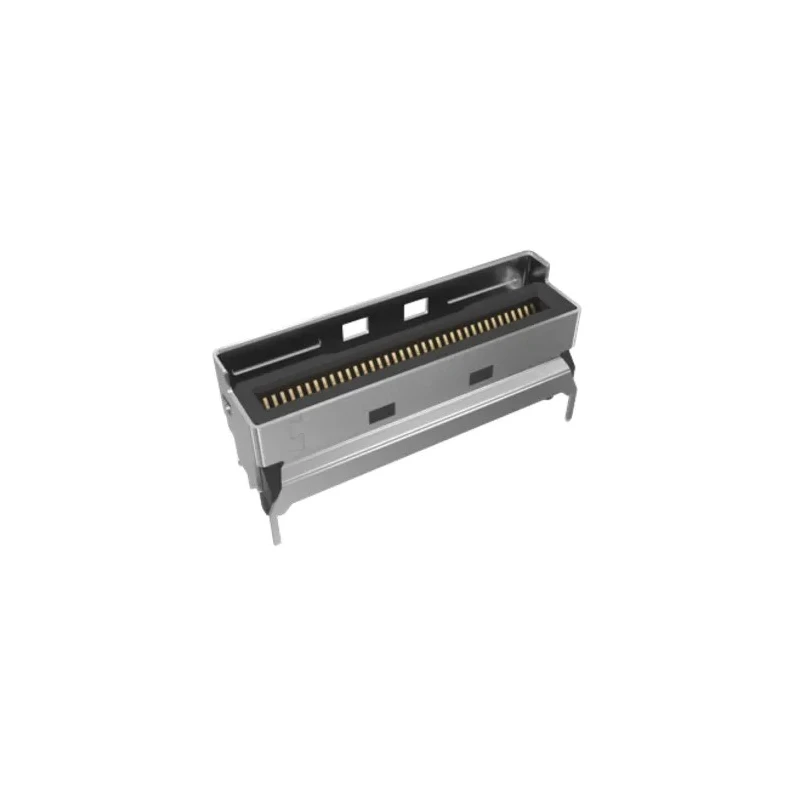

Amphenol Communications Solutions Mini Cool Edge IO Series Vertical Edge Connector, Panel Mount, 74-Contacts G97V22332HR
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V |
| Brand | Amphenol Communications Solutions |
| Orientation | Vertical |
| Model | G97V22332HR |
| Mount Type | Panel |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | Mini Cool Edge IO |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 0.6mm |
| Standards/Approvals | UL, RoHS |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 74 |
| Card Type | PCIe |
Key Features
- Features a vertical orientation suitable for panel mounting.
- Includes 74 gold over nickel plated copper alloy contacts with 0.6 mm pitch.
- Operates at voltages up to 300V with a temperature range from -55°C to 85°C.
- Constructed with a thermoplastic housing for durability and compliance with UL and RoHS standards.
- Supports PCIe card type connections and ensures signal integrity for high-speed data centers.
- Enables signal transmission up to 56 Gb/s including PCIe Gen 4 and Gen 5 standards.
- Offers modular, scalable, and easy-to-repair system design flexibility.
- Supports both cable and card edge applications with one identical connector.
Product Description
Amphenol Communications Solutions G97V22332HR Mini Cool Edge IO Series Vertical Edge Connector is designed for compact, high-speed PCIe and data center systems requiring reliable edge connections. It features a panel mount with vertical orientation and 74 gold over nickel plated copper alloy contacts arranged at a 0.6 mm pitch to ensure excellent signal integrity and electrical performance.
This connector supports operating voltages up to 300V and maintains functionality in extreme temperature ranges from -55°C to 85°C. It complies with UL and RoHS standards, ensuring environmental and safety compliance. The housing material is thermoplastic, lending durability and reliability in various industrial and electronic environments.
With support for signal transmission speeds up to 56 Gb/s PAM4, including PCIe Gen 4 and PCIe Gen 5 protocols over distances exceeding 1.0 meter, this connector is ideal for modern high-performance computing, networking, and telecommunications infrastructures.
The Mini Cool Edge IO connector series provides a slim form factor that supports system designs requiring scalability, modularity, and ease of maintenance. Its ability to serve both cable and card edge applications with the same connector enhances design flexibility and reduces complexity.
This product is manufactured in China under stringent quality control to meet demanding industrial and commercial application requirements. Vertical orientation with panel mount type. 74 contacts with gold over nickel plating for high conductivity.
0.6 mm contact pitch ensuring dense and compact connections. Thermoplastic housing offers mechanical stability and safety. Supports PCIe card type interface with high-speed transmission. Wide operating temperature range extending from -55°C to 85°C.
Voltage rating suitable for up to 300V operation. UL and RoHS certified ensuring compliance and environmental safety. Designed for industrial, networking, telecommunications, and data center applications. Discover more products in the Edge Connectors category on EnvMart for versatile and reliable electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage of this edge connector is 300V.
This model operates within a temperature range of -55°C to 85°C.
It features 74 contacts arranged at a 0.6 mm pitch.
The contacts are made from gold over nickel plated copper alloy, while the housing is constructed from thermoplastic material.
It complies with UL and RoHS standards, ensuring environmental and safety compliance.
This connector is designed for industrial, networking, telecommunications, and data center applications.
It has a vertical orientation and is designed for panel mounting.
It supports signal transmission speeds up to 56 Gb/s, including PCIe Gen 4 and Gen 5 protocols.
Yes, it supports both cable and card edge applications with the same connector design.
The pitch of the contacts is 0.6 mm, allowing for dense and compact connections.
This connector is manufactured in China under stringent quality control standards.
It supports PCIe card type interfaces, ensuring compatibility with high-speed data connections.
