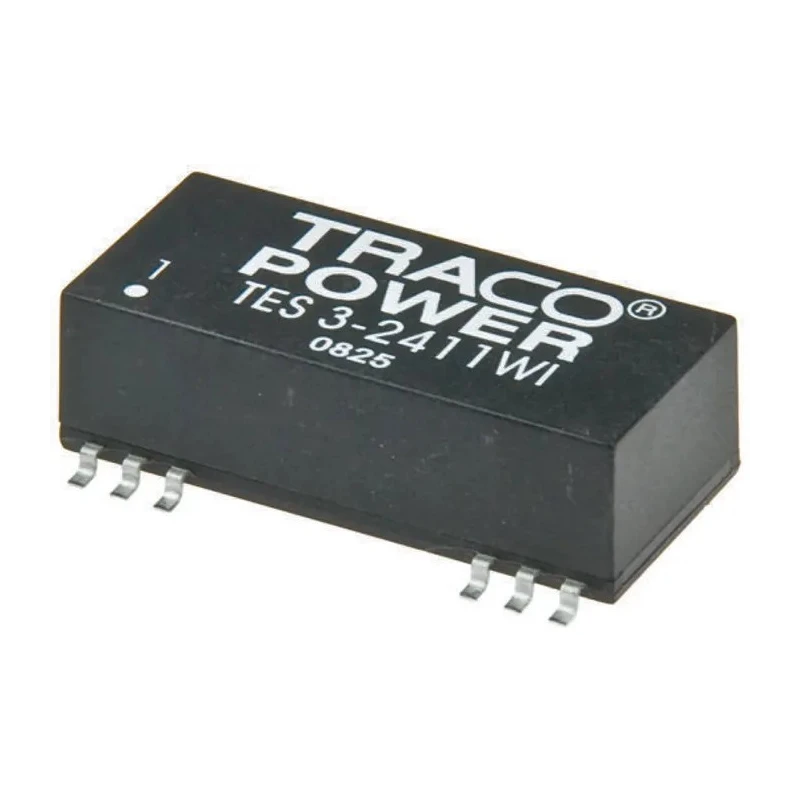

TRACOPOWER High Efficiency 3W Surface Mount Dual Output Regulated Isolated DC/DC Converter TES 3-2423WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TES 3WI DC/DC Converter, 15V dc/ 100 mA |
| Brand | TRACOPOWER |
| Efficiency | 81% |

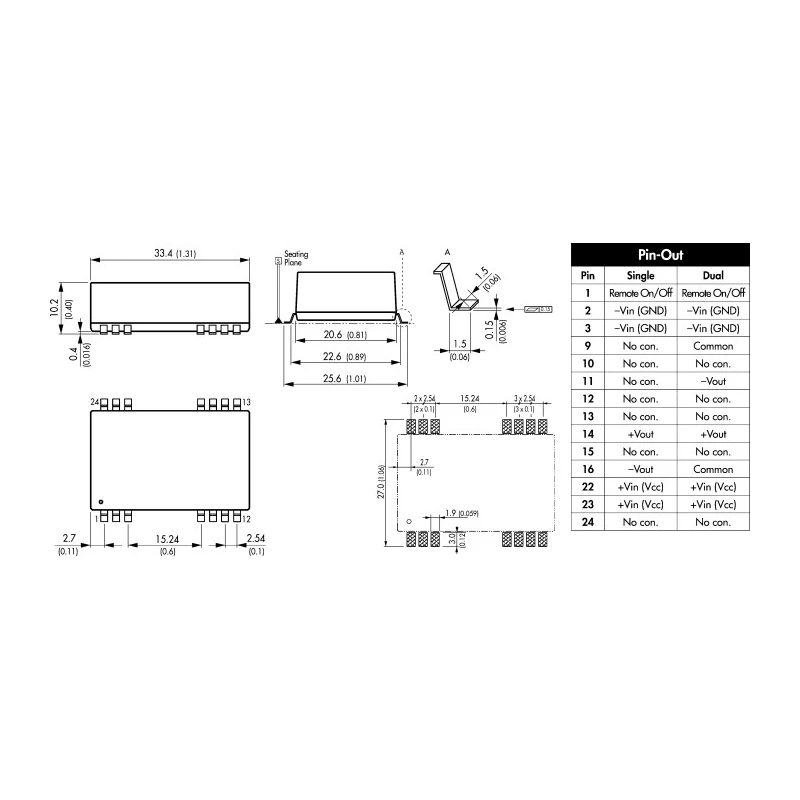

| Length | 32.3mm |
| Model | TES 3-2423WI |
| Depth | 9.7mm |
| Mount Type | Surface |
| Series | TES 3WI |
| Maximum Operating Temperature | 70°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 1000000h |
| Number of outputs | 2 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 24 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 100mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 4:1 |
| Output Voltage 2 | -15V dc |
| Input Ratio 4 | 1 |
| Ultra-wide 4 | 1 input voltage range |
Key Features
- Offers regulated dual output voltage of ±15V DC for reliable operations.
- Compact surface mount design with a low profile of 9.7mm depth and 32.3mm length.
- High isolation voltage of 1.5kV DC ensures electrical safety and noise reduction.
- High efficiency of 81% optimizes power consumption and thermal performance.
- Wide operating temperature range from -40°C to 70°C for harsh environments.
- Short circuit protection enhances device and system reliability.
- Ideal for industrial, electronic, and power management applications.
- MTBF of 1,000,000 hours guarantees long service life and robustness.
Product Description
TRACOPOWER TES 3-2423WI is a compact, high efficiency 3W dual output DC/DC converter designed for surface mount applications. It delivers regulated and isolated ±15V DC outputs with an ultra-wide input voltage range from 9V to 36V DC, making it suitable for a wide variety of power supply requirements. The module features a low profile package (32.3mm length, 9.7mm depth) ideal for space-constrained designs.
With a high isolation rating of 1.5kV DC between input and output, the TES 3-2423WI ensures electrical noise suppression and enhances safety in sensitive electronic circuits. The converter operates reliably across a broad temperature range from -40°C to 70°C, supporting demanding industrial environments. High efficiency of 81% reduces heat generation and improves energy savings.
The device includes features such as short circuit protection and remote On/Off control, contributing to enhanced system reliability and management. It meets industry standards including EN 60950-1, UL 60950-1, and IEC 60950-1, and is suitable for lead-free reflow solder processes compliant with IPC/JEDEC J-STD-020C. Its robust design and 1,000,000 hours MTBF make it ideal for applications in industrial equipment, power supplies, telecommunications, and instrumentation.
Regulated dual output voltage of ±15V DC including isolation. Ultra-wide 4:1 input voltage range (9V to 36V DC) supports various supply configurations. Compact surface mount package with low profile dimensions. Isolation voltage of 1.5kV DC between input and output ensures safety.
High efficiency of 81% minimizes power loss and thermal stress. Wide operating temperature range from -40°C to 70°C. Short circuit protection for reliability and safety. Compliant with major safety standards and lead-free soldering processes.
Designed for industrial, electronic components, and power management applications. High MTBF of 1,000,000 hours ensures long term durability.
The TRACOPOWER TES 3-2423WI DC/DC Converter is ideal for engineers and designers working in industrial electronics, telecommunications, instrumentation, and power supply development. Its reliable performance and compact form factor enable integration into complex systems requiring stable isolated DC outputs.
Browse the Electronics & Electricals category at EnvMart for more DC/DC Converters from TRACOPOWER and other top brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides regulated dual output voltages of ±15V DC.
It has an ultra-wide input voltage range from 9V to 36V DC.
The efficiency of this unit is rated at 81%.
The converter has a length of 32.3mm and a depth of 9.7mm.
It features a high isolation voltage of 1.5kV DC between input and output.
The operating temperature range is from -40°C to 70°C.
This model has two outputs.
It is designed for surface mounting.
The maximum output power is 3W.
Yes, it includes short circuit protection for enhanced reliability.
The mean time between failures (MTBF) is 1,000,000 hours.
It meets industry standards including EN 60950-1, UL 60950-1, and IEC 60950-1.
