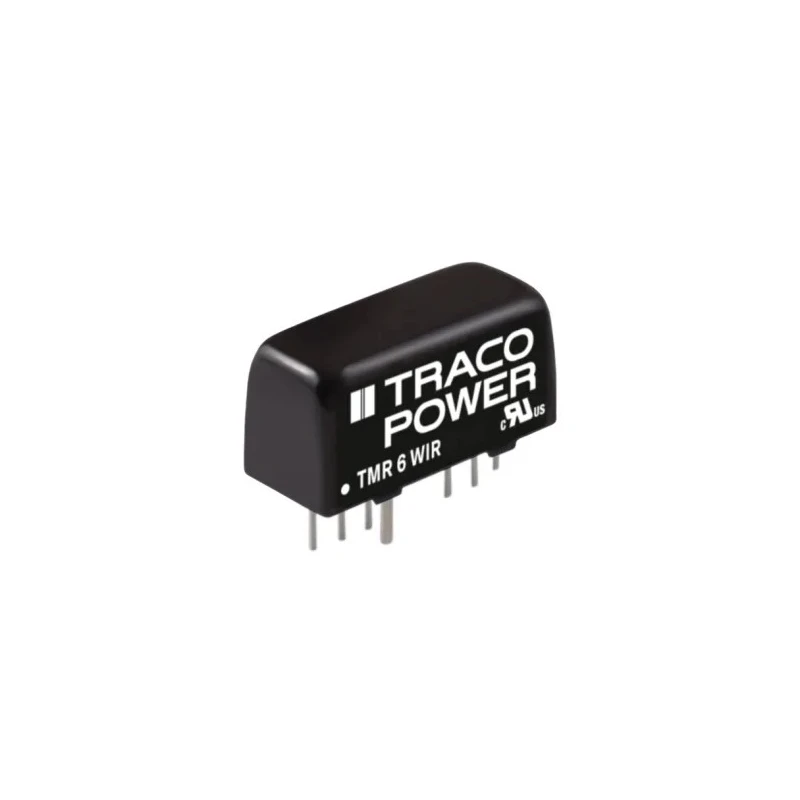

TRACOPOWER DC/DC Converter 24V DC Output, 250 mA, 9-36V DC Input, 6W Through Hole SIP Package TMR 6-2415WIR
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TMR 6WIR DC/DC Converter, 24V dc/ 250 m |
| Brand | TRACOPOWER |
| Efficiency | 87% |
| Length | 21.8mm |
| Model | TMR 6-2415WIR |
| Depth | 11.2mm |
| Width | 9.6mm |
| Mount Type | Through Hole |
| Series | TMR 6WIR |
| Maximum Operating Temperature | +100°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2950000h |
| Number of outputs | 1 |
| Maximum Output Power | 6W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 250mA |
| Isolation Voltage | 3kV dc |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
Key Features
- Provides stable 24V DC output voltage at 250 mA current.
- Wide input voltage range from 9V to 36V DC for versatile applications.
- High efficiency of 87% minimizes power loss.
- Compact SIP package with through hole mounting saving PCB space.
- Isolation voltage of 3kV DC ensures safe operation in sensitive environments.
- Operating temperature from -40°C to +100°C suits various industrial conditions.
- Short circuit protection and current limitation enhance durability.
- Complies with EN 50155 railway standards for stringent industrial use.
Product Description
TRACOPOWER TMR 6-2415WIR DC/DC Converter is designed for reliable voltage regulation in industrial, railway, telecommunications, and automation system applications. It accepts a DC input voltage from 9 to 36V and provides a fixed and isolated 24V DC output at 250 mA with a maximum power rating of 6W.
The product features a compact single in-line package (SIP) with through hole mounting, optimizing printed circuit board space. High efficiency at 87% reduces energy loss, making it suitable for demanding electronic systems.
With a robust isolation voltage of 3kV DC, the converter ensures safe operation in sensitive and harsh environments, including railway electronics that require compliance with EN 50155 standards. It includes built-in current limitation and short circuit protection to enhance longevity and resilience.
Dimensionally, it measures 21.8mm in length, 9.6mm in width, and 11.2mm in depth, allowing versatile installation in compact spaces. The operating temperature range of -40°C to +100°C allows use in diverse climates and conditions. The converter withstands surge voltages up to 50V DC for short durations without damage. Installation should follow a recommended soldering profile of 265°C for a maximum of 10 seconds.
Provides stable 24V DC output voltage at 250 mA current. Wide input voltage range from 9V to 36V DC for versatile applications. High efficiency of 87% minimizes power loss. Compact SIP package with through hole mounting saving PCB space.
Isolation voltage of 3kV DC ensures safe operation in sensitive environments. Operating temperature from -40°C to +100°C suits various industrial conditions. Short circuit protection and current limitation enhance durability.
Complies with EN 50155 railway standards for stringent industrial use. Mean time between failure (MTBF) of 2,950,000 hours guarantees reliability.
This converter is ideal for powering railway electronics, telecommunications infrastructure, and industrial controls needing a compact isolated supply. Its design supports installation in outdoor environments when properly housed, suitable for automation and manufacturing systems requiring reliable DC power conversion.
Explore more products in the DC/DC Converter category at EnvMart for comprehensive solutions in power supply and control.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 24V DC at a current of 250 mA.
It accepts a wide input voltage range from 9V to 36V DC.
The efficiency of this converter is rated at 87%, which helps minimize power loss.
The dimensions of the converter are 21.8mm in length, 9.6mm in width, and 11.2mm in depth.
It features an isolation voltage of 3kV DC, ensuring safe operation in sensitive environments.
The maximum operating temperature for this model is +100°C.
It is designed for through hole mounting, which optimizes PCB space.
This model includes short circuit protection and current limitation to enhance durability.
It is designed for use in industrial, railway, telecommunications, and automation system applications.
The MTBF for this model is 2,950,000 hours, indicating its reliability.
The minimum operating temperature is -40°C, making it suitable for various industrial conditions.
Yes, it complies with EN 50155 railway standards, making it suitable for stringent industrial use.
