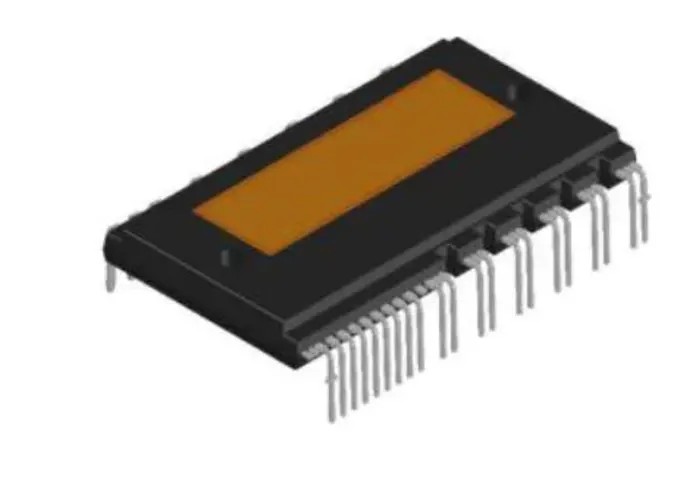

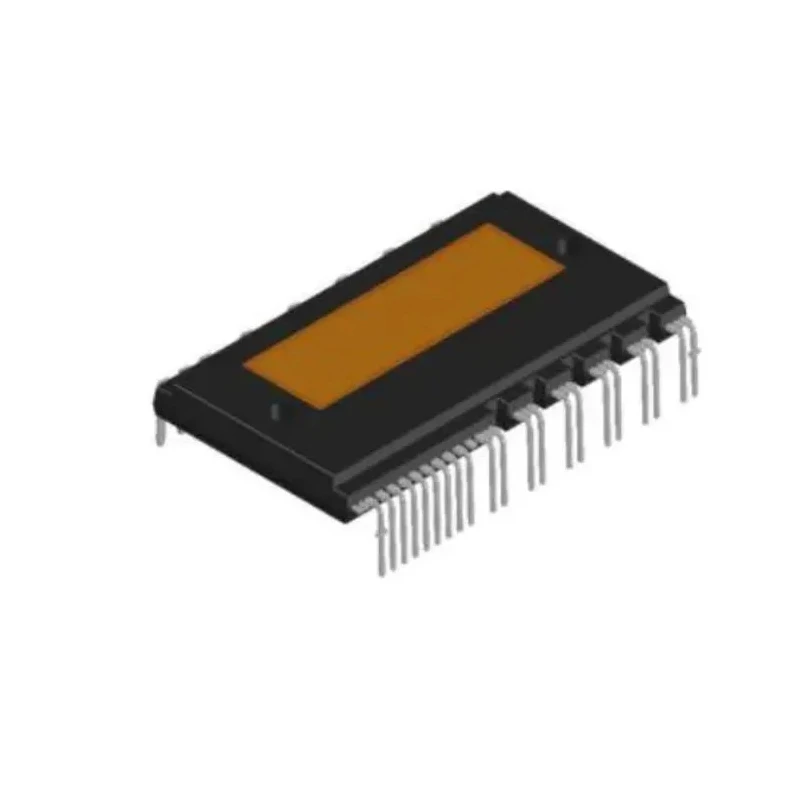

onsemi AC Induction DC Motor Intelligent Power Module 650 V 100 A 39-Pin DIP NFAM5065L4BT
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 5.7mm |
| Length | 54.6mm |
| Model | NFAM5065L4BT |
| Width | 31.1mm |
| Motor Type | AC Induction, DC Motor |
| Mount Type | Through Hole |
| Series | NFAM5065 |
| Configuration | 3 Phase |
| Output Current | 50A |
| Maximum Operating Temperature | 125°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 39 |
| Maximum Collector Emitter Voltage Vceo | 650V |
| Maximum Supply Voltage | 500V |
| Supply Current | 6mA |
| Maximum IGBT Collector Current | 100A |
| Typical Switching Frequency | 20kHz |
Key Features
- Designed for driving permanent magnet synchronous and brushless DC motors.
- Fully integrated inverter module with independent high side gate driver and LVIC.
- Three-phase 3 phase bridge configuration with separate emitter connections for flexibility.
- Includes built-in under voltage protection and integrated bootstrap diodes and resistors.
- Features current sensing of each phase and temperature sensor (VTS) for monitoring.
- Operates at typical switching frequency of 20 kHz and supply current of 6 mA.
- Suitable for 50 A output current and maximum supply voltage of 500 V.
- Compact 39-pin DIP package sized 54.6 mm x 31.1 mm x 5.7 mm.
Product Description
onsemi NFAM5065L4BT is an AC Induction and DC Motor Intelligent Power Module designed for high-performance motor control applications. Featuring a 650 V collector emitter voltage rating and 100 A maximum IGBT collector current, this 39-pin DIP packaged power module integrates six IGBTs in a three-phase bridge configuration with independent drivers for each phase.
The module incorporates an independent high side gate driver, low voltage IC, built-in under voltage protection, and integrated bootstrap diodes and resistors, making it an efficient inverter power module suitable for use with permanent magnet synchronous motors, brushless DC (BLDC) motors, and AC asynchronous motors.
Its design includes separate low-side IGBT emitter connections allowing enhanced flexibility for advanced control algorithms. The module supports current sensing of each phase and includes a temperature sensor (VTS) to monitor device temperature, contributing to reliable operation.
The NFAM5065L4BT operates typically at 20 kHz switching frequency and low supply current of 6 mA. It functions within a broad temperature range from -40°C to 125°C, lending itself well to rigorous industrial and automotive environments, although this specific product is marked as non-automotive standard compliant.
Physical package dimensions (54.6 mm length, 31.1 mm width, 5.7 mm height) make it well-suited for through-hole mounting in motor control circuitry. Designed for driving synchronous, brushless DC, and asynchronous AC motors.
Fully integrated inverter module with independent drivers. Robust 100 A IGBT collector current capability. Safety features include under voltage protection and temperature sensing. High switching frequency enhances motor response control.
Compact DIP package with 39 pins for interfacing. Operates reliably across a wide temperature range. Ideal for industrial motor control and power management applications.
This intelligent power module is suitable for industrial, electronic, laboratory, and power management applications requiring compact, efficient, and flexible motor control solutions. Explore more on semiconductor Power Modules and motor driver ICs for your design and manufacturing needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum collector emitter voltage for the NFAM5065L4BT is 650 V.
This model supports a maximum output current of 50 A.
The typical switching frequency of this power module is 20 kHz.
It is designed for driving AC induction motors, permanent magnet synchronous motors, and brushless DC motors.
The dimensions of this module are 54.6 mm in length, 31.1 mm in width, and 5.7 mm in height.
The supply current for the NFAM5065L4BT is 6 mA.
This module is designed for through-hole mounting.
It operates within a temperature range of -40°C to 125°C.
Yes, it includes built-in under voltage protection and a temperature sensor for monitoring.
This power module has a total of 39 pins.
It features a three-phase bridge configuration with independent drivers for each phase.
The maximum IGBT collector current for the NFAM5065L4BT is 100 A.
