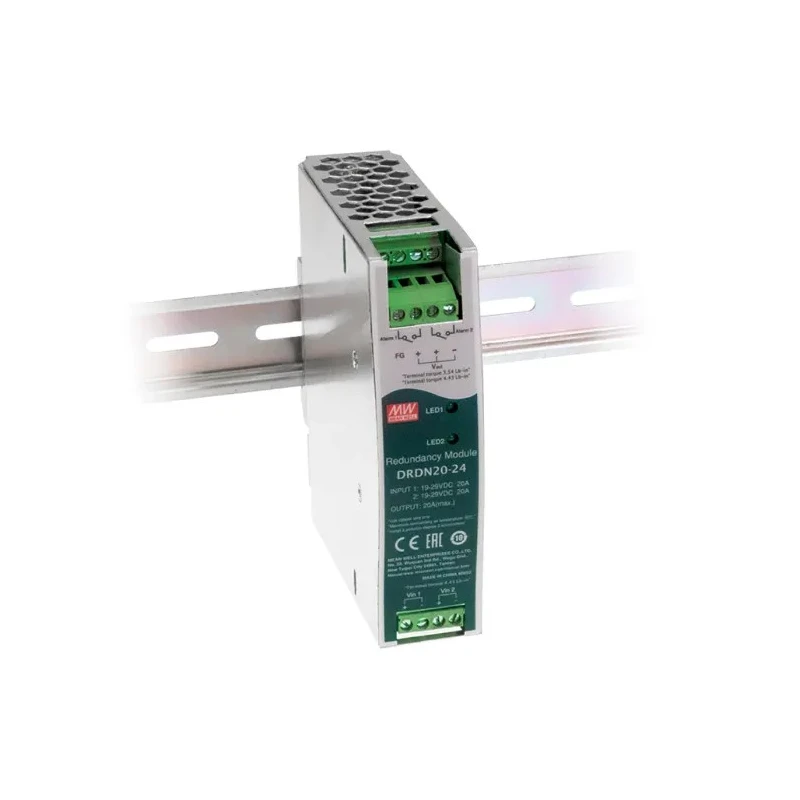

MEAN WELL 20A DIN Rail Redundancy Module for 12V/24V/48V Systems DRDN20-24

MEAN WELL DRDN20-24 redundancy module is designed to improve overall system operation reliability by supporting both 1+1 and N+1 redundancy power system configurations. It features two input channels and one output channel, suitable for 12V, 24V, and 48V DC redundancy operation with an output current capacity of up to 20A.

This module includes built-in DC OK signals and alarm relay contacts which enhance system monitoring and fault notification capabilities in industrial environments.

Operating temperature ranges from -40°C to +80°C with derating applied beyond +60°C, ensuring suitability for extreme temperature conditions. The device is cooled naturally by free air convection and is housed in a 32mm slim width enclosure to optimize space on DIN rails (TS35/7.5 or 15).

Compliance with a broad range of international standards such as UL62368-1, CE, RoHS, and EAC ensures this redundancy module meets demanding safety and electromagnetic compatibility requirements.

Typical applications include industrial control systems, semiconductor fabrication equipment, factory automation processes, and various electro-mechanical apparatus installations. Supports 1+1 and N+1 redundancy system configurations for high availability.

Two input channels and one output channel design. Output current up to 20A for robust power delivery. Wide operating temperature range of -40°C to +80°C. Compact 32mm width for efficient DIN rail installation. Built-in DC OK signal and alarm relay contact for system monitoring.

Free air convection cooling for silent operation. Conforms to UL, CE, RoHS, and EAC standards. Industrial-grade reliability for automation and control applications. Explore more industrial and electronic Power Modules in our catalog for your automation and power management requirements.
