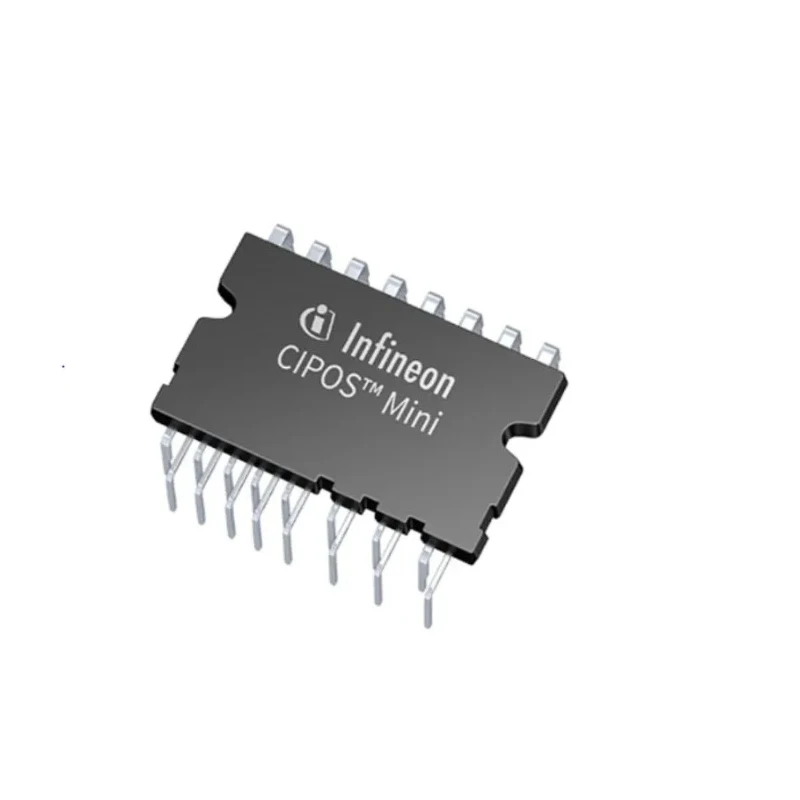

Infineon AC Motor Permanent Magnet Intelligent Power Module, 600 V 15 A 24-Pin DIP IGCM15F60GAXKMA1

Infineon IGCM15F60GAXKMA1 is an AC Motor Permanent Magnet Intelligent Power Module engineered for high reliability and optimized PCB size in motor drive applications. It supports three-phase AC and permanent magnet motor control with a maximum IGBT collector current of 15 A and a voltage rating of 600 V in a 24-pin DIP package. Ideal for industrial variable speed drives, it offers rugged SOI gate driver technology that resists transient and negative voltage disturbances.

This module operates efficiently with a typical switching frequency of 20 kHz and withstands temperature ranges from -40°C to 150°C, ensuring dependable performance in demanding industrial environments.

Key features include reverse conducting IGBTs with monolithic body diodes, over current shutdown capabilities, and under-voltage lockout across all channels to protect the device and connected systems from electrical faults.

Infineon's CIPOS family enhances system cost effectiveness and reliability through integration of power and control components, making this module suitable for applications such as refrigeration, dishwashers, and other motor-driven devices requiring compact and robust solutions.

Supports 3 phase AC and permanent magnet motors for variable speed drives. Maximum collector emitter voltage of 600 V and collector current of 15 A. Typical switching frequency of 20 kHz for efficient motor control. Operates within temperature range of -40°C to 150°C for industrial reliability.

Features reverse conducting IGBTs with monolithic body diode for rugged performance. Includes SOI gate driver technology with stability against transient and negative voltage. Provides over current shutdown and temperature monitoring functions.

Under-voltage lockout available on all channels for protection. Through-hole mount with DIP package ensures easy PCB integration. Complies with automotive standard AEC-Q101 for quality assurance.

This power module is ideal for industrial, manufacturing, electronics, and HVAC motor control applications that demand precise and reliable performance. EnvMart offers this Infineon intelligent Power Module as part of its wide selection of semiconductor and motor driver components.
