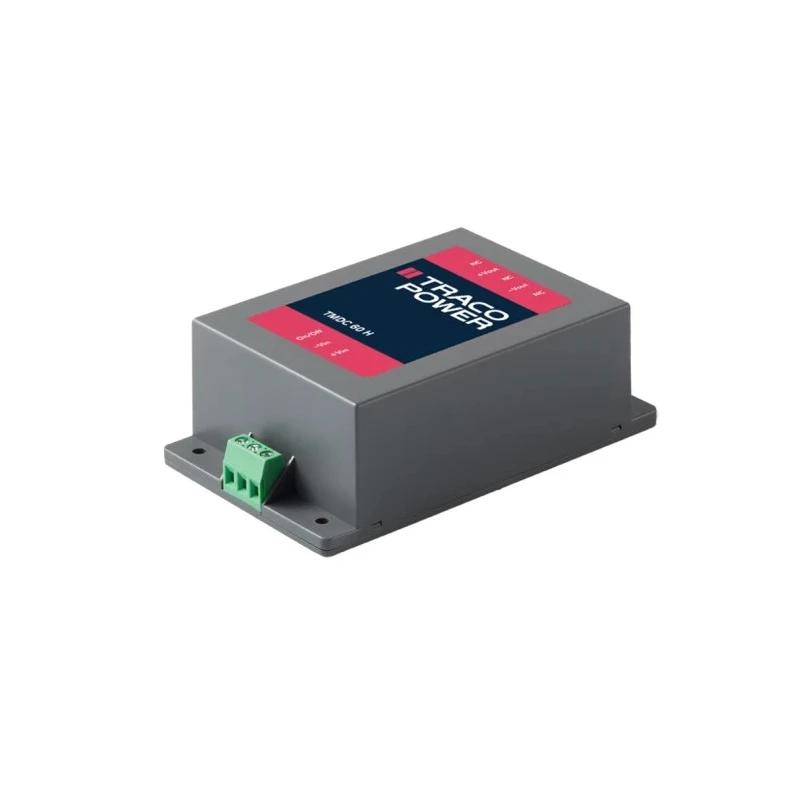

TRACOPOWER DC/DC Converter 12V DC Output, 80-160V DC Input, 60W Power, 5A Current, Encapsulated Chassis Mount TMDC 60-7212H
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TMDC 60H DC/DC Converter, 12V dc/, 160V |
| Brand | TRACOPOWER |
| Efficiency | 0.89% |
| Length | 112mm |
| Model | TMDC 60-7212H |
| Depth | 38mm |
| Gross Weight | 300g |
| Width | 67.8mm |
| Mount Type | Chassis Mount |
| Series | TMDC 60H |
| Maximum Operating Temperature | 75°C |
| Package Type | Encapsulated |
| Minimum Operating Temperature | -40°C |
| MTBF | 218000h |
| Number of outputs | 1 |
| Ripple and Noise | 150mV Pk-Pk |
| Maximum Output Power | 60W |
| Maximum Input Voltage | 160V dc |
| Minimum Input Voltage | 80V |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 5A |
| Isolation Voltage | 3kV |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- High input voltage range from 80 to 160V DC enhances compatibility.
- Encapsulated chassis mount design ensures robust protection in harsh environments.
- Operates efficiently with typical efficiency of 89% reducing heat and saving energy.
- Output current rated at 5A with a maximum output power of 60W for reliable performance.
- Isolation voltage of 3kV AC provides safety and electrical separation between input and output.
- Wide operating temperature range from -40°C up to 75°C suitable for varied industrial conditions.
- Low ripple and noise of 150mV peak-to-peak ensure clean and stable output voltage.
- Output voltage adjustable within ±2% allowing fine tuning for specific application needs.
Product Description
TRACOPOWER TMDC 60-7212H is a high-performance DC/DC Converter designed to provide stable and efficient 12V DC output from a wide input voltage range of 80 to 160V DC. This converter is encapsulated in a robust chassis mount package to withstand harsh industrial and electronic environments with an operating temperature range from -40°C to 75°C.
With a maximum output power of 60W and output current of 5A, it suits applications requiring efficient power delivery and tight voltage regulation. The unit features a reinforced isolation voltage of 3kV AC which ensures user safety by electrically separating input and output circuits.
The device operates with a typical efficiency of 89% which helps minimize heat generation and maximizes power utilization, critical factors for prolonged reliable operation in demanding settings. Ripple and noise are tightly controlled at 150mV peak-to-peak, ensuring high output quality for sensitive electronics.
Output voltage is adjustable within ±2% allowing precise tuning for various use cases. The product is designed with integrated filters to reduce electromagnetic emissions and improve immunity, further enhancing its industrial robustness. It is deployed widely in industrial automation, battery-powered devices, and high-voltage applications requiring space-efficient chassis mounting.
High input voltage range of 80 to 160V DC enhances compatibility. Fully encapsulated chassis mount design protects against environmental stress. Typical 89% efficiency reduces power loss and heat generation. Reinforced isolation voltage of 3kV AC provides enhanced safety.
Operating temperature range from -40°C to 75°C suitable for diverse environments. Low ripple and noise for stable and clean output voltages. Adjustable output voltage for application-specific tuning. Long MTBF of 218000 hours ensures dependable operation.
Integrated filters minimize electromagnetic interference and improve immunity.
This TRACOPOWER DC/DC Converter TMDC 60-7212H is well-suited for industrial automation, power regulation in harsh environments, and applications demanding efficient and reliable DC power supply solutions.
Explore more products in the DC/DC Converter category for versatile industrial and electronic power solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for the TRACOPOWER TMDC 60-7212H is from 80V DC to 160V DC.
This model has a maximum output power of 60W.
The output current rating for this unit is 5A.
The typical efficiency of this converter is 89%.
The dimensions of the TRACOPOWER TMDC 60-7212H are 112mm in length, 67.8mm in width, and 38mm in depth.
This model operates within a temperature range of -40°C to 75°C.
The isolation voltage for this converter is 3kV AC.
The ripple and noise for this unit is specified at 150mV peak-to-peak.
Yes, the output voltage is adjustable within ±2%.
The gross weight of this model is 300g.
This converter is designed for chassis mount installation.
This model is suitable for industrial automation, battery-powered devices, and high-voltage applications requiring efficient DC power supply.
