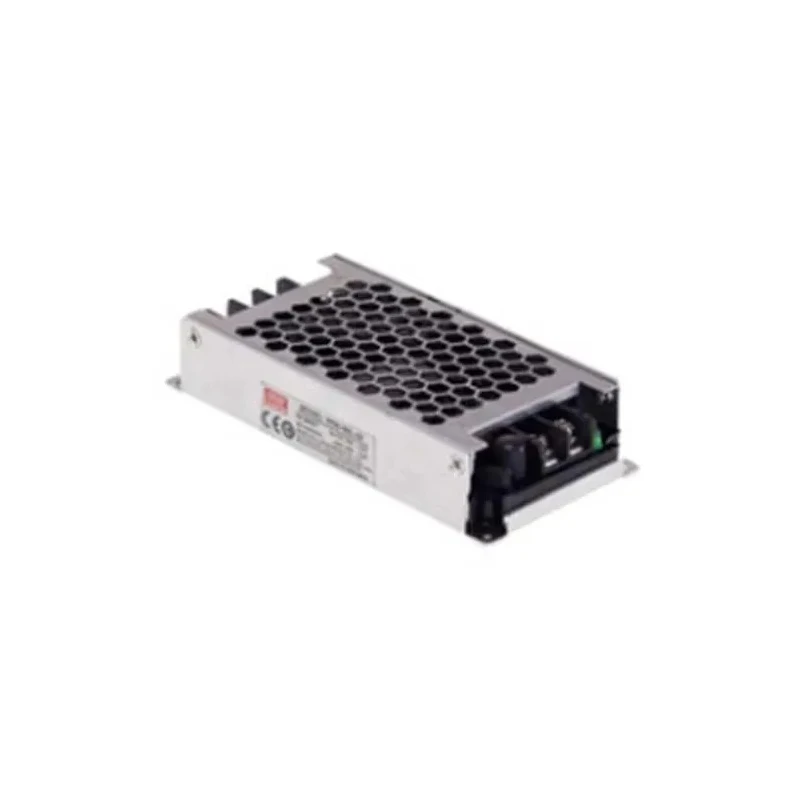

MEAN WELL RSD-60 DC/DC Converter 5V DC, 160V DC Input, 12A Output Current, 60W Power, Chassis Mount, 70°C Max RSD-60H-5

MEAN WELL RSD-60H-5 DC/DC Converter is a compact and reliable power supply module designed to convert high DC voltages from 40V up to 160V to a stable 5V output with a maximum output current of 12A. Its chassis mount design with a low profile height of 25mm makes it ideal for industrial and electronic equipment where space is at a premium.

This unit delivers up to 60 watts of output power at an efficiency rating of 89%, helping reduce energy losses in power conversion processes. It features a wide operating temperature range from -40°C to 70°C, enabling dependable performance in challenging temperature conditions typically found in industrial, communication, and transportation applications.

The RSD-60H-5 offers a high mean time between failures (MTBF) of nearly 594,000 hours, demonstrating excellent durability. It includes protective features such as a constant current limiting circuit and visual LED status indication to assist in system monitoring and protection.

Its 4kV DC isolation voltage safeguards sensitive electronics from high voltage surges and noise. The design complies with EN and IEC standards and is half encapsulated for enhanced safety and cooling efficiency by natural convection.

Typical use cases include power conversion in industrial controls, telecommunications infrastructure, and railway systems requiring compact, efficient, and robust DC/DC converters.

Supports wide input voltage range from 40V to 160V DC. Chassis mount type with compact dimensions of 128mm length, 60mm width, and 25mm depth. Maximum output power of 60W with 89% efficiency. Wide operating temperature range from -40°C to 70°C suitable for harsh environments.

High MTBF of 593,800 hours ensuring long-term reliability. Built-in constant current limiting circuit and LED indicator for power status. Provides 4000V DC isolation voltage for enhanced protection. Compliance with EN/IEC standards and suitable for industrial applications.

Designed with half encapsulated form and cooled by free air convection. Backed by a 3-year warranty for the RSD series. Explore more DC/DC Converters and power supply solutions at EnvMart for your industrial and electronic component needs.
