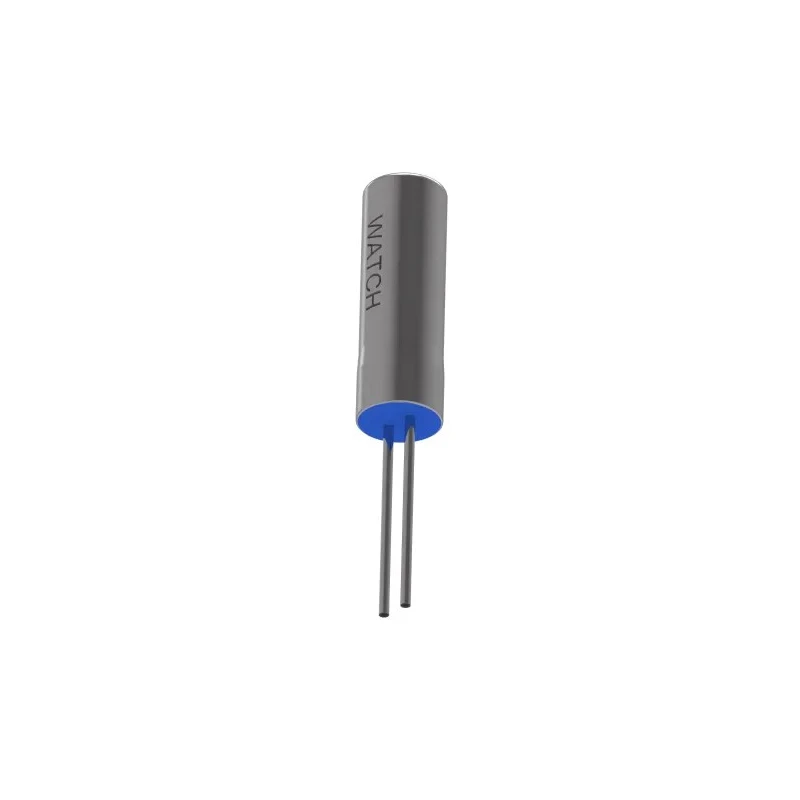

IQD 32.768 kHz Crystal Unit Cylindrical Through Hole 12.5pF Load Capacitance ±15 ppm Frequency Tolerance LFXTAL002996B
Specifications
| Country of Origin | India |
|---|---|
| Brand | IQD |
| Height | 8.2mm |
| Length | 17.2mm |
| Model | LFXTAL002996B |
| Packaging | Bulk |
| Width | 3mm |
| Mount Type | Through Hole |
| Series | Watch |
| Maximum Operating Temperature | 85°C |
| Package Type | Cylindrical |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | REACH, RoHS |
| Pin Count | 2 |
| Standard Frequency | 32.768kHz |
| Load Capacitance | 12.5pF |
| Series Resistance | 50kΩ |
Key Features
- Operates at a standard frequency of 32.768 kHz supporting real time clocks.
- Features a ±15 ppm frequency tolerance for stable performance.
- Has a 12.5 pF load capacitance suitable for embedded devices.
- Compact cylindrical package measuring 17.2 mm length and 3 mm width.
- Operates reliably within a temperature range of -40°C to 85°C.
- Includes 2 mounting pins for secure connection.
- Series resistance is rated at 50 kΩ to maintain signal integrity.
- Complies with REACH and RoHS environmental standards.
Product Description
IQD LFXTAL002996B 32.768 kHz Crystal Unit in a compact cylindrical package provides reliable low frequency oscillation crucial for real time clocks and embedded systems. This through-hole mounted crystal supports a nominal load capacitance of 12.5 pF and maintains a tight frequency tolerance of ±15 ppm, ensuring accurate timing over a wide temperature range from -40°C to 85°C.
The unit's cylindrical form factor measures 17.2 mm in length, 3 mm in width, and 8.2 mm in height, making it ideal for applications where space efficiency is important. It includes 2 pins for through-hole PCB mounting. The series resistance of 50 kΩ supports signal quality and device longevity.
Designed primarily for watch and timing series uses, this crystal unit complies with environmental regulations including REACH and RoHS, supporting sustainable industrial practices.
Operates at a standard frequency of 32.768 kHz suitable for timekeeping. Frequency tolerance is tightly controlled at ±15 ppm for accuracy. Load capacitance of 12.5 pF optimizes oscillator circuit performance. Temperature range of -40°C to 85°C allows industrial and consumer device compatibility.
Compliant with REACH and RoHS ensures safety and environmental adherence. Cylindrical package type promotes easy PCB installation and durability. Two-pin configuration enables secure and stable mounting.
This crystal unit is ideal for use in industrial electronics, precision laboratory instruments, embedded system modules, and consumer electronic devices requiring accurate timekeeping solutions. Its reliable performance and robust design make it suitable for a variety of applications including watches and other timing-dependent devices.
Browse EnvMart's extensive Electronics Components section for more Crystal Units and oscillator solutions tailored to your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The crystal unit operates at a standard frequency of 32.768 kHz, which is commonly used for real-time clocks.
It has a load capacitance of 12.5 pF, which is suitable for optimizing oscillator circuit performance in embedded devices.
The frequency tolerance is ±15 ppm, ensuring stable performance and accurate timing.
It operates reliably within a temperature range of -40°C to 85°C, making it compatible with various industrial and consumer applications.
The cylindrical package measures 17.2 mm in length, 3 mm in width, and 8.2 mm in height, allowing for space-efficient installation.
It features 2 pins for through-hole PCB mounting, ensuring secure and stable connections.
The series resistance is rated at 50 kΩ, which helps maintain signal integrity during operation.
This model complies with REACH and RoHS environmental standards, supporting sustainable industrial practices.
It is designed primarily for use in watch and timing series applications, as well as in industrial electronics and embedded systems requiring accurate timekeeping.
It utilizes a through-hole mounting type, which is suitable for various PCB designs.
The crystal unit is packaged in bulk, making it suitable for larger orders or industrial applications.
The country of origin for this crystal unit is India.
