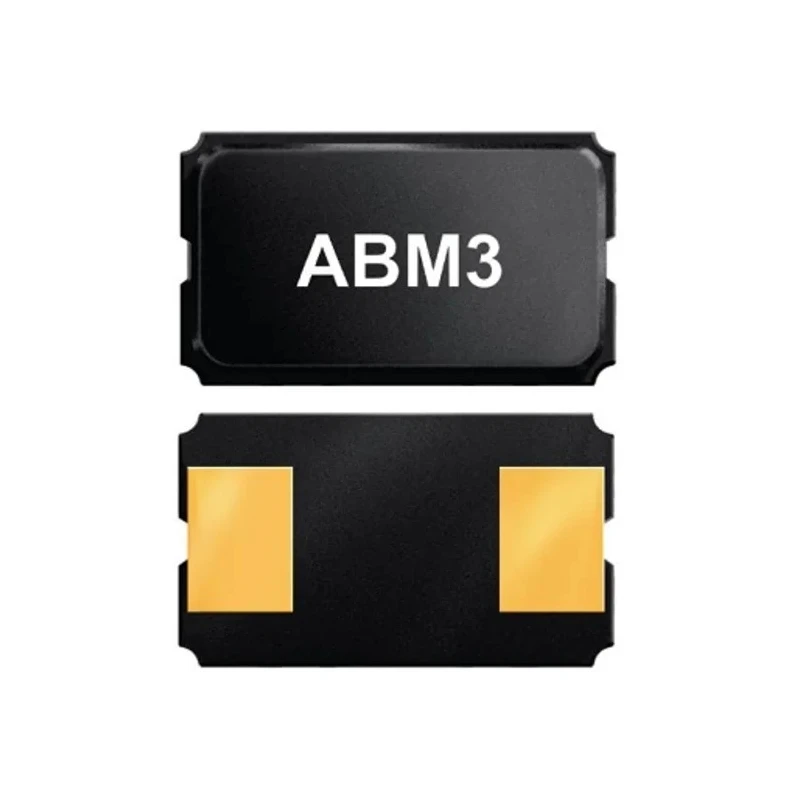

Abracon 30 MHz Crystal Unit Surface Mount 2-Pin 5mm x 3.2mm x 1.3mm ±50 ppm ABM3-30.000MHZ-D2Y-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.3mm |
| Length | 5mm |
| Model | ABM3-30.000MHZ-D2Y-T |
| Packaging | Tape & Reel |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | ABM3 |
| Maximum Operating Temperature | 60°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 30MHz |
| Load Capacitance | 18pF |
| Series Resistance | 25Ω |
Key Features
- Operates at a standard frequency of 30 MHz.
- Features a surface mount type with 2 pins for easy PCB integration.
- Offers a frequency stability of ±50 ppm for reliable signal control.
- Designed to operate within -10°C to 60°C temperature range.
- Equivalent series resistance is 25 Ω to ensure consistent performance.
- Packaged in tape and reel for streamlined automated assembly.
- Compliant with RoHS standards for environmental safety.
- Hermetically sealed ceramic package ensures moisture resistance and high reliability.
Product Description
The Abracon ABM3-30.000MHZ-D2Y-T 30 MHz Crystal Unit is a surface mount 2-pin component designed for precision frequency control applications. Its compact dimensions of 5 mm length, 3.2 mm width, and 1.3 mm height make it suitable for space-constrained PCB layouts. The crystal unit offers a frequency tolerance and stability of ±50 ppm, ensuring reliable performance in demanding electronic circuits.
This crystal unit has a load capacitance of 18 pF and an equivalent series resistance (ESR) of 25 Ω, which contributes to its efficiency in frequency stabilization. Operating within a temperature range of -10°C to 60°C, it is well-suited for various industrial, communication, and wireless applications including cellular telephones, pagers, test equipment, and PCMCIA cards.
Its ceramic surface mount package is hermetically sealed and glass sealed, providing high precision and resistance against moisture ingress, thereby enhancing its reliability and lifespan. The component complies with RoHS environmental regulations, supporting eco-friendly manufacturing processes.
Packaging in tape & reel format facilitates automated placement in manufacturing assembly lines, improving production efficiency. This crystal unit is instrumental in ensuring stable oscillation frequency required in modern electronics across automotive, industrial control, and communications sectors.
Operates at a standard frequency of 30 MHz. Surface mount with 2-pin design for easy PCB assembly. Compact size: 5 x 3.2 x 1.3 mm dimensions. Frequency tolerance ±50 ppm and stability ±50 ppm. Temperature range: -10°C to 60°C operating.
Equivalent series resistance (ESR) at 25 Ω. RoHS compliant for environmental safety. Ceramic, hermetically sealed package for moisture resistance. Packaged in tape & reel for automated PCB manufacturing. Ideal for cellular, pager, wireless, and test equipment.
Explore more electronic components and Crystal Units at EnvMart for your industrial, commercial, and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 30 MHz.
This model has compact dimensions of 5 mm in length, 3.2 mm in width, and 1.3 mm in height.
It operates within a temperature range of -10°C to 60°C.
The equivalent series resistance (ESR) of this crystal unit is 25 Ω.
It is packaged in tape and reel format, facilitating automated assembly in manufacturing processes.
The load capacitance for this crystal unit is 18 pF.
This model features a surface mount type with 2 pins for easy PCB integration.
Yes, it is compliant with RoHS standards for environmental safety.
It is suitable for various applications including cellular telephones, pagers, test equipment, and PCMCIA cards.
The frequency stability of this unit is ±50 ppm, ensuring reliable performance.
The country of origin for this crystal unit is India.
This model belongs to the ABM3 series of crystal units.
