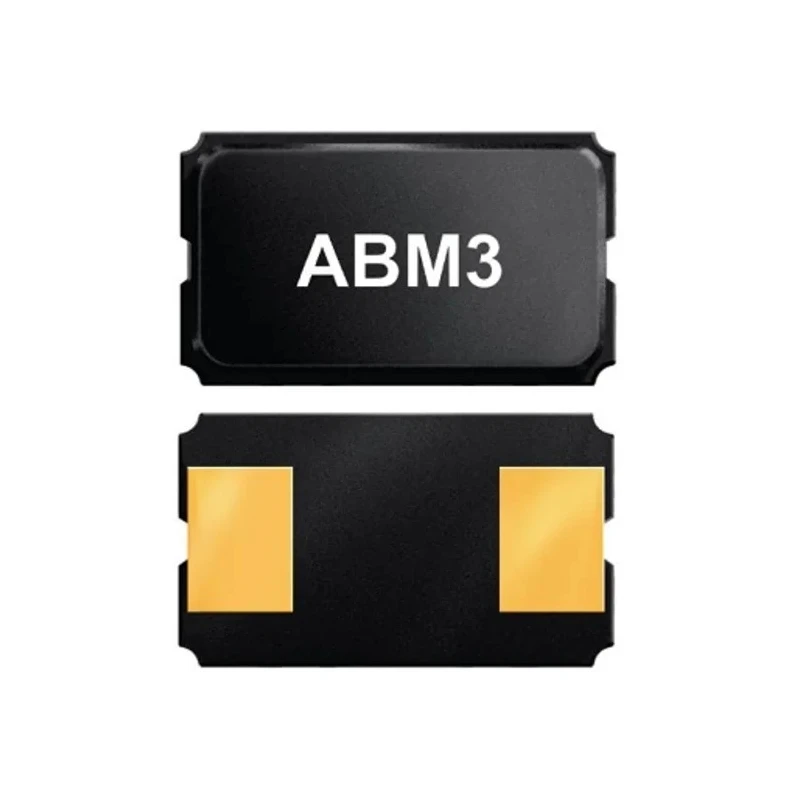

Abracon 16 MHz Crystal Unit ±50 ppm Surface Mount 2-Pin 1.3 mm Height 5 mm Length 3.2 mm Width ABM3-16.000MHZ-B2-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.3mm |
| Length | 5mm |
| Model | ABM3-16.000MHZ-B2-T |
| Packaging | Tape & Reel |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | ABM3 |
| Maximum Operating Temperature | 60°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 16MHz |
| Load Capacitance | 18pF |
| Series Resistance | 40Ω |
Key Features
- The crystal unit features a standard frequency of 16 MHz with ±50 ppm frequency tolerance.
- It is surface mount with a compact 2-pin configuration for ease of PCB integration.
- Equipped with 18pF load capacitance and a series resistance of 40 Ω for stable oscillation.
- Operating temperature range spans from -10°C to 60°C ensuring consistent performance.
- The package type is tape & reel for automated production efficiency and reduced handling risks.
- RoHS compliant, confirming environmentally safe manufacturing standards.
- Hermetically sealed ceramic package ensures moisture resistance and long-term durability.
Product Description
Abracon ABM3-16.000MHZ-B2-T 16 MHz Crystal Unit is a precision surface mount component designed for applications requiring stable frequency control and reliable operation.
This 2-pin crystal unit operates at a standard frequency of 16 MHz with a frequency tolerance of ±50 ppm, suitable for use in cellular phones, pagers, communication, test equipment, PCMCIA, and wireless devices.
The component measures 5 mm in length, 3.2 mm in width, and 1.3 mm in height, optimized for surface mount technology on compact printed circuit boards.
Featuring a load capacitance of 18 pF and a series resistance of 40 Ω, this crystal unit provides consistent oscillation characteristics across the specified temperature range from -10°C to 60°C.
The hermetically sealed ceramic package ensures high precision and moisture resistance, making it ideal for industrial, commercial, and communication electronics applications. This product complies with RoHS directives and is supplied in tape & reel packaging for automated assembly processes, enhancing production efficiency.
The crystal unit offers high precision frequency stability ±50 ppm. Compact and robust surface mount 2-pin package design. Hermetically glass-sealed ceramic package for durability. Operating temperature range from -10°C to 60°C suitable for demanding environments.
RoHS compliant for environmental and safety standards. Supplied in tape & reel packaging facilitating manufacturing automation. This crystal unit is essential for electronic device manufacturers requiring reliable frequency sources in communication, testing, and wireless devices.
Explore more in the Crystal Unit category for a broad range of frequency control components and oscillators at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 16 MHz.
This model measures 5 mm in length, 3.2 mm in width, and 1.3 mm in height.
The operating temperature range spans from -10°C to 60°C.
It features a load capacitance of 18 pF.
The series resistance of this crystal unit is 40 Ω.
It is supplied in tape & reel packaging, which facilitates automated assembly processes.
This model uses surface mount technology.
Yes, this crystal unit complies with RoHS directives, confirming environmentally safe manufacturing standards.
It is suitable for applications in cellular phones, pagers, communication devices, test equipment, PCMCIA, and wireless devices.
This model has a pin count of 2.
This crystal unit belongs to the ABM3 series.
The country of origin for this crystal unit is India.
