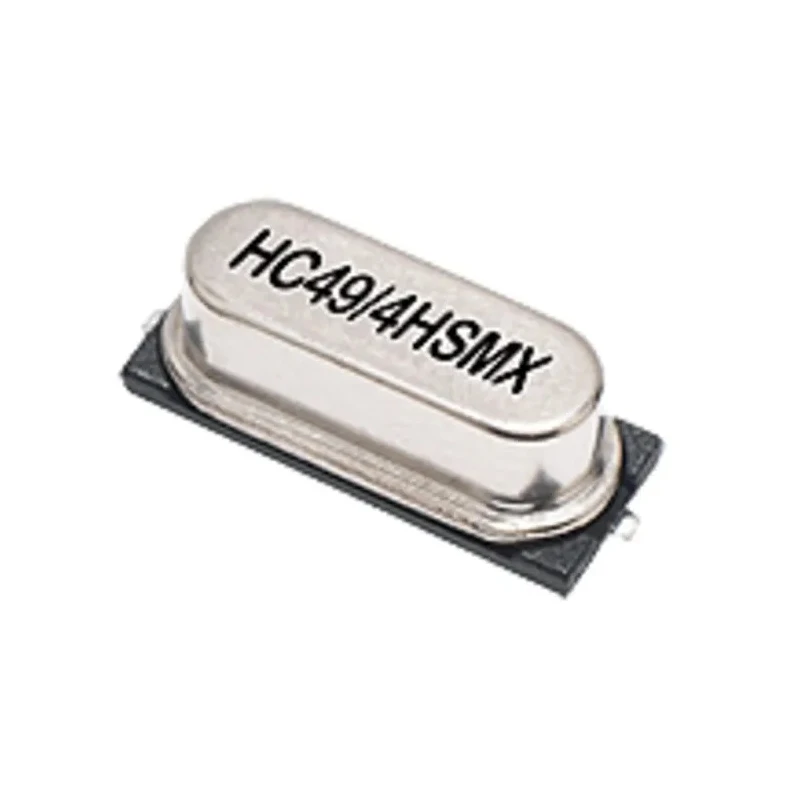

IQD 8 MHz Crystal Unit ±30 ppm Surface Mount 2-Pin 4.3 mm Height 11.4 mm Length 4.9 mm Width LFXTAL011301
Specifications
| Country of Origin | India |
|---|---|
| Brand | IQD |
| Height | 4.3mm |
| Length | 11.4mm |
| Model | LFXTAL011301 |
| Width | 4.9mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 60°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | REACH, RoHS |
| Pin Count | 2 |
| Standard Frequency | 8MHz |
| Load Capacitance | 30pF |
| Series Resistance | 40Ω |
| IQD 8MHz Crystal ±30ppm HC-49-4H-SMX 2-Pin 11.05 x 4.7 x 4mmBrand | IQD |
Key Features
- Standard frequency of 8 MHz ensures reliable oscillation performance.
- Surface mount design with 2 pins facilitates compact PCB integration.
- Series resistance of 40 Ω supports consistent signal quality.
- Resistance welded and hermetically sealed for durability and environmental protection.
- Compliance with REACH and RoHS standards ensures environmental safety.
- Lead wires are mounted on plastic former creating a gull wing mount suitable for automated assembly.
Product Description
IQD LFXTAL011301 is a high-precision 8 MHz Crystal Unit designed for surface mount applications requiring small form factor and reliable frequency stability. Featuring a frequency tolerance of ±30 ppm and a load capacitance of 30 pF, this 2-pin surface mount device is ideal for electronics requiring stable oscillators.
The crystal unit measures 11.4 mm in length, 4.9 mm in width, and 4.3 mm in height, making it suitable for compact PCB designs. Its frequency stability is maintained at ±50 ppm over an operating temperature range from -10°C up to 60°C, making it reliable for various industrial and commercial electronic environments.
This model is resistance welded and hermetically sealed in an inert atmosphere with glass-to-metal seals on leads. The lead wires are mounted on a plastic former which creates a gull wing mount, optimizing it for surface mount technology (SMT) processes. The series resistance of 40 Ω ensures consistent signal integrity.
Compliant with REACH and RoHS standards, the IQD LFXTAL011301 meets environmental regulations and is free from hazardous substances, suitable for worldwide electronic manufacturing.
This crystal unit is widely used in electronic assemblies, oscillators, timing devices, and frequency stabilization applications, especially in industrial electronics, communication devices, and embedded systems.
Standard frequency of 8 MHz ensures reliable oscillation performance. Surface mount design with 2 pins facilitates compact PCB integration. Dimensions are 11.4 mm length, 4.9 mm width, and 4.3 mm height for space-efficient mounting.
Frequency stability is ±50 ppm across operating temperature range from -10°C to 60°C. Series resistance of 40 Ω supports consistent signal quality. Resistance welded and hermetically sealed for durability and environmental protection.
Compliance with REACH and RoHS standards ensures environmental safety. Lead wires are mounted on plastic former creating a gull wing mount suitable for automated assembly. Explore more from IQD Crystal Units and related electronic components in our Electronics Components category at EnvMart for trusted industrial and commercial quality products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 8 MHz, ensuring reliable oscillation performance.
This model measures 11.4 mm in length, 4.9 mm in width, and 4.3 mm in height, making it suitable for compact PCB designs.
The frequency tolerance of this crystal unit is ±30 ppm, providing stable frequency performance.
The load capacitance of this model is 30 pF, which is important for its operation in electronic circuits.
The series resistance of this crystal unit is 40 Ω, which supports consistent signal quality.
The operating temperature range for this model is from -10°C to 60°C, ensuring reliability in various environments.
This crystal unit uses a surface mount design with 2 pins, facilitating compact integration onto PCBs.
Yes, it complies with REACH and RoHS standards, ensuring it is free from hazardous substances and suitable for global manufacturing.
It is resistance welded and hermetically sealed in an inert atmosphere, providing durability and environmental protection.
This model is widely used in electronic assemblies, oscillators, timing devices, and frequency stabilization applications.
The pin count of this crystal unit is 2, which is standard for surface mount applications.
The crystal unit is hermetically sealed, which provides protection against environmental factors, enhancing its reliability in various applications.
