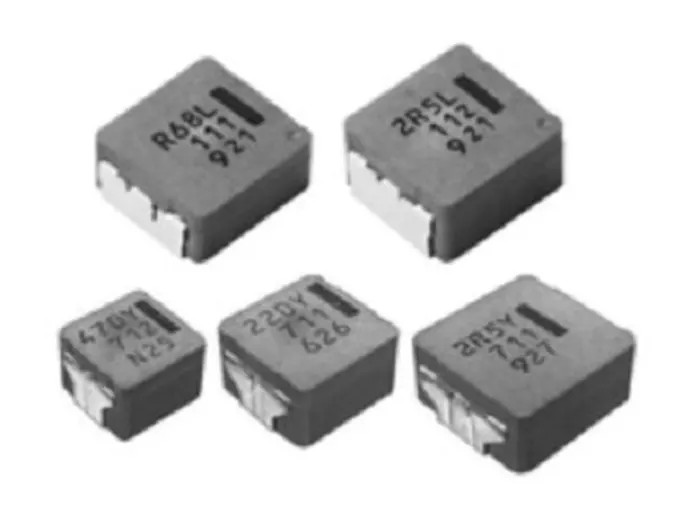

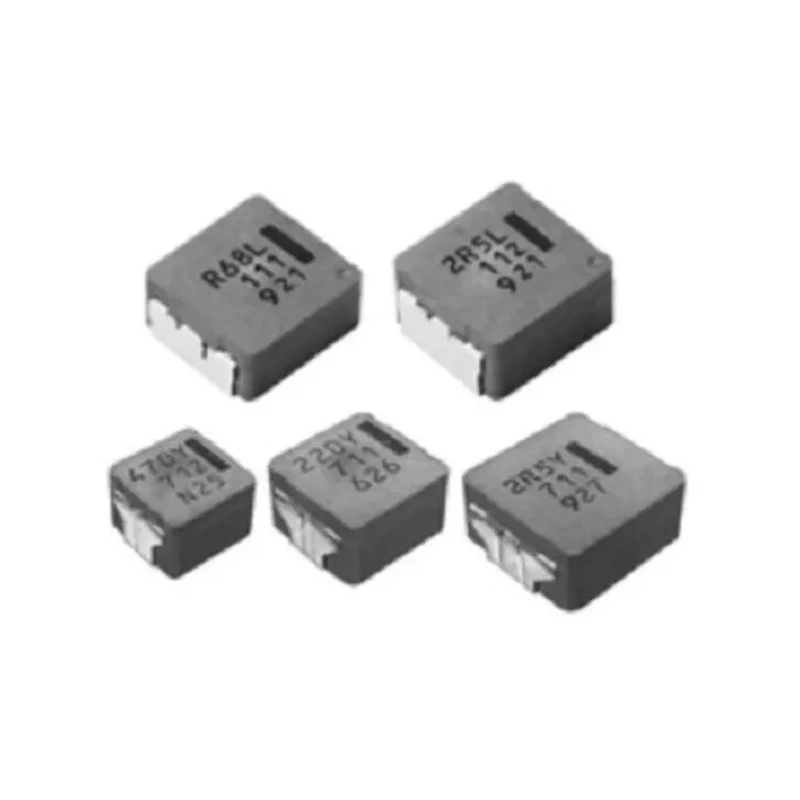

Panasonic Shielded Wirewound Surface Mount Inductor with Metal Composite Core 680 nH ±20% 31.5 A Idc ETQP5M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 5mm |
| Length | 10.9mm |
| Model | ETQP5M |
| Depth | 10mm |
| Packaging | Tape & Reel |
| Series | ETQP5M |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 680nH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 31.5A |
| Pin Count | 2 |
| Maximum DC Resistance | 1.93mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- This inductor has a high heat resistance and high reliability with a metal composite core.
- It features shielded construction to reduce electromagnetic interference.
- The product supports operation up to 150°C including self heat generation.
- It has low audible noise and high vibration resistance for demanding applications.
- The inductance tolerance is ±20% ensuring design accuracy.
- Surface mount termination style allows for compact PCB integration.
- Maximum DC resistance is low at 1.93 milliohms.
- The package includes tape and reel for automated assembly processes.
Product Description
Panasonic ETQP5M is a shielded wirewound surface mount inductor featuring a robust metal composite core designed for high heat resistance and reliable performance. This component provides a nominal inductance of 680 nH with a tolerance of ±20% and supports a maximum DC current rating of 31.5 A, making it suitable for high current applications.
The inductor construction utilizes a wirewound design with molded encapsulation, ensuring durability and stable inductance over temperature variations ranging from -40°C to 150°C. Its shielded construction minimizes external electromagnetic interference, which is critical in sensitive electronics and power management circuits.
This model is supplied in a tape and reel package facilitating automated PCB assembly. The surface mount termination style complements compact and high-density electronic designs. The low DC resistance of 1.93 milliohms reduces power losses and enhances efficiency.
ETQP5M meets the automotive AEC-Q200 standard, suitable for automotive and industrial electronics requiring high reliability and stability. It offers a maximum self-resonant frequency of 100 kHz, making it effective in noise filtering applications across various electronic drive circuits operating under high temperature and peak current conditions.
This inductor is designed for industrial, automotive, electronic component manufacturing, and power supply applications. It is ideal for applications needing high bias current handling, thermal stability, and vibration resistance.
Its shielded and molded design reduces audible noise and electromagnetic interference. Packaging in tape and reel enables efficient assembly in mass production environments. Panasonic brand ensures quality and performance reliability for professional electronic manufacturing.
Explore more high-performance surface mount inductors like the Panasonic ETQP5M series in the Surface Mount Inductors category of EnvMart for your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal inductance of this model is 680 nH with an inductance tolerance of ±20%.
The maximum DC current rating for the ETQP5M is 31.5 A.
This inductor has a height of 5 mm, a length of 10.9 mm, and a depth of 10 mm.
The ETQP5M can operate at a maximum temperature of 150°C.
It features a metal composite core designed for high heat resistance and reliability.
The shielded construction minimizes external electromagnetic interference, which is critical for sensitive electronics and power management circuits.
The maximum self-resonant frequency of this inductor is 100 kHz.
This model has a maximum DC resistance of 1.93 milliohms.
The termination style of this inductor is surface mount, allowing for compact PCB integration.
This inductor meets the RoHS standards and the automotive AEC-Q200 standard.
The ETQP5M is supplied in a tape and reel package, facilitating automated PCB assembly.
This inductor is designed for industrial, automotive, electronic component manufacturing, and power supply applications.
