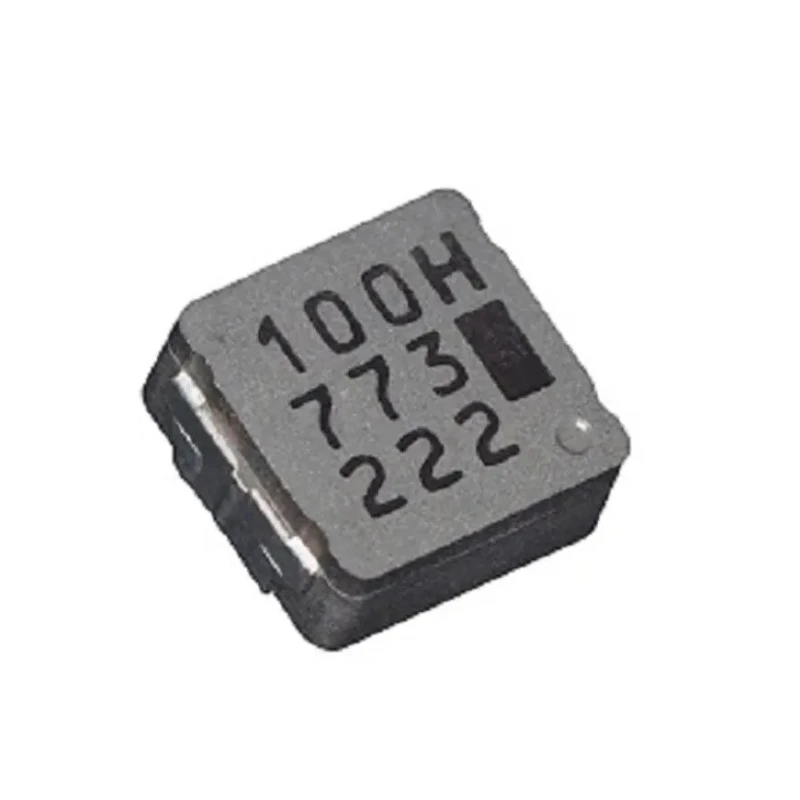

Panasonic Shielded Wirewound Surface Mount Inductor with Metal Composite Core 2.2 μH ±20% 5.2 A Idc ETQP3M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 3mm |
| Length | 5.5mm |
| Model | ETQP3M |
| Depth | 5mm |
| Packaging | Tape & Reel |
| Series | ETQP3M |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 2.2μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 5.2A |
| Pin Count | 2 |
| Maximum DC Resistance | 21.45mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- The inductor is constructed with a metal composite core providing high heat and vibration resistance.
- Suitable for operation in temperatures ranging from -40°C to 150°C.
- Features shielded construction to reduce electromagnetic interference.
- Offers low audible noise making it ideal for noise-sensitive applications.
- Packaged in tape and reel format for automated machine insertion.
- Compliance with automotive standard AEC-Q200 ensures reliability in automotive applications.
- Compact surface mount design with physical dimensions 5.5 mm length, 5 mm depth, and 3 mm height.
- Maximum DC resistance is 21.45 mΩ contributing to efficient power operation.
Product Description
Panasonic ETQP3M2R2HFP shielded wirewound surface mount inductor offers 2.2 μH inductance with tight tolerance of ±20% and can sustain a maximum DC current of 5.2 A. Designed with a metal composite core, this inductor ensures high heat resistance and reliability under challenging industrial and automotive conditions.
The inductor's shielded construction minimizes electromagnetic interference, making it suitable for sensitive electronic circuits. Its compact surface mount package measures 5.5 mm in length, 5 mm in depth, and 3 mm in height, enabling use in compact PCB layouts.
Operating temperature range from -40°C to 150°C and compliance with AEC-Q200 automotive standards demonstrate its suitability for automotive, industrial, and high-reliability applications. The wirewound construction and moulded design provide excellent inductance stability, low audible noise, and high vibration resistance.
This component is ideal for noise filtering and high temperature operation requiring peak current handling. It comes tape and reel packaged to support automated manufacturing processes and enhance production efficiency.
The inductor features a metal composite core offering stability and durability. Suitable for automotive and industrial PCB assemblies respecting AEC-Q200 standards. Compact surface mount form factor supports modern electronics design.
High maximum DC current rating of 5.2 A allows for demanding power applications. Low DC resistance of 21.45 mΩ reduces losses and enhances performance. Wide operating temperature range enables use in harsh environments. Shielded design controls electromagnetic noise emissions.
RoHS compliance ensures environmentally friendly manufacturing. Tape and reel packaging aids automated insertion processes.
Panasonic inductors are trusted components in electronic, automotive, manufacturing, industrial, and HVAC applications. Explore more high-quality passive components and Surface Mount Inductors on EnvMart for reliable and efficient electronics assembly.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 2.2 μH with a tolerance of ±20%.
The maximum DC current rating for this inductor is 5.2 A.
It operates within a temperature range of -40°C to 150°C.
The maximum DC resistance is 21.45 mΩ, contributing to efficient power operation.
It features a metal composite core that provides high heat and vibration resistance.
This inductor is packaged in tape and reel format, suitable for automated machine insertion.
It complies with the automotive standard AEC-Q200, ensuring reliability in automotive applications.
The inductor measures 5.5 mm in length, 5 mm in depth, and 3 mm in height.
It features a wirewound construction, which provides excellent inductance stability.
This model is suitable for automotive, industrial, and high-reliability applications.
The shielded construction of this inductor minimizes electromagnetic interference, making it suitable for sensitive electronic circuits.
The termination style of this model is surface mount.
