Texas Instruments Operational Amplifier 200 MHz Through Hole MDIP 8-Pin 36V LM7171BIN/NOPB

Free Delivery in India | Lowest Global Shipping Charges

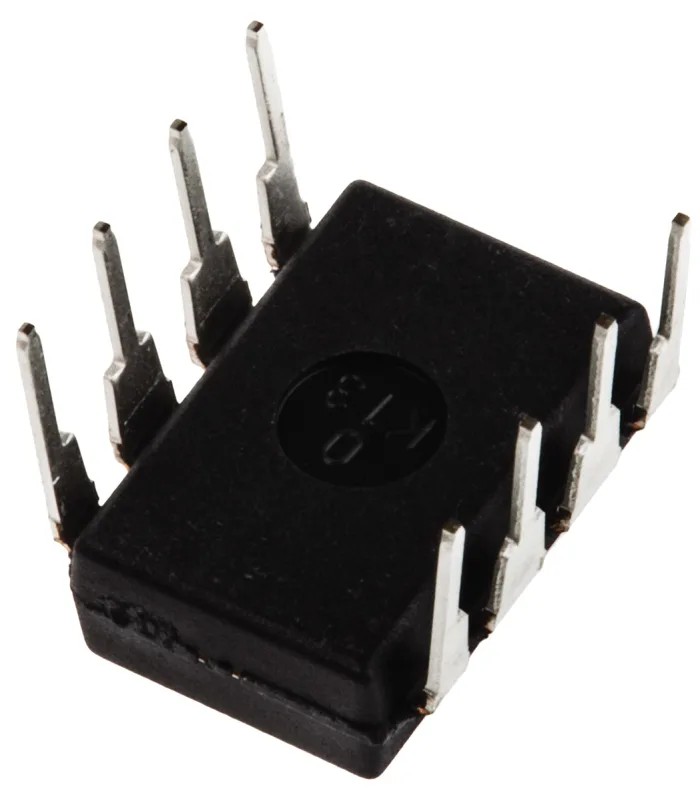

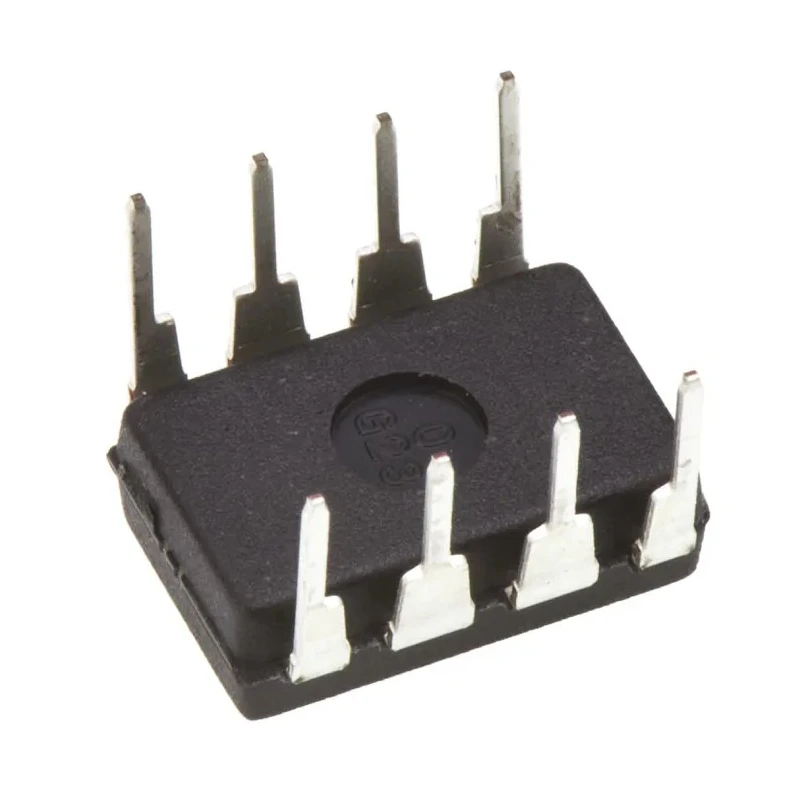

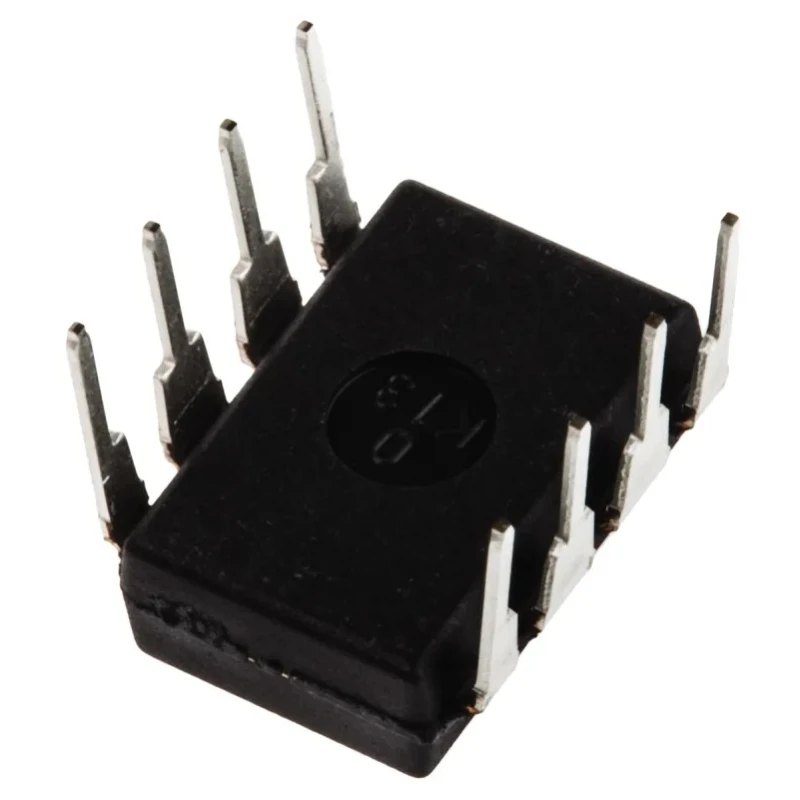

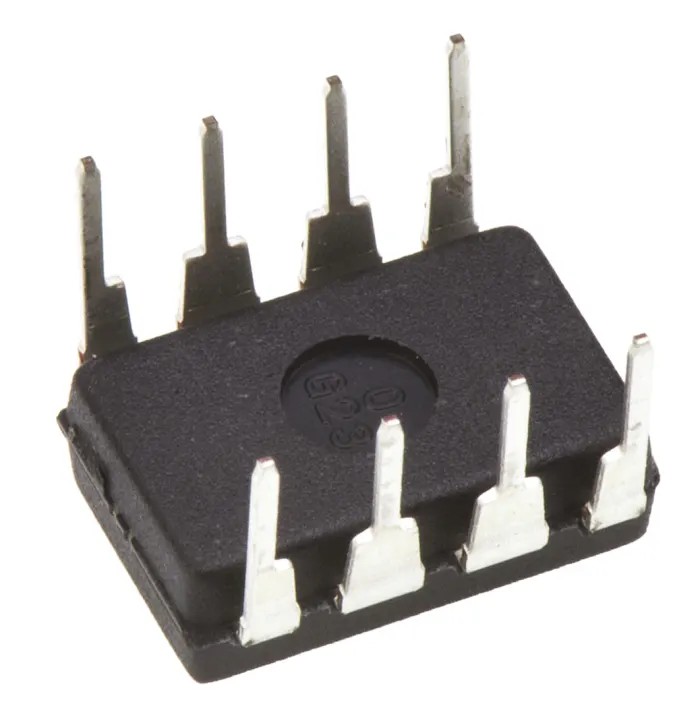

Texas Instruments Operational Amplifier 200 MHz Through Hole MDIP 8-Pin 36V LM7171BIN/NOPB

Name: Texas Instruments Operational Amplifier 200 MHz Through Hole MDIP 8-Pin 36V LM7171BIN/NOPB
Brand: Texas Instruments
SKU: 413770
Price: 20.22 USD
Availability: InStock



Category Operational Amplifier Brand Texas Instruments Condition New

Specifications

Country of Origin	United States
Brand	Texas Instruments
Height	3.3mm
Length	9.27mm
Model	LM7171BIN/NOPB
Width	6.35mm
Mount Type	Through Hole
Series	LM7171
Output Current	105mA
Maximum Operating Temperature	85°C
Package Type	MDIP
Minimum Operating Temperature	-40°C
Number Of Channels	1
Standards/Approvals	RoHS
Pin Count	8
Maximum Supply Voltage	36V
Minimum Supply Voltage	5.5V
GBP - Gain Bandwidth Product	200MHz
Input Bias Current	12 μA
Vos - Input Offset Voltage	7 mV
Slew Rate	4100V/μs
Input Offset Current	6 μA

Key Features

Features a gain bandwidth product of 200 MHz for fast signal amplification.
Operates on a supply voltage range of 5.5V to 36V ensuring wide compatibility.
Low input offset voltage of 7 mV enhances accuracy in sensitive applications.
Designed for through-hole mounting in a miniature dual in-line package.
Supports a slew rate of 4100 V/μs for rapid response to input changes.
Single channel amplifier with an output current of up to 105 mA.
Operates reliably over temperature range from -40°C to 85°C.
Complies with RoHS standards for environmental safety.

Product Description

Texas Instruments LM7171BIN/NOPB Operational Amplifier is a high-speed, high-performance amplifier designed for precision signal processing applications. Featuring a gain bandwidth product of 200 MHz, it provides fast and accurate signal amplification in an 8-pin Mini Dual In-line Package (MDIP), enabling through-hole mounting for ease of integration in various electronic systems.

Operating on a supply voltage range between 5.5V and 36V, the amplifier accommodates diverse power conditions. Its low input offset voltage of 7 mV and input bias current of 12 μA ensure minimal signal distortion, making it suitable for sensitive instrumentation and control systems.

The device boasts a remarkable slew rate of 4100 V/μs, allowing rapid changes to input signals to be followed closely, critical in high-speed applications such as industrial automation and communications equipment. Supporting single channel operation with an output current capacity of 105 mA, it delivers robust drive capabilities while maintaining operational stability over a temperature range from -40°C to 85°C.

RoHS compliance guarantees environmental safety and adherence to worldwide regulatory standards. Manufactured in the United States, the LM7171 series components ensure reliable performance and quality manufacturing.

This operational amplifier fits a variety of industrial, laboratory, electronics, and manufacturing applications requiring high bandwidth, precision amplification, and durable construction. Its compact 9.27 mm length, 6.35 mm width, and 3.3 mm height make it adaptable to space-constrained circuit designs.

Gain bandwidth product: 200 MHz. Supply voltage range: 5.5V to 36V. Input offset voltage: 7 mV. Input bias current: 12 μA. Slew rate: 4100 V/μs. Output current: 105 mA. Operating temperature: -40°C to 85°C. Package: 8-pin MDIP, through hole mount.

RoHS certified. Explore more high-performance Operational Amplifiers and electronic components at EnvMart, your reliable partner for industrial and laboratory-grade electronics.
