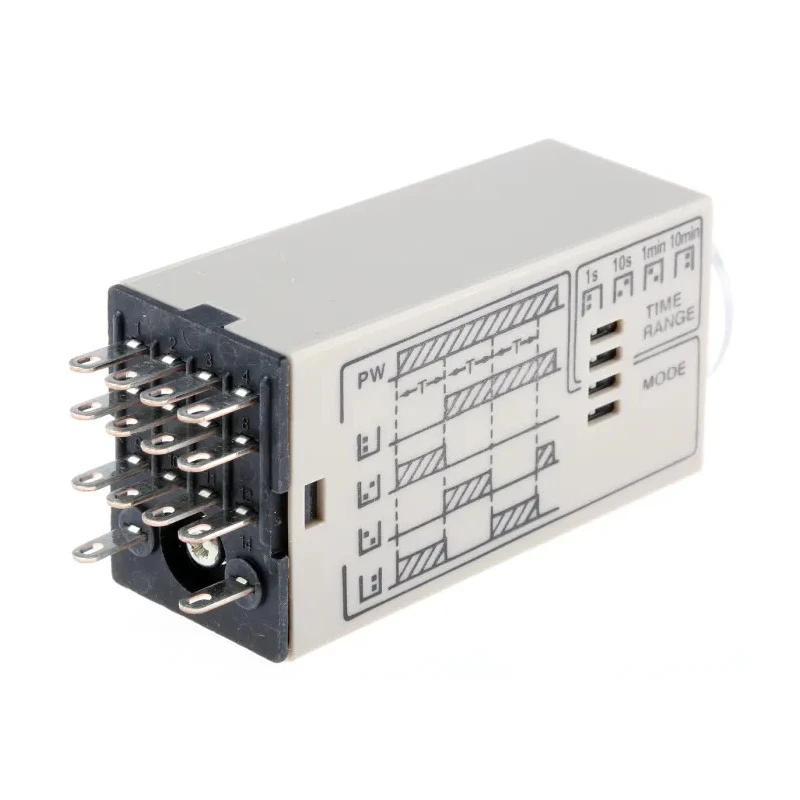

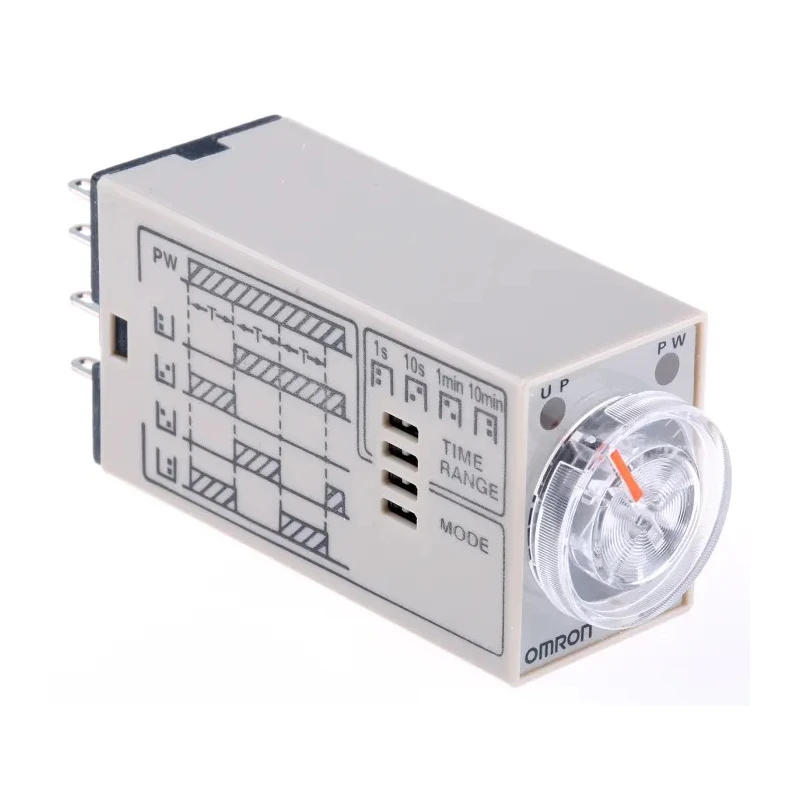

Omron DIN Rail Panel Mount Timer Relay 200-230 VAC 3A 4PDT Multifunction H3YN-4 AC200-230

The Omron H3YN-4 AC200-230 timer relay is a precision multifunctional timer designed for industrial automation and control applications. Featuring a 4PDT output contact configuration, this solid-state device operates reliably within a supply voltage range of 200 to 230 VAC at 50/60 Hz. It offers a flexible timing range from 0.1 seconds to 10 minutes, accommodating short interval processes to longer delay needs.

Its multifunction operating modes include ON delay, interval timing, flicker OFF start, and flicker ON start, allowing tailored control for diverse industrial tasks. The compact 14-pin package measures 63 mm height, 21.5 mm width, and 28 mm length, optimized for space-saving DIN rail or panel mounting installations in control panels.

Rated to handle a contact current of 3 A at 250 VAC (resistive load), the relay delivers robust switching capability with an electrical lifespan of 200,000 operations, ensuring durability under continuous use. The IP40 rating protects against solid objects greater than 1mm, suitable for industrial environments where dust exposure is expected.

The device functions efficiently across a temperature range of -10°C to 50°C, making it ideal for varied climate conditions commonly found in manufacturing, packaging, material handling, and process control industries. Its socket terminal type enhances ease of wiring and maintenance.

This timer relay supports ON delay, interval, flicker OFF start, and flicker ON start timing modes. The time range of 0.1 seconds to 10 minutes allows precise process timing control. Compact design facilitates installation in tight control panel spaces.

4PDT contacts rated at 3A deliver reliable switching of industrial loads. Electrical life expectancy of 200,000 operations ensures extended product lifespan. Socket type terminals enable efficient wiring and replacement.

IP40 protection rating enhances device durability in industrial settings. Operating temperature range from -10°C to 50°C supports diverse environments.

Common applications include conveyor belt control for optimized material transport, pump cycle management in water and chemical treatment systems, timed lighting circuits for energy efficiency, and synchronization of production line equipment in assembly and packaging processes. The Omron H3YN-4 AC200-230 is a reliable component for automated industrial control requiring precise and versatile timing functions.
