TDK B32529 Series Film Capacitor 100 nF 40V AC 63 V DC Through Hole 2-Pin B32529C0104J000

Free Delivery in India | Lowest Global Shipping Charges

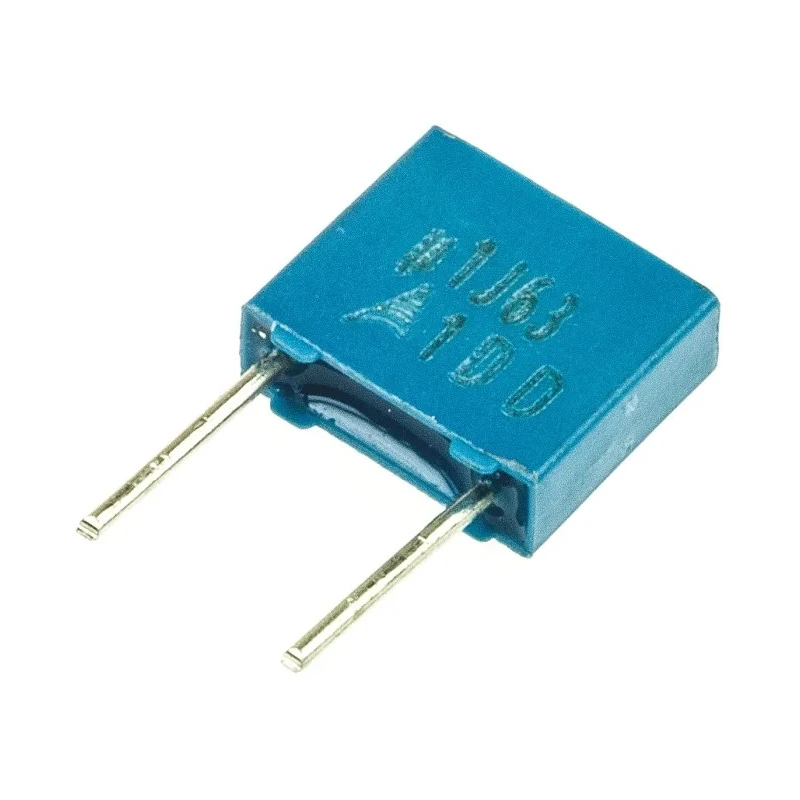

TDK B32529 Series Film Capacitor 100 nF 40V AC 63 V DC Through Hole 2-Pin B32529C0104J000



Category Electronic Components, Power & Connectors Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	6.5mm
Length	7.2mm
Model	B32529C0104J000
Width	2.5mm
Mount Type	Through Hole
Series	B32529
Maximum Operating Temperature	125°C
Capacitance	100nF
Standards/Approvals	RoHS, UL
Pin Count	2
Rated AC Voltage	40V ac
Rated DC Voltage	63V dc
Lead Pitch	5mm
Lead Diameter	0.5mm
Automotive Standard	AEC-Q200 Rev D

Key Features

Constructed using stacked-film technology for high pulse strength.
Plastic case sealed with epoxy resin compliant to UL 94 V-0 flammability standard.
Automotive grade complying with AEC-Q200 Rev D standard.
Lead pitch of 5 mm with 0.5 mm lead diameter for secure mounting.
Rated maximum operating temperature of 125°C for reliability under harsh conditions.
Compact dimensions of 7.2 mm length, 6.5 mm height, and 2.5 mm width.
Typical applications include blocking, coupling, decoupling, bypassing, and radio frequency interference (RFI) suppression in automotive circuits.
Compliant with RoHS and UL standards ensuring quality and safety.

Product Description

The TDK B32529C0104J000 Film Capacitor is a high-quality passive electronic component designed for through hole mounting applications, providing a nominal capacitance of 100 nF with rated AC voltage of 40V and DC voltage of 63 V. Its compact size and robustness make it suitable for demanding automotive and industrial environments.

Featuring stacked-film technology, this capacitor offers excellent high pulse strength and high contact reliability. The plastic casing is sealed with epoxy resin rated UL 94 V-0, ensuring enhanced flame retardance and mechanical protection. Designed to meet the stringent automotive qualification of AEC-Q200 Rev D, it is highly reliable and suitable for integration into automotive control systems and other industrial electronics requiring stable filtering and noise suppression.

With a lead pitch of 5 mm and leads with 0.5 mm diameter, the B32529C0104J000 facilitates secure and easy insertion into printed circuit boards (PCBs). Operating reliably up to a maximum temperature of 125°C, it maintains performance stability under elevated thermal loads.

Its nominal size is compact with dimensions of 7.2 mm length, 6.5 mm height, and 2.5 mm width, fitting densely packed circuits. This film capacitor is widely used for general blocking, coupling, decoupling, bypassing, and radio frequency interference (RFI) applications, especially in automotive electronics.

Constructed with high pulse strength stacked-film technology for durability. Plastic epoxy resin case ensures flame retardance and mechanical protection. Conforms to automotive AEC-Q200 Rev D standards for reliability. Easy PCB mounting with 5 mm lead pitch and 0.5 mm lead diameter.

Maximum operating temperature of 125°C suitable for harsh environments. Certified compliant with RoHS and UL safety standards. Typical use in automotive filtering, coupling, and noise suppression circuits.

This capacitor is ideal for industrial, automotive, and electronics manufacturing sectors requiring robust, compliant components. It is supplied ready for insertion, improving production efficiency in PCB assembly.
