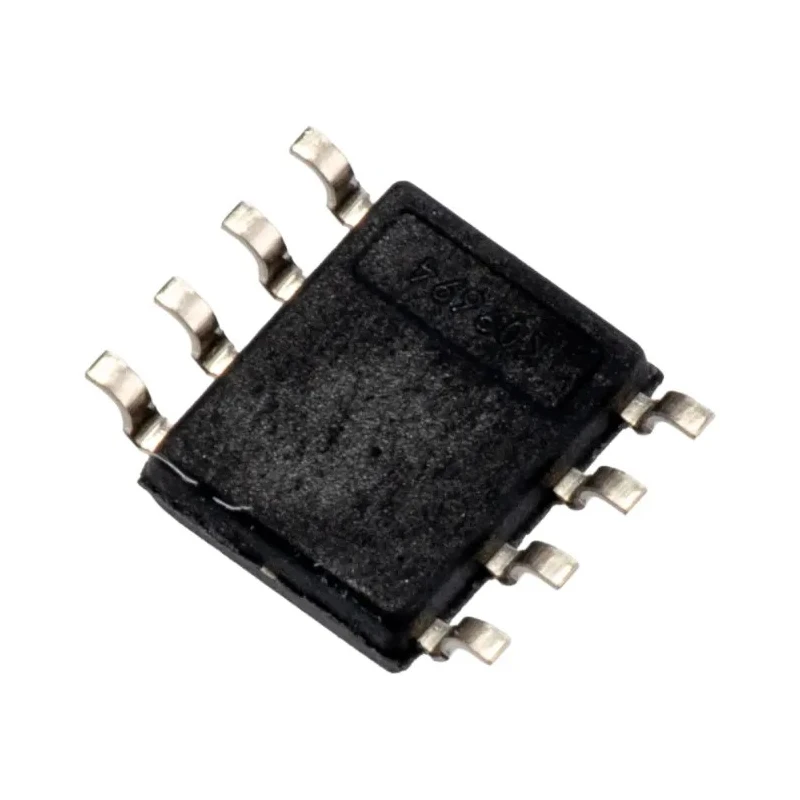

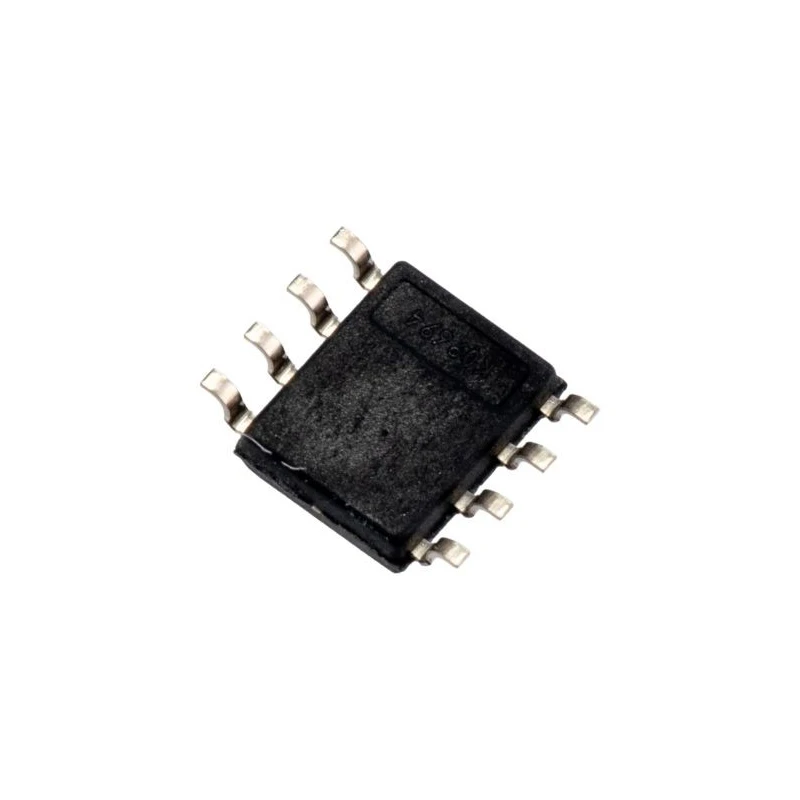

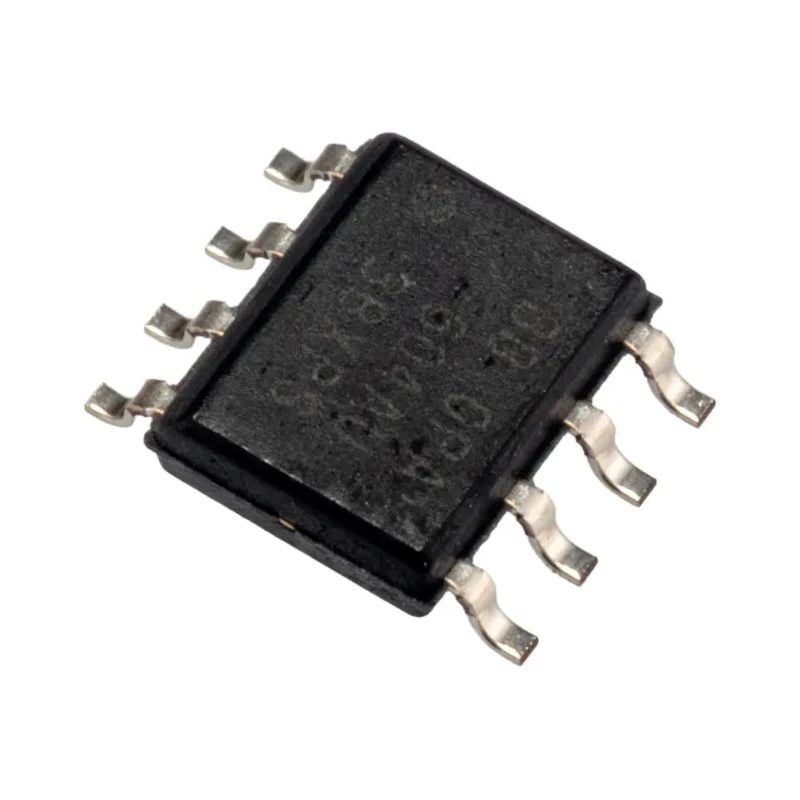

Texas Instruments Operational Amplifier 20 MHz 8-Pin 25V SOIC OPA604AU

The Texas Instruments OPA604AU is a high-performance operational amplifier featuring a 20 MHz gain bandwidth product and housed in a compact 8-pin SOIC surface mount package. Designed as a JFET input op amp, it provides low input bias current and excellent input offset specifications, making it ideal for precision analog signal processing in industrial, laboratory, and electronic instrumentation applications.

This device operates with a supply voltage range from 4.5 V to a maximum of 25 V, offering versatility across a broad range of power conditions. The slew rate of 25 V/μs facilitates fast response times, making the OPA604AU suitable for applications requiring dynamic signal amplification. Its input offset voltage of ±5 mV and low input bias current of 50 pA ensure accuracy and stability in sensitive circuits.

The operational amplifier supports an output current of up to 35 mA, enabling it to drive moderate loads effectively. Its operating temperature range of -25°C to 85°C provides robustness for use in various environments, including industrial and commercial electronics. Manufactured to RoHS compliance standards, the OPA604AU aligns with environmental regulations.

The 8-pin SOIC package measures 4.9 mm in length, 3.91 mm in width, and 1.58 mm in height, supporting compact PCB layouts. As a single channel amplifier within the OPA604 series, it caters to specialized analog applications requiring precision and reliability.

Common application areas include industrial signal conditioning, laboratory instrumentation, audio electronics, and communication equipment. This operational amplifier enables designers to achieve enhanced signal fidelity and system performance.

Operates with a maximum supply voltage of 25V. Minimum operating voltage is 4.5V, suitable for various applications. Input bias current is as low as 50 pA, enabling high impedance signal interfacing. Slew rate of 25 V/μs for fast signal response.

Input offset voltage of ±5 mV ensures accurate amplification. Wide operating temperature range from -25°C to 85°C for reliable industrial use. 8-pin SOIC surface mount package with compact dimensions. Output current capability up to 35 mA for driving loads.

Complies with RoHS standards for environmental safety. Single channel operational amplifier in the OPA604 series. Explore more Operational Amplifiers and precision components within the Electronics & Electricals category at EnvMart to find solutions tailored to your technical requirements.
