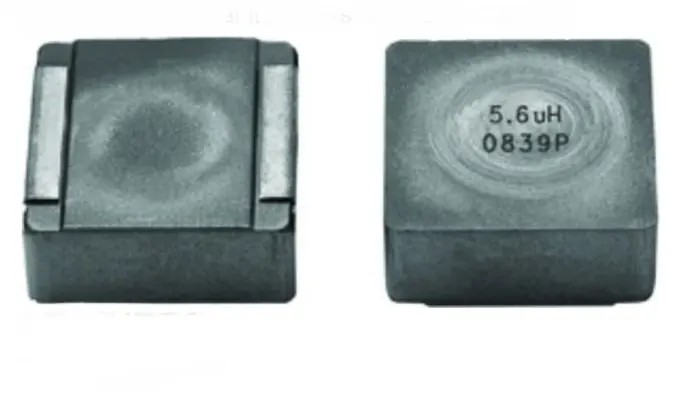

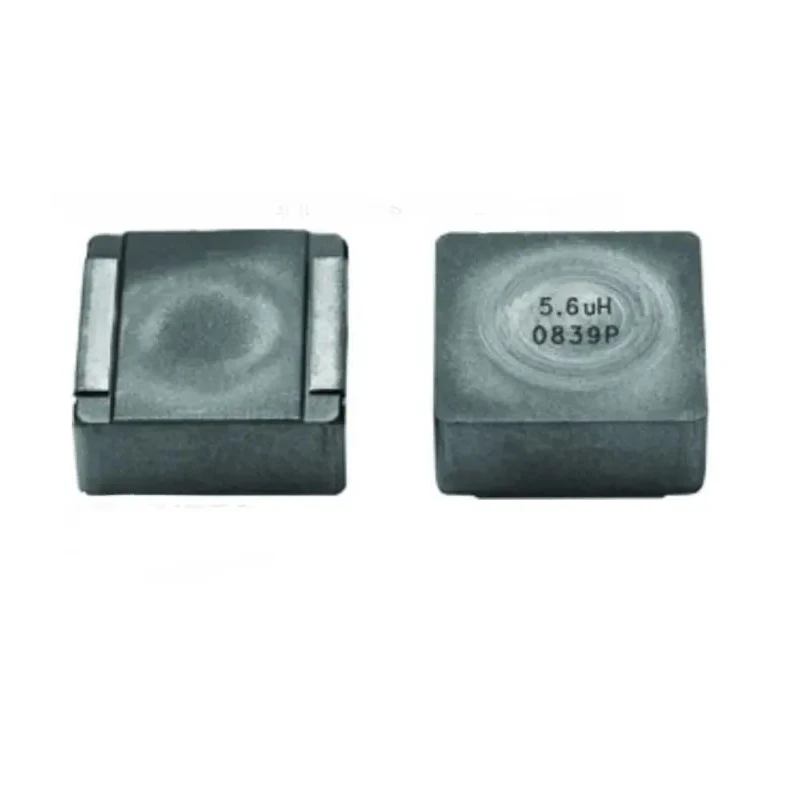

Vishay 4.7 μH ±20% 30 A Shielded Surface Mount Inductor with Metal Composite Core IHLP6767GZER4R7M11
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 7mm |
| Length | 17.1mm |
| Model | IHLP6767GZER4R7M11 |
| Depth | 7mm |
| Series | IHLP |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Metal Composite |
| Inductance | 4.7μH |
| Standards/Approvals | RoHS, JEDEC |
| Package/Case | 6767 |
| Maximum DC Current | 30A |
| Maximum DC Resistance | 4.18mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 10.7MHz |
| Inductor Construction | Shielded |
Key Features
- Provides a maximum DC current rating of 30 A ensuring robust performance under high loads.
- Constructed with a metal composite core for enhanced magnetic properties and minimal losses.
- Features a compact 6767 package with dimensions 17.1 mm length, 7 mm height, and 7 mm depth for space-efficient PCB integration.
- Includes shielding and molded construction to reduce EMI and ensure durability in demanding electronic environments.
- Withstands operating temperatures from -55°C to 125°C suitable for automotive and industrial applications.
- Offers a maximum DC resistance of 4.18 mΩ to maintain efficiency and reduce heat generation.
- Maximum self-resonant frequency is 10.7 MHz, supporting a wide frequency range in power electronics.
- Termination style is surface mount providing ease of assembly and compatibility with automated manufacturing.
Product Description
Vishay IHLP6767GZER4R7M11 is a high-quality shielded surface mount inductor featuring a metal composite core and an inductance of 4.7 μH with an inductance tolerance of ±20%. Designed to handle high transient current spikes without saturation, it supports a maximum DC current of 30 A, making it ideal for demanding electrical circuits.
The inductor comes in a 6767 package case with compact dimensions of 17.1 mm length, 7 mm height, and 7 mm depth, which facilitates optimal PCB real estate usage. The shielding and molded design ensures low electromagnetic interference (EMI) and superior mechanical robustness even in harsh operating environments.
Operating temperature range from -55°C to 125°C expands its suitability for industrial, automotive, and power electronics applications. Furthermore, the low maximum DC resistance of 4.18 mΩ helps in reducing power losses and thermal issues.
Its maximum self-resonant frequency of 10.7 MHz allows it to perform efficiently across a broad frequency spectrum. The surface mount termination style ensures compatibility with modern automated surface-mount technology (SMT) assembly lines.
This Vishay inductor complies with globally recognized RoHS and JEDEC standards, guaranteeing adherence to environmental directives and industry quality norms. Handles high transient current spikes effectively. Metal composite core construction minimizes losses and buzz noise.
Compact 6767 package with precise dimensions for PCB layout. Shielded and molded design reduces electromagnetic interference. Wide temperature rating suitable for automotive and industrial use. Low DC resistance enhances energy efficiency.
High self-resonant frequency supports versatile applications. Surface mount termination style enables automated assembly. Certified RoHS and JEDEC compliant.
Ideal for applications in power electronics, automotive systems, industrial electronics, and other environments requiring reliable inductors with high current capacity and low noise. Browse more Vishay Surface Mount Inductors on EnvMart for varied inductance values and current ratings to meet your engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 4.7 μH with an inductance tolerance of ±20%.
It has a maximum DC current rating of 30 A, allowing it to handle high transient current spikes without saturation.
The dimensions of the 6767 package are 17.1 mm in length, 7 mm in height, and 7 mm in depth.
The maximum self-resonant frequency of this inductor is 10.7 MHz, supporting a wide frequency range in power electronics.
The maximum DC resistance is 4.18 mΩ, which helps in maintaining efficiency and reducing heat generation.
This model can operate in temperatures ranging from -55°C to 125°C, making it suitable for automotive and industrial applications.
The inductor is constructed with a metal composite core, which enhances its magnetic properties and minimizes losses.
It features a surface mount termination style, providing ease of assembly and compatibility with automated manufacturing processes.
This model complies with RoHS and JEDEC standards, ensuring adherence to environmental directives and industry quality norms.
It is ideal for applications in power electronics, automotive systems, and industrial electronics that require reliable inductors with high current capacity.
Yes, it includes shielding and molded construction to reduce electromagnetic interference (EMI) and enhance durability in demanding environments.
This inductor belongs to the IHLP series, which is known for high-performance surface mount inductors.
