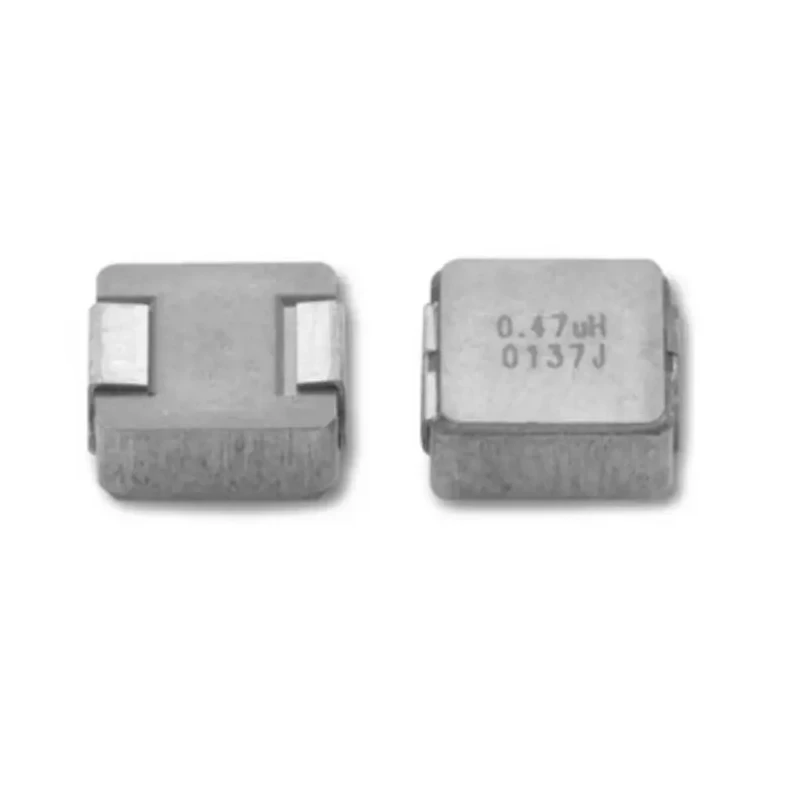

Vishay 2080 Shielded Surface Mount Inductor Metal Composite Core 470nH ±20% 11.5A Idc IHLP2020BZERR47M01
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2mm |
| Length | 5.4mm |
| Model | IHLP2020BZERR47M01 |
| Depth | 2mm |
| Series | IHLP |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Metal Composite |
| Inductance | 470nH |
| Standards/Approvals | JEDEC, RoHS |
| Package/Case | 2080 |
| Maximum DC Current | 11.5A |
| Maximum DC Resistance | 9.4mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 98MHz |
| Inductor Construction | Shielded |
Key Features
- The inductor has a shielded construction for reduced electromagnetic interference.
- It supports a maximum DC current of 11.5 A ensuring robustness under transient spikes.
- The metal composite core provides high saturation performance with ultra low buzz noise.
- Compatible with surface mount assembly for compact PCB designs.
- Operates safely within -55°C to 125°C temperature range.
- It has a maximum DC resistance of 9.4 mΩ for efficient conduction.
- The package/case size is 2080 with dimensions 5.4 mm length, 2 mm height, and 2 mm depth.
- Meets JEDEC and RoHS standards ensuring reliability and environmental compliance.
Product Description
Vishay IHLP2020BZERR47M01 is a 2080 shielded surface mount inductor featuring a metal composite core with an inductance value of 470 nH ±20%. Designed to handle high transient current spikes, it supports a maximum DC current rating of 11.5 A, ensuring robust performance in demanding electrical environments.
The shielded construction reduces electromagnetic interference and minimizes noise, contributing to stable circuit operation. Its metal composite core offers high saturation capability combined with ultra low buzz noise, suitable for industrial, automotive, telecommunications, and power electronics applications where reliable inductive components are mandatory.
This surface mount inductor has a compact package size of 2080 with precise dimensions of 5.4 mm length, 2 mm height, and 2 mm depth, facilitating space-efficient PCB layouts. The component operates over a wide temperature range from -55°C up to 125°C and features a low DC resistance of 9.4 mΩ, promoting efficient power handling and reduced energy loss.
Compliant with JEDEC and RoHS standards, this inductor meets industry requirements for performance and environmental safety. Its moulded, shielded construction ensures durability and consistent performance in harsh operating conditions.
The inductor offers a shielded construction for EMI reduction. Supports high DC current up to 11.5 A for reliable power management. Features a metal composite core for enhanced saturation tolerance. Compact 2080 package ideal for dense PCB designs.
Operates reliably between -55°C and 125°C. Low DC resistance of 9.4 mΩ for power efficiency. Complies with JEDEC and RoHS to ensure quality and environmental compliance. Moulded design enhances durability. Suitable for industrial, automotive, and electronic circuit applications.
This Vishay IHLP series inductor is a preferred choice for engineers and designers seeking high reliability and performance in Surface Mount Inductors. Explore the full range of inductors and other electronic components on EnvMart for your next project or production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductor has an inductance value of 470 nH with a tolerance of ±20%.
It supports a maximum DC current rating of 11.5 A, making it suitable for high transient current applications.
The dimensions of the 2080 package are 5.4 mm in length, 2 mm in height, and 2 mm in depth.
The inductor operates safely within a temperature range of -55°C to 125°C.
It features a metal composite core, which provides high saturation performance and low buzz noise.
The maximum DC resistance is 9.4 mΩ, which promotes efficient conduction.
Yes, it complies with JEDEC and RoHS standards, ensuring reliability and environmental compliance.
This model has a shielded construction designed to reduce electromagnetic interference.
It is suitable for industrial, automotive, telecommunications, and power electronics applications.
The inductor features a surface mount termination style, making it compatible with compact PCB designs.
The maximum self-resonant frequency is 98 MHz, suitable for various high-frequency applications.
This inductor belongs to the Vishay IHLP series, known for high reliability and performance.
