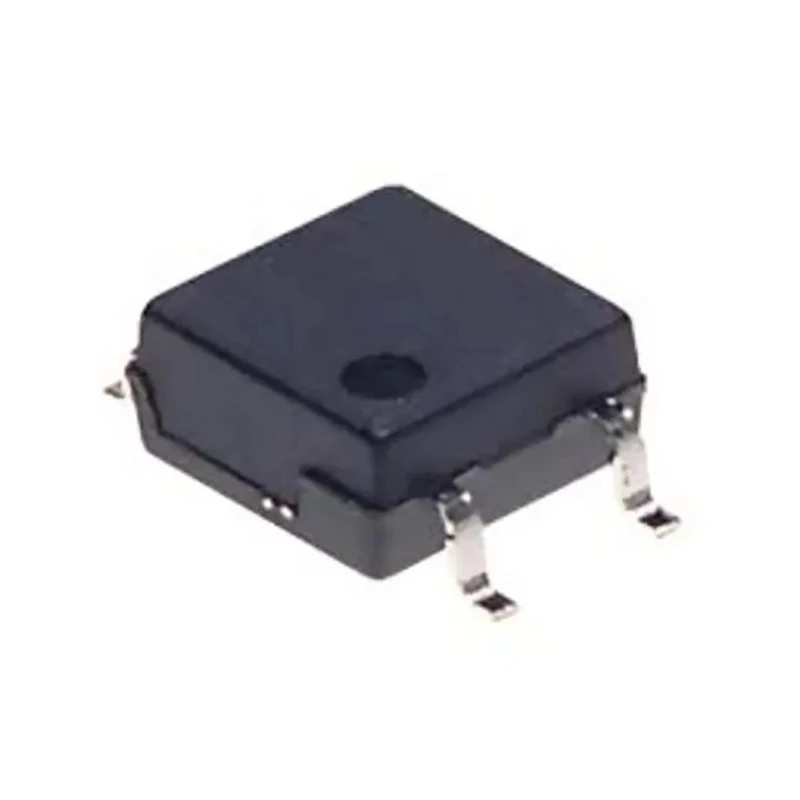

Panasonic PhotoMOS Series Solid State Relay 1A Load 60V Load Surface Mount AQY222R1S
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 2.1mm |
| Length | 4.4mm |
| Model | AQY222R1S |
| Width | 4.3mm |
| Mount Type | Surface |
| Output type | MOSFET |
| Series | PhotoMOS |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Capacitance | 1.5pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Switching Function | AC/DC Switching |
| Maximum Load Current | 1A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 60V |
| Minimum Load Voltage | 30V |
| Off State Leakage Current | 10nA |
| On State Resistance | 1.2Ω |
| Low capacitance and low on resistance (Load voltage | 60 to 80V) |
Key Features
- The relay supports both AC and DC switching functions for versatile applications.
- It features a low on-state resistance of 1.2 ohms to ensure minimal power loss.
- The off-state leakage current is minimal at 10 nanoamps, improving efficiency.
- Compact SOP4-pin surface mount package measures 4.4 x 4.3 x 2.1 mm, saving PCB space.
- Operating temperature ranges from -40°C to 85°C, suitable for industrial environments.
- The device uses MOSFET output for high-speed switching performance.
- Terminal configuration is SPST with through-hole terminals for solid electrical connection.
- Compliant with RoHS standards for environmental safety.
Product Description
Panasonic AQY222R1S PhotoMOS Series Solid State Relay offers precise and efficient switching with a 1 Amp maximum load current and 60 Volt maximum load voltage in a compact surface mount form factor. This relay is ideal for industrial electronics, automation systems, and signal conditioning applications requiring AC and DC switching capabilities.
The device features a miniature SOP4-pin package measuring 4.4 mm in length, 4.3 mm in width, and 2.1 mm in height, suitable for space-constrained PCB layouts. It combines low on-state resistance of 1.2Ω with a low off-state leakage current of just 10 nA, enhancing overall system efficiency and reliability.
With a contact configuration of SPST and through-hole mounting, the relay ensures robust electrical connections. It operates over a wide temperature range from -40°C to 85°C, making it suitable for harsh industrial and commercial environments. The MOSFET output type guarantees high-speed switching performance, supporting both AC and DC load switching.
Compliant with RoHS environmental standards and manufactured in Japan, this relay meets stringent quality and environmental regulations. Its low capacitance of 1.5 pF further enables use in sensitive analogue signal controls.
The relay supports AC and DC switching functions for versatile system integration. Low on-state resistance minimizes power dissipation and heat generation. Off-state leakage current is minimized for energy efficiency. Compact miniature package optimizes PCB space utilization.
Wide operating temperature ensures stability in various conditions. MOSFET output enables fast and reliable switching. SPST configuration provides simple on/off control. RoHS compliance ensures environmental safety. Japanese manufacture guarantees quality and performance.
This Panasonic PhotoMOS Series Solid State Relay AQY222R1S is ideal for industrial control, automation, laboratory equipment, and signal conditioning applications requiring reliable, low-noise power switching.
