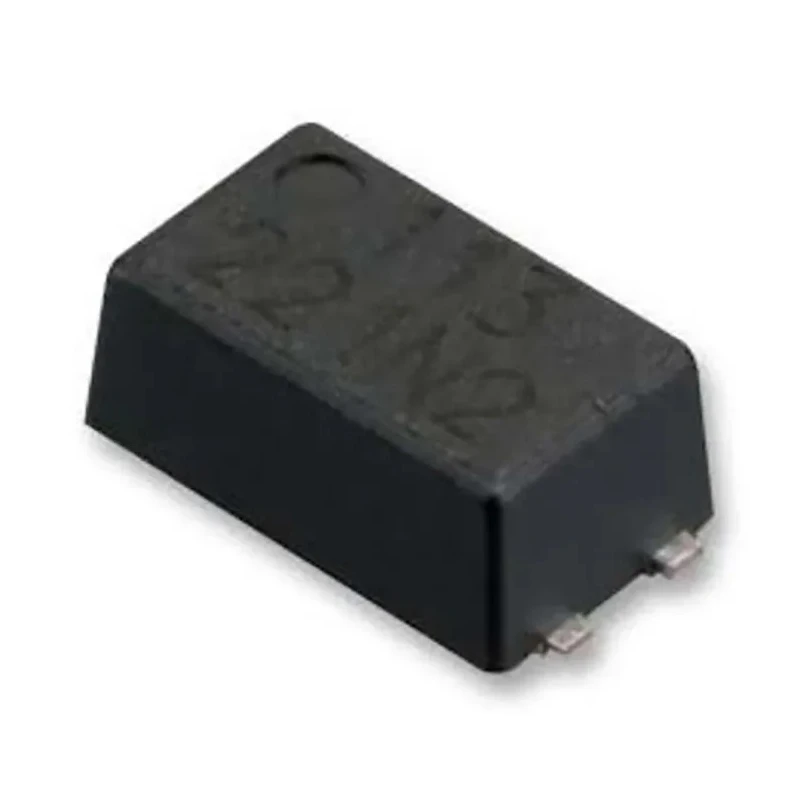

Panasonic PhotoMOS Series Solid State Relay Surface Mount, 1.2A Load Current, 60V Load Voltage AQY222R2V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 1.8mm |
| Length | 4.45mm |
| Model | AQY222R2V |
| Width | 2.65mm |
| Mount Type | Surface |
| Output type | MOSFET |
| Series | PhotoMOS |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Capacitance | 1.5pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Switching Function | AC/DC Switching |
| Maximum Load Current | 1.2A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 60V |
| Minimum Load Voltage | 30V |
| Off State Leakage Current | 10nA |
| On State Resistance | 1.25Ω |
| Load voltage | 60 V, 80 V and 100 V |
Key Features
- This relay features a miniature SSOP package reducing volume by approximately 53% compared to conventional SOP 4-pin models.
- Supports AC/DC switching with a single pole single throw (SPST) contact configuration.
- On state resistance of 1.25 ohms ensures low power dissipation during operation.
- Wide operating temperature range from -40°C to 85°C for versatile industrial applications.
- Compact dimensions of 4.45 mm length, 2.65 mm width, and 1.8 mm height aid in space-saving designs.
- Low off state leakage current of 10 nanoamperes minimizes power loss.
- Capacitance rated at 1.5 picofarads provides excellent switching performance.
- MOSFET output type guarantees reliable silent switching in automation and control systems.
Product Description
Panasonic AQY222R2V is a high-performance PhotoMOS Series Solid State Relay designed for efficient AC/DC switching in electronic control systems. Featuring a surface mount SSOP package, it offers compact size with dimensions of 4.45 mm length, 2.65 mm width, and 1.8 mm height, ideal for modern automated circuit designs where space is critical.
The relay supports a maximum load current of 1.2 amperes and load voltages up to 60 volts, with versions also available for 80 V and 100 V loads. Its low on state resistance of 1.25 Ω ensures minimal power loss, enhancing energy efficiency and thermal management in sensitive electronic applications.
Operating reliably across a wide temperature range from -40°C to 85°C, this relay is suitable for demanding industrial environments including automation, instrumentation, HVAC control systems, and manufacturing processes requiring silent and robust switching solutions. The MOSFET output offers fast switching capabilities with very low off state leakage current (10 nA) and minimal output capacitance (1.5 pF), improving noise immunity and response times.
The miniature SSOP form factor reduces mounting space by approximately 53% compared to standard SOP 4-pin relays, allowing more compact PCB designs. The device is RoHS compliant, ensuring environmentally friendly manufacture and usage.
This relay is surface mount type with through-hole terminal options available. Contact configuration is SPST suitable for simple switching control. Load voltage ratings include 60 V, 80 V, and 100 V options for versatile use cases.
Designed and manufactured in Japan ensuring quality and reliability.
Ideal for industrial electronics, automation controls, and signal switching circuits, the Panasonic AQY222R2V PhotoMOS Solid State Relay supports modern electrical design requirements with miniaturization, energy efficiency, and reliability. Explore EnvMart categories for more Panasonic relays and solid state switching components to suit your specific engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 1.2 amperes.
This relay supports load voltages of 60 V, 80 V, and 100 V.
It supports AC/DC switching with a single pole single throw (SPST) contact configuration.
The dimensions of this model are 4.45 mm in length, 2.65 mm in width, and 1.8 mm in height.
The on state resistance is 1.25 ohms, which ensures low power dissipation during operation.
It operates reliably across a temperature range from -40°C to 85°C.
The off state leakage current is 10 nanoamperes, which minimizes power loss.
This model uses a MOSFET output type, which guarantees reliable silent switching.
Yes, the relay is RoHS compliant, ensuring environmentally friendly manufacture and usage.
The capacitance is rated at 1.5 picofarads, providing excellent switching performance.
This relay is designed for surface mounting, with through-hole terminal options available.
This model is manufactured in Japan, ensuring quality and reliability.
