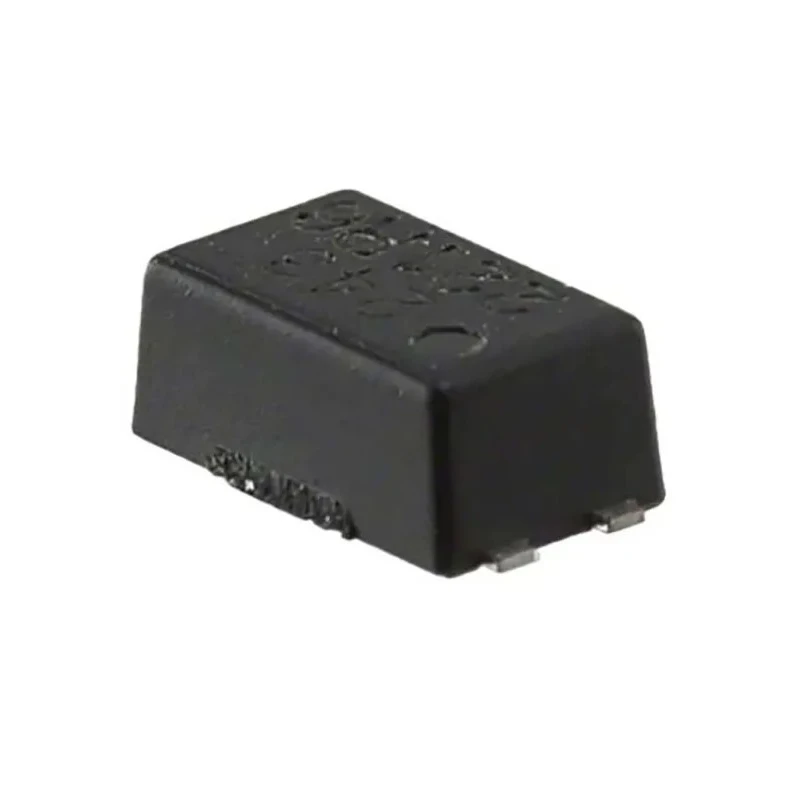

Panasonic PhotoMOS Series Solid State Relay Surface Mount 1.5 A Load 30 V Load AQY221R6V

Panasonic AQY221R6V PhotoMOS Series Solid State Relay is a high-performance, compact Solid State Relay designed for surface mount applications accommodating loads up to 1.5 A and load voltages of 30 V. Featuring a miniature SSOP package with a new flat lead terminal shape, it balances size and efficiency for electronic automation tasks.

This relay supports both AC and DC switching functions with a contact configuration of single-pole single-throw (SPST). It delivers excellent electrical characteristics such as low on-state resistance of 0.35 Ω, minimizing power loss during operation. Its off-state leakage current is extremely low at 10 nA, along with a low capacitance of 1.5 pF, ensuring minimal interference and superior signal integrity.

Operating reliably within a temperature range from -40°C to 85°C, this relay maintains performance across challenging industrial environments. Designed with through-hole terminal type, it supports robust mechanical connections on printed circuit boards.

Manufactured in Japan, the AQY221R6V complies with RoHS standards reflecting commitment to environmental and safety regulations. Its compact size, with dimensions 4.45 mm long, 2.65 mm wide, and 1.8 mm high, makes it suitable for space-constrained electronic assemblies.

Ideal for use in various industrial and electronic automation systems requiring reliable and precise switching, this Panasonic PhotoMOS relay excels in applications demanding long service life, high noise immunity, and fast switching.

Features a miniature SSOP package with flat lead terminals. AC/DC switching capability with SPST contact configuration. Low on-state resistance reduces power losses. Wide operating temperature from -40°C to 85°C. Compliant with RoHS environmental standards.

Compact size for space-saving PCB design. Manufactured with quality assurance in Japan. Low leakage current and capacitance for signal integrity.
