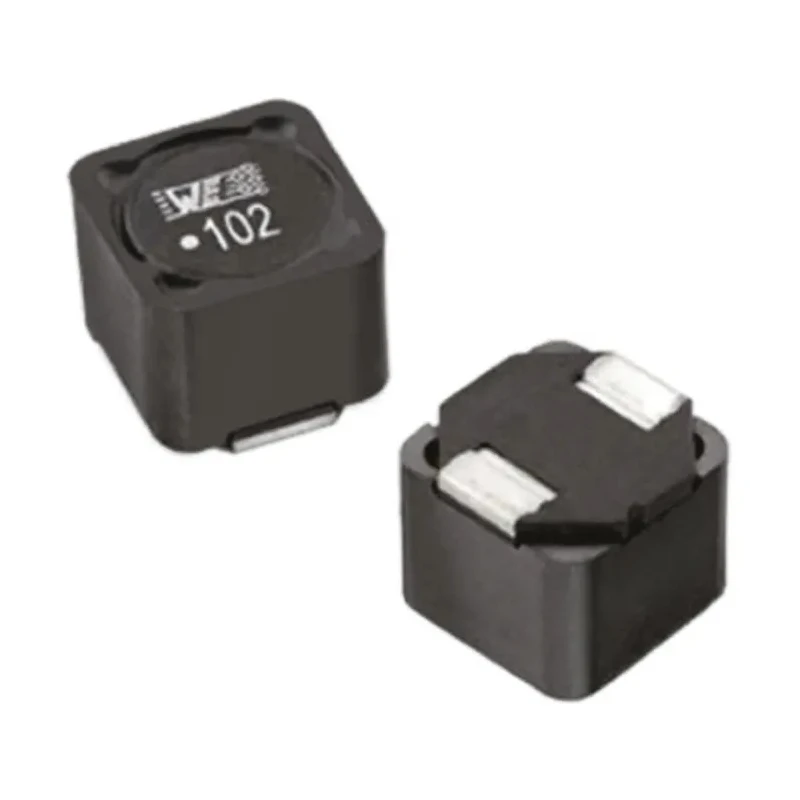

Wurth Elektronik Wirewound Surface Mount Inductor 470 μH ±20% 600 mA Idc Shielded WE-PDHV 1060 7687714471
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 6mm |
| Length | 10mm |
| Depth | 10mm |
| Packaging | Tape & Reel |
| Series | WE-PDHV |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Inductance | 470μH |
| Standards/Approvals | WE-STD 1516 |
| Package/Case | 1060 |
| Maximum DC Current | 600mA |
| Maximum DC Resistance | 1.45Ω |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 2.7MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- This shielded inductor supports a maximum DC current of 600 mA.
- Compact 1060 package dimensions measure 10 mm length, 6 mm height, and 10 mm depth.
- Designed for surface mount termination style with tape and reel packaging.
- Meets AEC-Q200 automotive standard for robust automotive applications.
- Operates reliably from -40°C up to 125°C maximum temperature.
- Features a maximum DC resistance of 1.45 Ω and maximum self-resonant frequency of 2.7 MHz.
- Constructed with high-quality wirewound technology with magnetic shielding for circuit protection.
- Ideal for power supplies, buck converters, LED drivers, and utility metering circuits.
Product Description
Wurth Elektronik 7687714471 is a high-performance wirewound Surface Mount Inductor from the WE-PDHV series designed for demanding electronic applications. This shielded inductor delivers 470 μH inductance with a tolerance of ±20%, ensuring precision in circuit design. It supports a maximum DC current of 600 mA, suitable for power conversion and filtering functions.
Its compact 1060 package case measures 10 mm in length, 6 mm in height, and 10 mm in depth, optimized for surface mount technology using tape and reel packaging for automated PCB assembly. The termination style is surface mount, facilitating easy integration into modern electronic circuits.
Compliance with the stringent AEC-Q200 automotive standard highlights its robustness for automotive and industrial uses. This component operates effectively from a minimum temperature of -40°C to a maximum of 125°C, with a maximum DC resistance of 1.45 Ω ensuring energy efficiency and minimal losses.
The inductor features wirewound construction with magnetic shielding providing protection against electromagnetic interference, making it reliable for sensitive electronic environments. Its maximum self-resonant frequency is 2.7 MHz, enabling use in high-frequency circuits such as DC-DC converters and LED drivers.
Applications include non-isolated buck or buck-boost converters, constant current LED drivers, utility metering, and power supply filtering. Manufactured in China under WE-STD 1516, it assures consistent quality and performance.
This shielded inductor supports a maximum DC current of 600 mA. Compact 1060 package dimensions measure 10 mm length, 6 mm height, and 10 mm depth. Designed for surface mount termination style with tape and reel packaging.
Meets AEC-Q200 automotive standard for robust automotive applications. Operates reliably from -40°C up to 125°C maximum temperature. Features a maximum DC resistance of 1.45 Ω and maximum self-resonant frequency of 2.7 MHz.
Constructed with high-quality wirewound technology with magnetic shielding for circuit protection. Ideal for power supplies, buck converters, LED drivers, and utility metering circuits. Manufactured in China adhering to WE-STD 1516 standards.
Explore further electronic components and inductors at EnvMart for your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 470 μH with a tolerance of ±20%.
It supports a maximum DC current of 600 mA.
The compact 1060 package measures 10 mm in length, 6 mm in height, and 10 mm in depth.
The maximum operating temperature is 125°C.
Yes, it meets the AEC-Q200 automotive standard, making it suitable for automotive applications.
The maximum self-resonant frequency is 2.7 MHz.
This inductor features a surface mount termination style.
The maximum DC resistance is 1.45 Ω.
The minimum operating temperature is -40°C.
It is packaged in tape and reel format, which is optimized for automated PCB assembly.
This inductor is ideal for power supplies, buck converters, LED drivers, and utility metering circuits.
It is manufactured in China, adhering to WE-STD 1516 standards.
