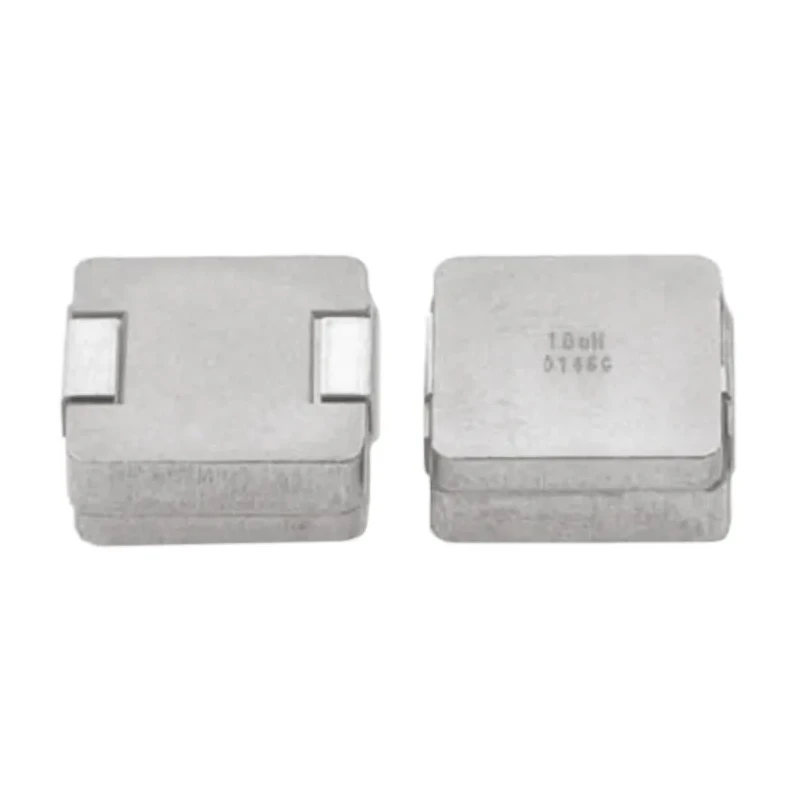

Vishay 5050 Shielded Surface Mount Inductor with Metal Composite Core, 10 μH ±20% 9 A Idc IHLP5050EZER100M01
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 5mm |
| Length | 13.2mm |
| Model | IHLP5050EZER100M01 |
| Depth | 12.9mm |
| Packaging | Reel |
| Series | IHLP-5050EZ-01 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Metal Composite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | 5050 |
| Maximum DC Current | 9A |
| Maximum DC Resistance | 25.5mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 5MHz |
| Inductor Construction | Shielded |
Key Features
- Features a compact 5050 package size suitable for surface mount technology.
- Constructed with a metal composite core ensuring high current handling and low buzz noise.
- Operates reliably within a temperature range of -55°C up to 125°C.
- Maximum DC resistance is 25.5 milliohms, ensuring efficient current flow.
- Magnetically shielded wire wound construction for minimized electromagnetic interference.
- Supports frequency range up to 5 MHz for high-frequency power applications.
- Available in reel packaging for efficient automated assembly.
- Compliant with RoHS standards for environmental safety.
Product Description
Vishay IHLP5050EZER100M01 is a 5050 shielded Surface Mount Inductor designed with a metal composite core, providing 10 μH inductance at ±20% tolerance and a maximum DC current rating of 9 A. This low-profile, high current inductor is constructed with magnetically shielded wire winding and molded casing, ensuring ultra-low buzz noise and robustness against transient current spikes.
Its compact size of 13.2 mm length, 12.9 mm depth, and 5 mm height enables seamless integration in space-constrained electronic assemblies. The inductor operates efficiently at temperatures ranging from -55°C to 125°C, making it suitable for demanding industrial and commercial applications.
The low maximum DC resistance of 25.5 mΩ helps maintain energy efficiency in circuits such as POL converters, DC/DC converters, and battery-powered devices. The unit supports frequencies up to 5 MHz, making it ideal for high-frequency power supply designs.
Typical applications include PDAs, notebooks, desktops, servers, FPGA power supplies, and distributed power systems. The reel packaging facilitates automated surface mount technology assembly, improving manufacturing throughput.
Vishay IHLP5050EZER100M01 complies with RoHS standards, supporting environmentally conscious design requirements. The metal composite core and shielded construction reduce electromagnetic interference, ensuring system reliability and performance.
Features a compact 5050 package size suitable for surface mount technology. Constructed with a metal composite core ensuring high current handling and low buzz noise. Operates reliably within a temperature range of -55°C up to 125°C.
Maximum DC resistance is 25.5 milliohms, ensuring efficient current flow. Magnetically shielded wire wound construction for minimized electromagnetic interference. Supports frequency range up to 5 MHz for high-frequency power applications.
Available in reel packaging for efficient automated assembly. Compliant with RoHS standards for environmental safety. Discover a wide range of inductors and electronic components at EnvMart to enhance your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 10 μH with a tolerance of ±20%.
The maximum DC current rating for this unit is 9 A.
The dimensions of this model are 13.2 mm in length, 12.9 mm in depth, and 5 mm in height.
The maximum DC resistance is 25.5 milliohms, which helps ensure efficient current flow.
It operates reliably within a temperature range of -55°C to 125°C.
The inductor supports a maximum self-resonant frequency of 5 MHz, making it suitable for high-frequency applications.
This model is available in reel packaging, which facilitates efficient automated assembly.
It is constructed with a metal composite core and has a magnetically shielded wire wound design, minimizing electromagnetic interference.
Yes, it complies with RoHS standards for environmental safety.
Typical applications include PDAs, notebooks, desktops, servers, FPGA power supplies, and distributed power systems.
The termination style for this model is surface mount, suitable for surface mount technology.
This inductor belongs to the IHLP-5050EZ-01 series.
