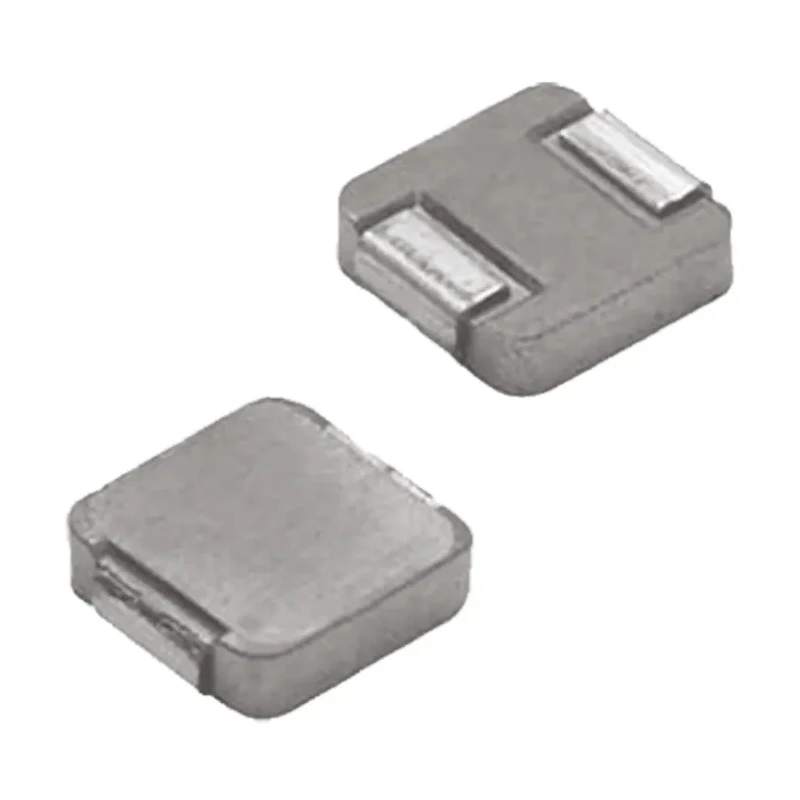

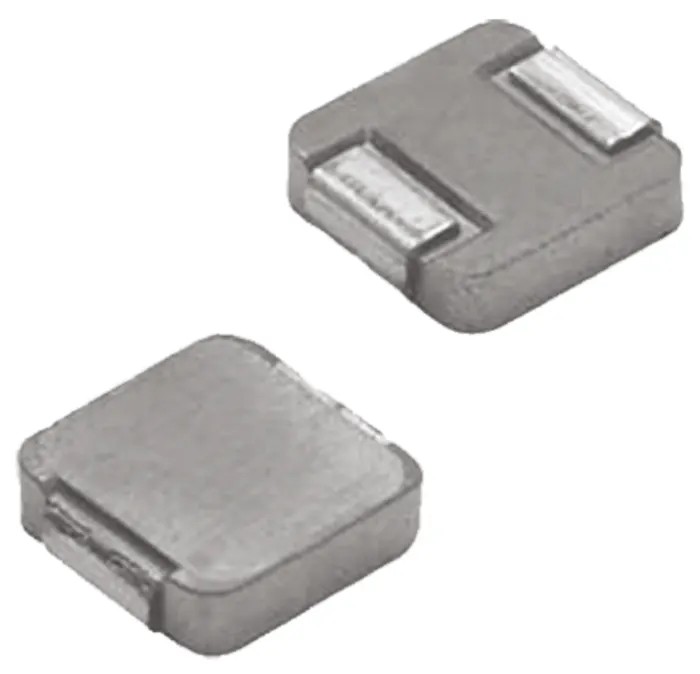

Vishay 1616 Shielded Surface Mount Inductor with Metal Composite Core 470 nH ±20 % 5 A Idc IHLP1616ABEKR47M01
Specifications
| Country of Origin | Israel |
|---|---|
| Brand | Vishay |
| Height | 1.2mm |
| Length | 4.45mm |
| Model | IHLP1616ABEKR47M01 |
| Depth | 4.06mm |
| Series | IHLP |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Metal Composite |
| Inductance | 470nH |
| Standards/Approvals | RoHS 2002/95/EC |
| Package/Case | 1616 |
| Maximum DC Current | 5A |
| Pin Count | 2 |
| Maximum DC Resistance | 22mΩ |
| Inductance Tolerance | ±20 % |
| Maximum Self Resonant Frequency | 101MHz |
| Inductor Construction | Shielded |
Key Features
- Constructed with a metal composite core and shielded design for high performance.
- Compact 1616 package size with dimensions 4.45 x 4.06 x 1.2 mm (LxDxH).
- Maximum DC resistance is 22 mΩ ensuring low power loss.
- Operates reliably from -55°C to 125°C with RoHS compliant materials.
- Supports frequencies up to 101 MHz, suitable for high-frequency applications.
- Features a 2-pin configuration for surface mounting on PCBs.
- Ideal for high current POL converters, DC/DC converters, and battery-powered devices.
- Designed for low profile, high current power supplies in electronic devices.
Product Description
Vishay IHLP1616ABEKR47M01 is a shielded surface mount inductor featuring a metal composite core designed to provide stable performance at 470 nH inductance with ±20 % tolerance. This inductor supports a maximum DC current of 5 A, making it ideal for demanding electronic applications.
Its compact 1616 package size with precise dimensions of 4.45 mm length, 4.06 mm depth, and 1.2 mm height allows integration into space-constrained PCB designs. The low maximum DC resistance of 22 mΩ ensures efficient power usage with minimal losses, beneficial for high current circuits.
Engineered to operate within a wide temperature range from -55°C up to 125°C, this component is RoHS 2002/95/EC compliant, supporting environmentally responsible manufacturing processes.
The shielded magnetically wound construction reduces electromagnetic interference and buzz noise, thus improving circuit reliability in applications such as PDAs, notebooks, desktop servers, and FPGAs.
With a self-resonant frequency up to 101 MHz and a 2-pin mounting configuration, this inductor is highly suited for use in DC/DC converters, distributed power systems, and high current power supplies requiring low profile and high efficiency.
Constructed with a metal composite core and shielded design for high performance. Compact 1616 package size with dimensions 4.45 x 4.06 x 1.2 mm (LxDxH). Maximum DC resistance is 22 mΩ ensuring low power loss. Operates reliably from -55°C to 125°C with RoHS compliant materials.
Supports frequencies up to 101 MHz, suitable for high-frequency applications. Features a 2-pin configuration for surface mounting on PCBs. Ideal for high current POL converters, DC/DC converters, and battery-powered devices.
Designed for low profile, high current power supplies in electronic devices. This Vishay IHLP1616ABEKR47M01 inductor is manufactured in Israel and built to meet high industrial standards. Explore the wide range of Surface Mount Inductors and related electronic components at EnvMart for all your industrial and commercial electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay IHLP1616ABEKR47M01 has an inductance value of 470 nH with a tolerance of ±20%.
This inductor supports a maximum DC current of 5 A, making it suitable for high current applications.
The inductor has dimensions of 4.45 mm in length, 4.06 mm in depth, and 1.2 mm in height.
The maximum DC resistance is 22 mΩ, ensuring low power loss during operation.
It operates reliably within a temperature range of -55°C to 125°C.
The maximum self-resonant frequency of the IHLP1616ABEKR47M01 is up to 101 MHz, suitable for high-frequency applications.
It features a metal composite core, which contributes to its performance characteristics.
This model has a 2-pin configuration for surface mounting on PCBs.
Yes, it is compliant with RoHS 2002/95/EC standards, supporting environmentally responsible manufacturing.
This inductor is ideal for use in high current POL converters, DC/DC converters, and battery-powered devices.
The inductor is constructed using a shielded design, which helps reduce electromagnetic interference.
The Vishay IHLP1616ABEKR47M01 is manufactured in Israel.
