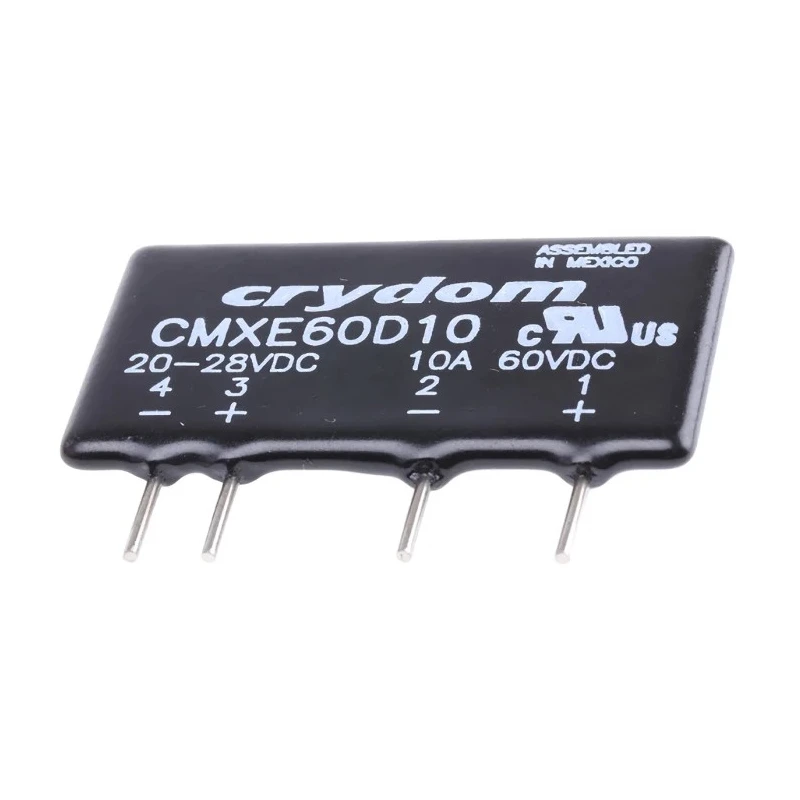

Crydom CMX Series Solid State Relay 10 A Load, PCB Mount, 60 V DC Load, 28 V DC Control CMXE60D10

The Crydom CMXE60D10 solid state relay is designed for efficient and reliable control of DC loads up to 10 A with a maximum load voltage of 60 V DC. Ideal for industrial and automation applications, this relay offers robust performance in harsh environments with its operational temperature range from -30°C to +80°C. Its through-hole PCB mount package type ensures stable installation and electrical connections, supported by the compact SIP-4 package design measuring 43.1 mm in length, 7.6 mm in width, and 25.4 mm in height.

Utilizing MOSFET output technology, the CMXE60D10 provides low off-state leakage current of just 100 μA DC and fast switching times, enabling quick and precise control in sensitive equipment such as medical devices, multiplexers, and input/output subsystems. The device is encapsulated with thermally conductive epoxy that enhances heat dissipation to maintain reliable performance during continuous operation.

Electrical insulation is guaranteed with a dielectric strength of 2500 Vrms, ensuring safety against electrical hazards. This relay conforms to CE and RoHS standards, affirming its compliance with international safety and environmental regulations. Its contact configuration is SPST, and its terminal type is through-hole, optimized for circuit board integration. The minimum control voltage is 20 V DC and maximum control voltage is 28 V DC, allowing compatibility with various control systems.

Supports loads up to 10 A DC current. PCB mountable with through-hole terminals for secure connection. Operational across temperatures from -30°C to +80°C. MOSFET output type for efficient switching and low leakage current.

Compact SIP-4 package dimensions of 43.1 x 7.6 x 25.4 mm. Thermally conductive epoxy encapsulation for enhanced heat dissipation. Dielectric strength of 2500 Vrms for electrical safety. Conforms to CE and RoHS standards.

This solid state relay from Crydom is suitable for industries such as industrial manufacturing, process control, automation systems, and medical equipment where reliable DC switching is critical. Its compact form factor and high performance facilitate integration into control panels and electronic assemblies. Explore more Solid State Relay options in EnvMart’s extensive category offering to find suitable components for your automation and control needs.
