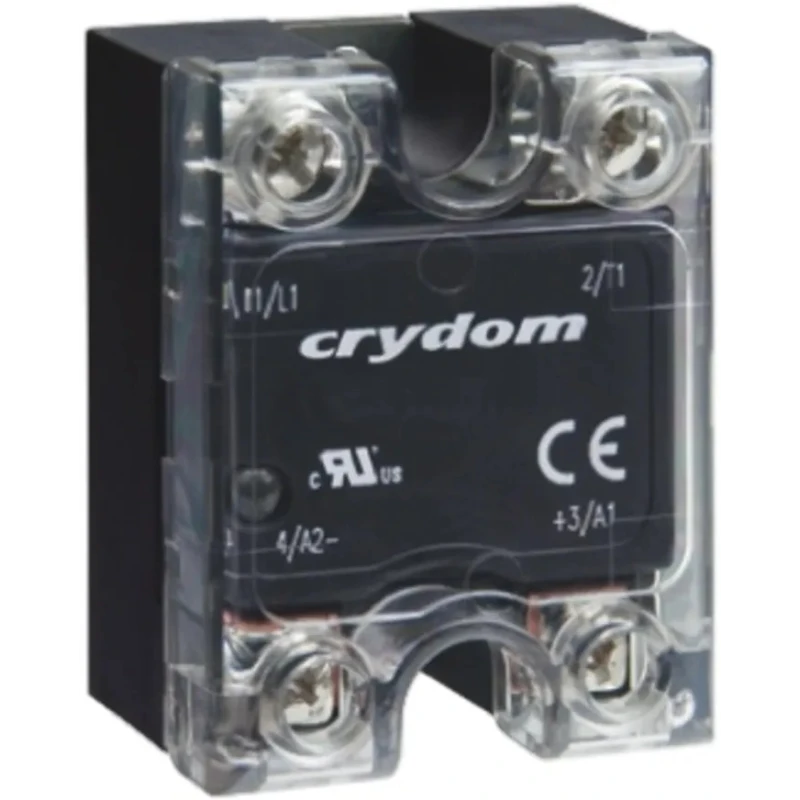

Crydom Solid State Relay Panel Mount 5A Load 24-280 Vrms Load Voltage 90-250 Vrms Control Voltage CL240A05C
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 58.2mm |
| Length | 44.5mm |
| Model | CL240A05C |
| IP Rating | IP20, IP00 |
| Width | 30.9mm |
| Mount Type | Panel |
| Output type | Triac |
| Series | CL |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST-NO |
| Capacitance | 8pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Turn-On Switching |
| Maximum Load Current | 5A |
| Standards/Approvals | CE, cRL US, RoHS, UL |
| Off State Leakage Current | 7mArms |
Key Features
- Supports control voltage range of 90-250 Vrms for reliable switching.
- Provides zero voltage turn-on switching function for reduced electrical noise.
- Compact panel mount design with dimensions 58.2x44.5x30.9 mm.
- Features screw terminals for secure connections and SPST-NO contact configuration.
- Can operate in temperatures from -30°C to 80°C ensuring durability in industrial environments.
- IP20 and IP00 rated for protection against solid objects and dust ingress.
- Outputs via a triac with an off state leakage current of 7 mArms and capacitance of 8 pF.
- Conforms to CE, cRL US, RoHS and UL standards ensuring safety and quality.
Product Description
The Crydom CL240A05C is a robust Solid State Relay designed for panel mounting applications demanding a maximum load current of 5A and load voltage between 24 and 280 Vrms. Its control voltage range of 90 to 250 Vrms allows versatile interface with various industrial control systems.
Incorporating zero-cross turn-on switching, this relay reduces electrical noise and minimizes switching transients, making it suitable for sensitive automation and electrical control environments.
The relay features a compact form factor with height of 58.2 mm, length of 44.5 mm, and width of 30.9 mm for efficient panel space utilization. Screw terminal connections ensure reliable and easy installation, while the SPST-NO contact configuration provides straightforward single-pole operation.
Operating temperature range from -30°C up to 80°C guarantees consistent performance under diverse environmental conditions typical in industrial settings.
Protection ratings of IP20 and IP00 provide safety against dust and accidental contact, enhancing device reliability and operator safety. The output is realized through a triac with low off-state leakage current (7 mArms) and low capacitance (8 pF), suitable for controlling AC loads with reduced interference.
This Solid State Relay meets international standards including CE, cRL US, RoHS, and UL, certifying its adherence to rigorous safety and quality benchmarks. This product is ideal for industrial automation, electrical control panels, HVAC systems, and manufacturing process controls where precise and reliable switching is critical.
Supports control voltage range of 90-250 Vrms for reliable switching. Provides zero voltage turn-on switching function for reduced electrical noise. Compact panel mount design with dimensions 58.2x44.5x30.9 mm. Features screw terminals for secure connections and SPST-NO contact configuration.
Can operate in temperatures from -30°C to 80°C ensuring durability in industrial environments. IP20 and IP00 rated for protection against solid objects and dust ingress. Outputs via a triac with an off state leakage current of 7 mArms and capacitance of 8 pF.
Conforms to CE, cRL US, RoHS and UL standards ensuring safety and quality. Explore our wide range of industrial electrical and automation components at EnvMart for dependable performance and extended service life.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this solid state relay is 5A.
The control voltage range for the CL240A05C is 90 to 250 Vrms.
The dimensions of this relay are 58.2 mm in height, 44.5 mm in length, and 30.9 mm in width.
This relay provides a triac output type.
The operating temperature range for this model is from -30°C to 80°C.
The contact configuration of the CL240A05C is SPST-NO (Single Pole, Single Throw - Normally Open).
The off state leakage current for this relay is 7 mArms.
This relay has IP20 and IP00 protection ratings against solid objects and dust ingress.
This relay features screw terminals for secure connections.
The CL240A05C conforms to CE, cRL US, RoHS, and UL standards.
The switching function of this solid state relay is zero voltage turn-on switching, which reduces electrical noise.
This relay is suitable for industrial automation, electrical control panels, HVAC systems, and manufacturing process controls.
