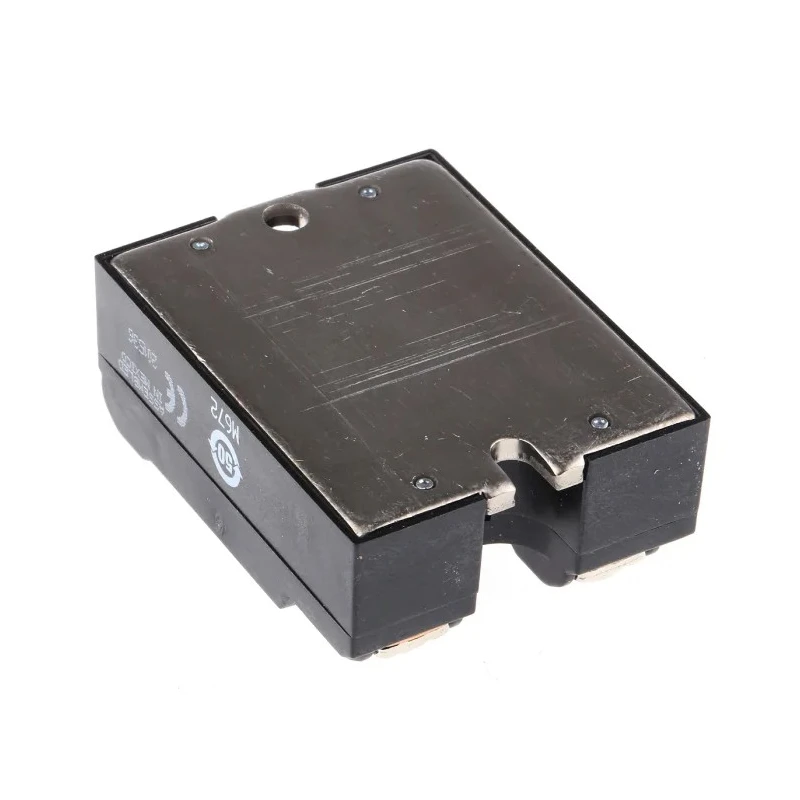

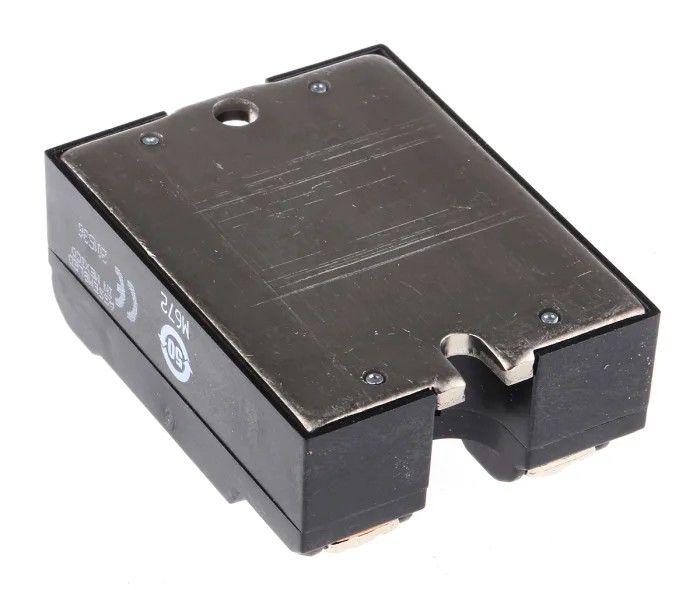

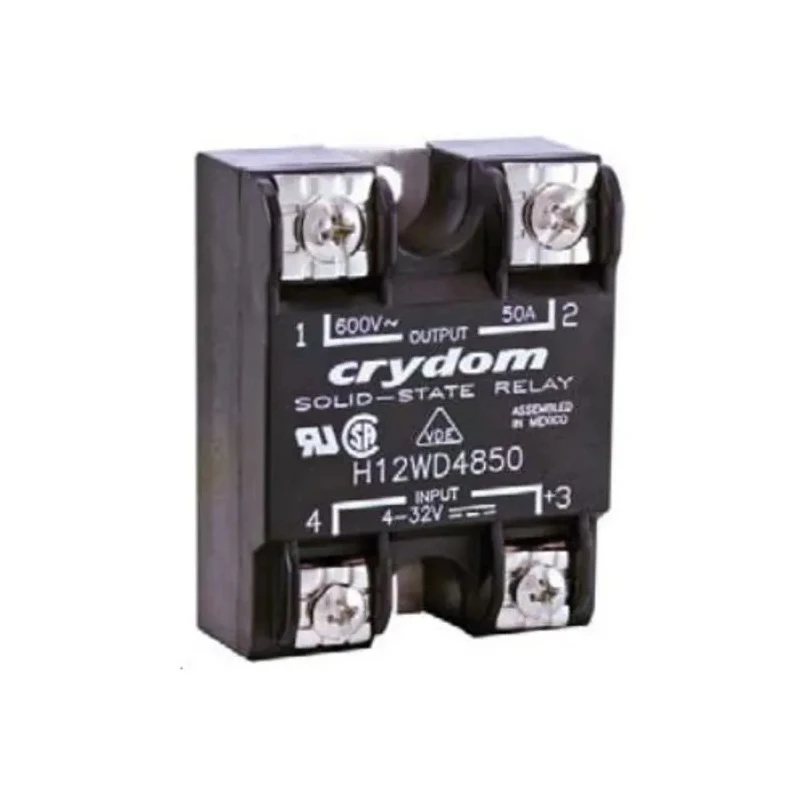

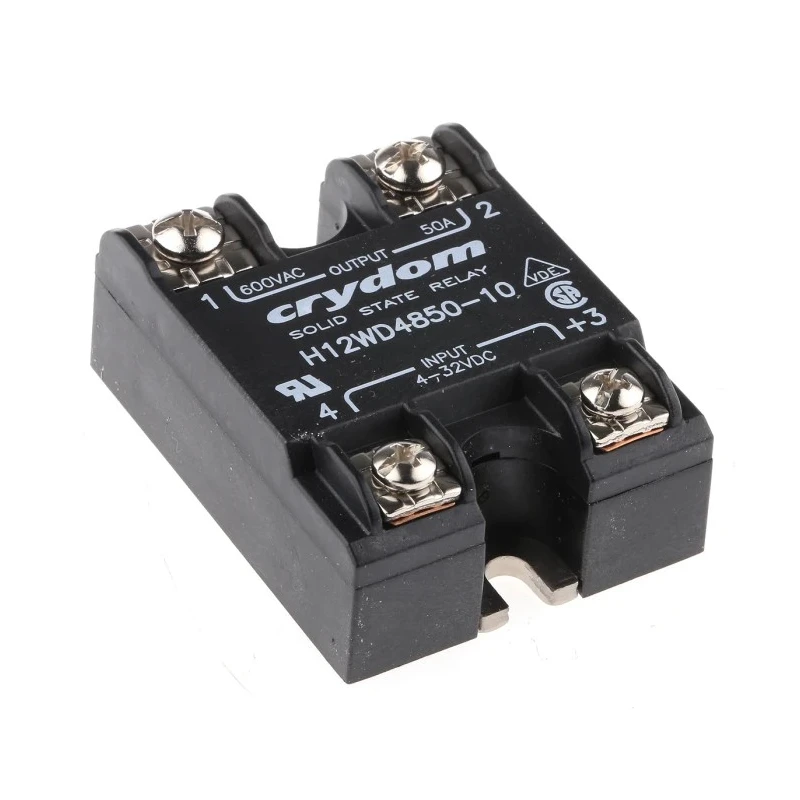

Crydom Solid State Relay Panel Mount 50A Load 660Vrms Load, 32V DC Control H12WD
Specifications
| Country of Origin | heaven for heavy-duty industrial |
|---|---|
| Brand | Crydom |
| Height | 58.4mm |
| Length | 45.7mm |
| Model | H12WD |
| Width | 23.3mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | H12WD |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST-NO |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Instantaneous Switching |
| Maximum Load Current | 50A |
| Standards/Approvals | CE, CSA, RoHS, UL, VDE |
| Minimum Control Voltage | 4V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 1mArms |
Key Features
- Supports instantaneous switching for fast reaction times in automation systems.
- Wide operating temperature range between -40°C and +80°C ensures reliability in extreme environments.
- Screw terminal type for easy and secure wiring connections.
- Compact dimensions with 58.4mm height, 45.7mm length, and 23.3mm width.
- Lightweight design at 74.9g minimizes strain on equipment.
- Output type is SCR with low off state leakage current of 1mArms.
- Capacitance between input and output is 8pF for signal integrity.
- Complies with CE, CSA, RoHS, UL, and VDE standards for quality assurance.
Product Description
Crydom H12WD4850-10 solid state relay panel mount is engineered for industrial use, featuring a 50A maximum load current rating and 660Vrms load voltage capability with 32V DC control voltage. Its instantaneous switching function allows rapid device control, improving process responsiveness in applications such as HVAC systems, automated lighting, and power control in manufacturing plants.
Designed to operate reliably within a temperature range from -40°C to +80°C, this SSR is suitable for harsh industrial environments. The device incorporates screw terminals facilitating straightforward wiring and maintenance. With compact form factor dimensions of 58.4mm height, 45.7mm length, and 23.3mm width, and a light weight of 74.9g, it integrates easily into panel assemblies without adding excessive weight.
The output is based on SCR technology, ensuring low leakage current (1mArms) and maintaining signal integrity supported by an 8pF input-output capacitance. The relay meets stringent CE, CSA, RoHS, UL, and VDE certifications, reinforcing its dependability and safety compliance.
Additional features include anti-rotation barriers that secure the relay firmly in place during operation, preventing movement or displacement from vibration or handling. Instantaneous switching for efficient control response.
Wide temperature tolerance for diverse industrial applications. Panel mount with screw terminals for secure wiring. Compact and lightweight design for easy installation. Low off state leakage current preserves system integrity.
Compliant with multiple international safety and quality standards.
This solid state relay is well suited for industrial automation, manufacturing process control, HVAC, and lighting control systems, providing robust performance and longevity with no mechanical wear components.
Explore more Solid State Relays and related industrial automation products on EnvMart to boost your system capabilities with trusted quality components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this solid state relay is 50A.
The control voltage range for this model is between 4V DC and 32V DC.
The dimensions of this relay are 58.4mm in height, 45.7mm in length, and 23.3mm in width.
This relay uses screw terminals for secure wiring connections.
It operates reliably within a temperature range of -40°C to +80°C.
The output type of this relay is SCR (Silicon Controlled Rectifier).
The off state leakage current for this relay is 1mArms.
This relay complies with CE, CSA, RoHS, UL, and VDE standards.
The capacitance between input and output is 8pF.
This model is designed for panel mounting.
This relay features instantaneous switching for fast reaction times in automation systems.
This solid state relay is suitable for industrial automation, manufacturing process control, HVAC, and lighting control systems.
