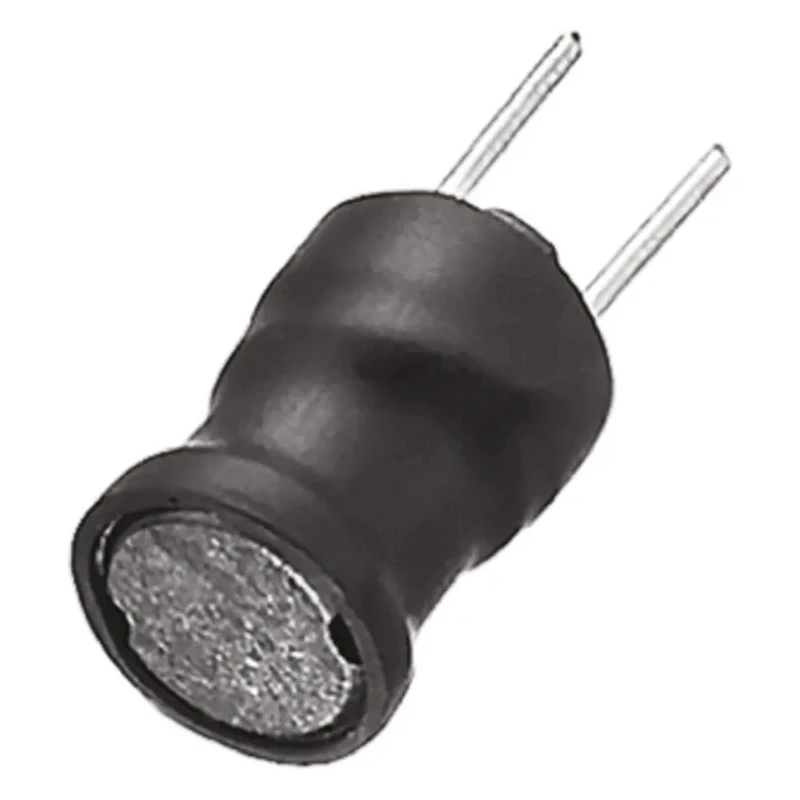

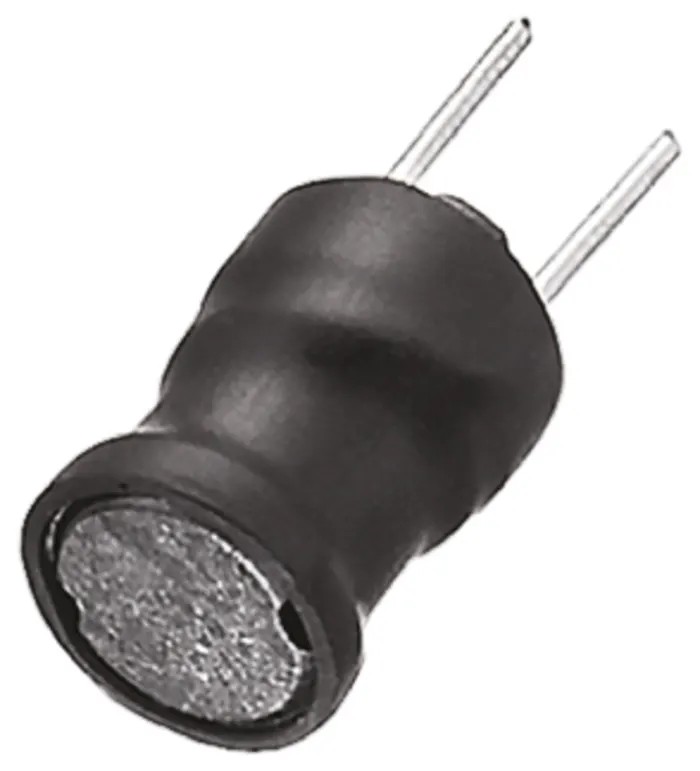

Wurth Elektronik WE-TI 5075 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 10 μH ±20 % 2.6 A Idc 7447462100
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 6mm |
| Brand | Wurth Elektronik |
| Height | 8.5mm |
| Length | 6mm |
| Depth | 6mm |
| Packaging | Bag and Carton |
| Series | WE-TI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | IEC 61249-2-21, JEDEC JS709B, REACH, RoHS |
| Package/Case | 5075 |
| Maximum DC Current | 2.6A |
| Pin Count | 2 |
| Maximum DC Resistance | 80mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Radial |
| Maximum Self Resonant Frequency | 28MHz |
| Inductor Construction | Wirewound |
Key Features
- Constructed with a ferrite core for improved performance.
- Features unshielded design and radial termination style.
- Maximum DC current rating of 2.6 A ensuring reliable operation.
- Compact dimensions of 6 mm diameter and 8.5 mm height for space-saving layouts.
- High self-resonant frequency of 28 MHz suitable for signal filtering and EMI suppression.
- Low DC resistance of 80 mΩ minimizes power loss during operation.
- Operates reliably within temperature range of -40°C to 125°C.
- Compliance with IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS standards.
Product Description
Wurth Elektronik 7447462100 WE-TI 5075 wirewound surface mount inductor offers 10 μH inductance with ±20 % tolerance, designed for applications requiring stable inductance and high current capability up to 2.6 A Idc. This radial termination type inductor uses a ferrite core material which ensures high saturation and excellent magnetic properties, making it suitable for demanding electronic and electrical applications.
Its compact 6 mm diameter, 8.5 mm height, and 6 mm depth dimensions make it ideal for space-constrained circuit boards. The inductor features low DC resistance of 80 mΩ, which reduces power losses, and has a high self-resonant frequency of 28 MHz. Operating temperature range from -40°C to 125°C allows use in harsh environments.
Applications for the Wurth WE-TI series inductor include signal filtering, decoupling tasks, power supply filters, EMI filters, and low power switch mode regulators in industrial, automotive, telecommunications, and consumer electronics sectors. Its compliance with IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS standards ensures quality and environmental safety.
The inductor is supplied in bags and cartons for protection during storage and transportation. The product is manufactured in China under strict quality control to deliver reliable and consistent performance.
Constructed with a ferrite core for improved performance. Features unshielded design and radial termination style. Maximum DC current rating of 2.6 A ensuring reliable operation. Compact dimensions of 6 mm diameter and 8.5 mm height for space-saving layouts.
High self-resonant frequency of 28 MHz suitable for signal filtering and EMI suppression. Low DC resistance of 80 mΩ minimizes power loss during operation. Operates reliably within temperature range of -40°C to 125°C. Compliance with IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS standards.
Packaged in bags and cartons for safe transport and handling. Browse more Surface Mount Inductors and components on EnvMart for advanced electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Wurth Elektronik WE-TI 5075 has an inductance value of 10 μH with a tolerance of ±20%.
This unit has a maximum DC current rating of 2.6 A, ensuring reliable operation in various applications.
The inductor has a diameter of 6 mm, a height of 8.5 mm, and a depth of 6 mm, making it suitable for space-constrained layouts.
It features a high self-resonant frequency of 28 MHz, which is suitable for signal filtering and EMI suppression applications.
The operating temperature range for the WE-TI 5075 is from -40°C to 125°C, allowing it to function in harsh environments.
This inductor is constructed with a ferrite core, which enhances its performance characteristics.
It complies with IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS standards, ensuring quality and environmental safety.
The inductor has a low DC resistance of 80 mΩ, which minimizes power loss during operation.
This model features a radial termination style, which is common for surface mount inductors.
It is suitable for applications such as signal filtering, decoupling tasks, power supply filters, and EMI filters in various sectors including automotive and telecommunications.
The inductor is supplied in bags and cartons for protection during storage and transportation.
This inductor has a pin count of 2, which is typical for its design and application.
