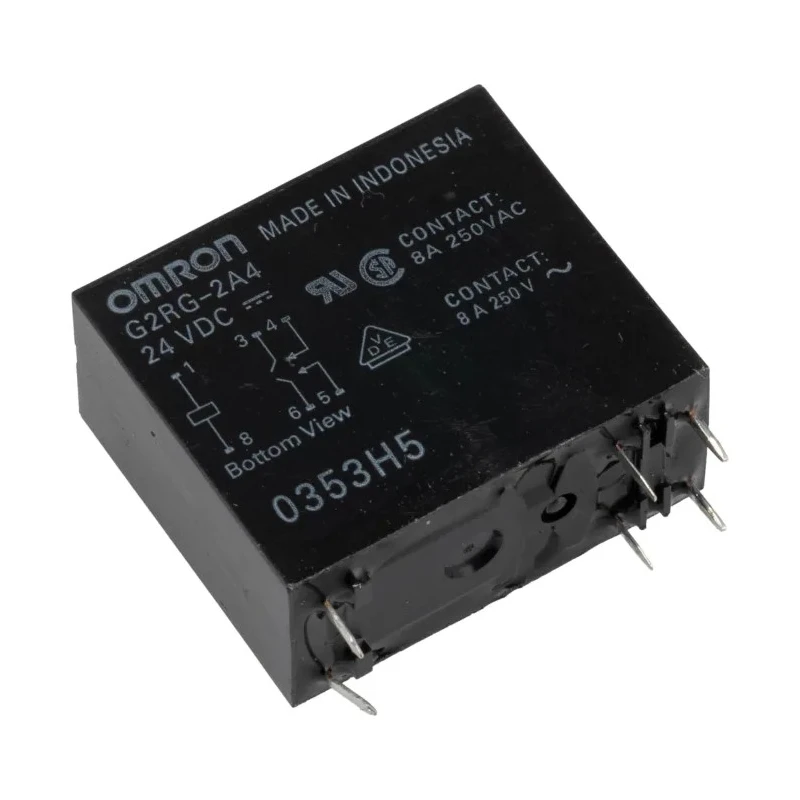

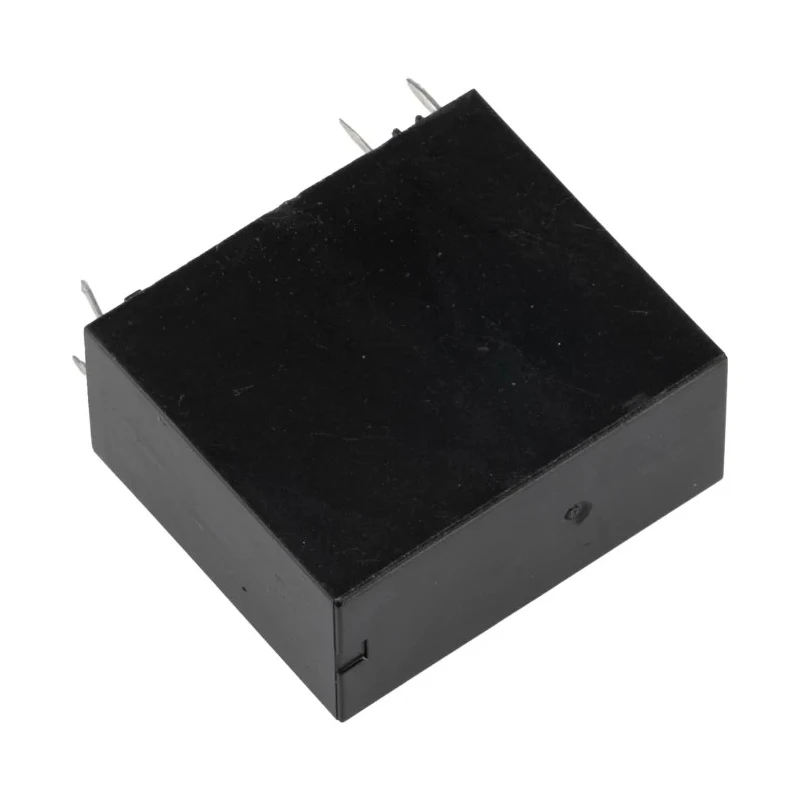

Omron PCB Power Relay 24V DC Coil 8A Switching Current DPST G2RG-2A4 DC24

Omron G2RG-2A4 DC24 PCB Power Relay is a precision electrical component featuring a 24V DC coil voltage and an 8A switching current capacity, designed primarily for use in printed circuit board (PCB) configurations. Its DPST (Dual Pole Single Throw) contact configuration allows for independent switching of two circuits simultaneously, making it suitable for a variety of control and automation tasks.

The relay's compact physical dimensions - 29mm in length, 25.5mm in height, and 13.5mm in width - allow integration into space-constrained industrial and electronic assemblies. Its silver alloy contacts ensure excellent electrical conductivity while providing long service life and resistance to wear. The coil has a resistance of 720 ohms with coil power consumption at 0.9 watts, delivering efficient energy use during operation.

This Power Relay is rated for switching DC voltages up to 100V and AC voltages up to 250V, with a maximum switching power rating of 2 kVA. It operates reliably across a broad temperature range from minus 40 degrees Celsius to plus 70 degrees Celsius, suitable for diverse industrial environments.

The device conforms to multiple international standards including CSA, RoHS, UL, and VDE, certifying its quality and safety in electrical applications. The relay's fully sealed design minimizes contamination and environmental impact on performance, making it ideal for industrial, automation, manufacturing, control systems, and HVAC equipment.

Typical usage includes efficient insertion in machinery and electronic control panels to enhance production efficiency and reliable system control. The relay's PCB mounting with solder terminals facilitates straightforward assembly during manufacturing processes.

Coil voltage of 24V DC supports efficient relay operation. Dual Pole Single Throw (DPST) contact configuration for versatile switching. Designed for PCB mounting with solder terminal type ensuring reliable installation. Switching current rated at 8 amperes suitable for moderate load applications.

Compact dimensions: 29mm length, 25.5mm height, and 13.5mm width. Silver alloy contact material providing durable conductivity and reliable switching. Operating temperature range from -40°C to 70°C for wide environmental use.

Coil resistance of 720Ω and coil power of 0.9W for stable activation. Conforms to CSA, RoHS, UL, and VDE standards ensuring safety and compliance. Fully sealed construction enhances reliability and protection against environmental factors.
