ams OSRAM Infrared Photodiode Surface DIP Package ±60 ° Angle of Half Sensitivity SFH 2400 FA-Z

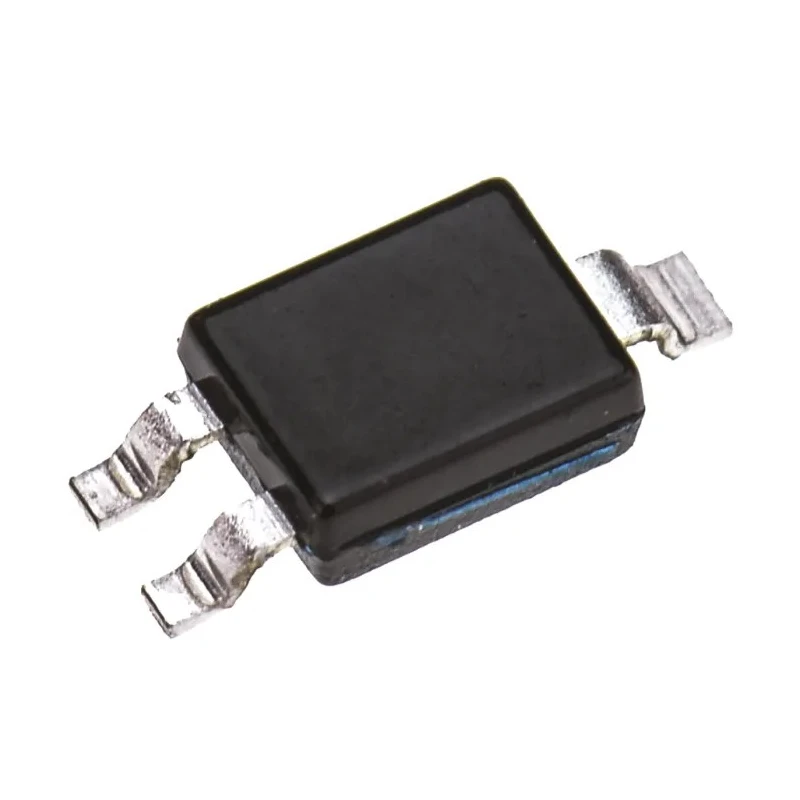

ams OSRAM SFH 2400 FA-Z is a high-performance infrared PIN photodiode optimized for surface mount applications with a ±60 ° angle of half sensitivity. The device features a sensitive 1 x 1 mm² radiant area enclosed in a compact DIP package, making it ideal for integration into advanced electronic and sensing systems.

This photodiode operates within the infrared wavelength range of 750 nm to 1100 nm, peaking at 900 nm, providing precise detection for a variety of industrial and automotive sensor applications including rain sensors, headsets, and photointerrupters. Its device characteristics feature low dark current of 1nA, a short circuit current of 6μA, and breakdown voltage rated at 20V.

The SFH 2400 FA-Z offers fast electrical response with typical rise and fall times of 0.005μs, enhancing signal processing capabilities in real-time scenarios. Its operational temperature range of -40°C to 100°C ensures reliable performance in harsh environments. The 3-pin surface mount configuration with tape and reel packaging supports efficient automated manufacturing processes.

This model complies with JEDEC J-STD-020D.01 standards, underscoring its quality and durability for industrial use. The forward polarity design facilitates easy circuit integration while the device is not amplified, providing raw photodiode response suitable for custom amplification needs.

Key technical specifications include a compact size of 2.1 mm length, 1.0 mm width, and 1.05 mm height, making it well suited for space-constrained applications. The photodiode is part of the SFH series, demonstrating ams OSRAM’s commitment to advanced optoelectronic components.

Sensitive to infrared light with a peak at 900 nm wavelength. Compact DIP surface mount package measuring 2.1 × 1.0 × 1.05 mm. Low dark current and high short circuit current for clear signal detection. Wide temperature range from -40°C to 100°C for industrial robustness.

Fast response times with typical rise/fall of 0.005 μs. 3-pin configuration compatible with tape & reel automated assembly. Non-amplified PIN photodiode with forward polarity and a 20V breakdown voltage. Complies with JEDEC J-STD-020D.01 standard for quality assurance.

Applicable for industrial electronics, automotive sensors, and photointerrupters. Explore more advanced and reliable photodiodes and optoelectronic components in the Electronics Components category at EnvMart.
