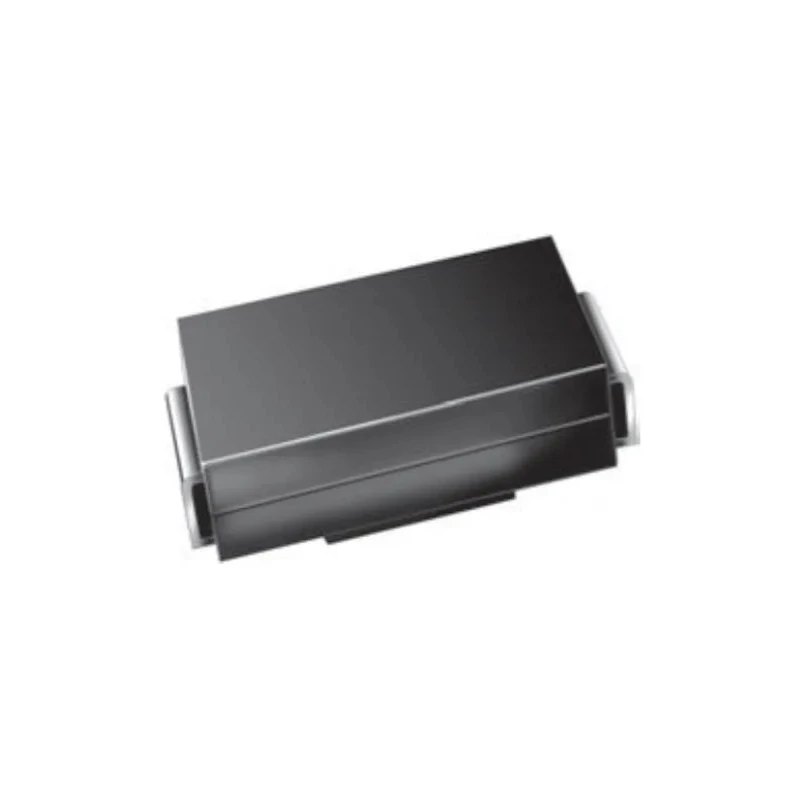

Vishay Bi-Directional TVS Diode 300 W DO-214AC Surface Mount Protection SMAJ130CAHM3_A/H

Vishay SMAJ130CAHM3_A/H Bi-Directional TVS Diode is a surface mount transient voltage suppressor designed to protect sensitive electronics from voltage transients caused by inductive load switching and lightning. It provides 300 W peak pulse power dissipation in a reliable DO-214AC (SMA) package, suitable for industrial, automotive, telecommunications, and consumer electronics applications.

The diode features a minimum breakdown voltage of 144 V and a maximum reverse stand-off voltage of 130 V, allowing effective clamping of voltage spikes. It supports a peak pulse current of 209 A and has a clamping voltage of 209 V. With a low maximum leakage current of 1 μA and rapid response time, it ensures excellent protection without impacting circuit performance.

Operating temperature ranges from -65°C up to 150°C, offering robustness across a wide range of environments. The device is glass passivated and RoHS compliant, additionally being AEC-Q101 qualified for automotive use. Package dimensions are compact with 4.5 mm length, 2.29 mm width, and 2.79 mm height, enabling space-saving PCB designs with automated placement capabilities.

This TVS diode is suited for protecting ICs, MOSFETs, signal lines, sensor units, and other components in applications requiring high reliability against electrostatic discharges and voltage surges.

Designed for transient voltage suppression in sensitive electronics. Bi-directional clamping for AC/DC voltage protection. Glass passivated junction for durability. Low leakage current and fast response time. Robust temperature range and automotive qualification.

Compact surface mount DO-214AC package. Efficient peak pulse power handling capability of 300 W. Explore more TVS Diode products from Vishay in EnvMart for reliable electronic circuit protection solutions.
