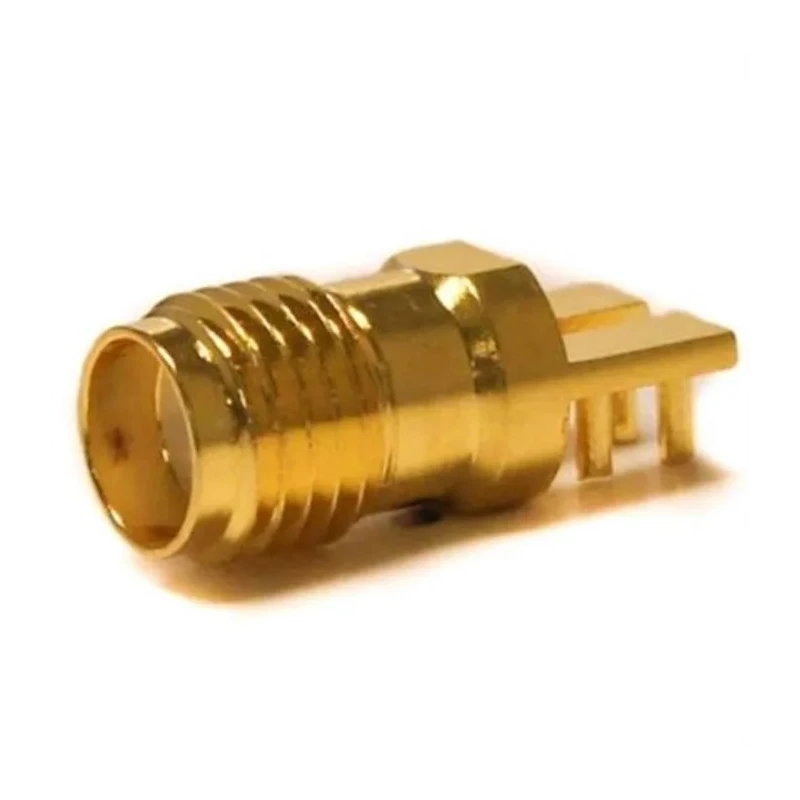

Mueller Electric SMA Series Coaxial Connector Edge Female SMA, 50 Ω, Straight Body Solder BU-1420761801
Specifications
| Country of Origin | China |
|---|---|
| Brand | Mueller Electric |
| Orientation | Straight |
| Model | BU-1420761801 |
| Mount Type | Edge |
| Operating Frequency | 18GHz |
| Contact Material | Beryllium Copper Alloy |
| Series | SMA |
| Termination Type | Solder |
| Maximum Operating Temperature | 150°C |
| Cable Type | Coaxial |
| Minimum Operating Temperature | -65°C |
| Impedance | 50Ω |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMA |
| Body Plating | Brass |
Key Features
- Constructed with gold plated brass body ensuring excellent conductivity and corrosion resistance.
- Operates effectively within -65°C to 150°C temperature range.
- Supports operating frequency up to 18 GHz for robust signal integrity.
- Features a female contact made of gold-plated beryllium copper alloy for high reliability.
- Designed for coaxial cable type with 50 ohm impedance matching.
- Termination type is solder ensuring durable mechanical and electrical connection.
- Edge mount configuration for compact PCB integration.
- RoHS compliant ensuring adherence to environmental standards.
Product Description
Mueller Electric BU-1420761801 is a precision SMA Series Coaxial Connector designed for demanding electronic and RF applications. This edge mount female SMA connector features a gold plated brass body that provides excellent electrical performance and mechanical durability. Its impedance of 50 Ω and an operating frequency of up to 18 GHz make it suitable for high-frequency signal transmission in communications, industrial, laboratory, and manufacturing equipment.
The connector supports an operating temperature range from -65°C to 150°C, ensuring reliable operation in varying environmental conditions. The contact gender is female, constructed of gold-plated beryllium copper alloy, maximizing conductivity and corrosion resistance. The solder termination type facilitates a secure and stable connection to coaxial cables.
This model conforms to RoHS standards, making it an environmentally responsible choice. Ideal for use in electronic components assemblies where edge mount connectors are required, this product supports applications in telecommunications, instrumentation, and precision electronic devices.
The compact straight body design allows ease of installation on PCBs and wiring harnesses. The 50 Ω impedance is essential for optimized signal integrity in RF systems, antennas, and test equipment.
RoHS compliance and quality materials ensure the connector meets stringent industrial and commercial specifications. Mueller Electric is known for producing high-quality connectors for professional and industrial use.
Constructed with gold plated brass body ensuring excellent conductivity and corrosion resistance. Operates effectively within -65°C to 150°C temperature range. Supports operating frequency up to 18 GHz for robust signal integrity.
Features a female contact made of gold-plated beryllium copper alloy for high reliability. Designed for coaxial cable type with 50 ohm impedance matching. Termination type is solder ensuring durable mechanical and electrical connection.
Edge mount configuration for compact PCB integration. RoHS compliant ensuring adherence to environmental standards. Discover more industrial connectors and electronic components in our extensive EnvMart catalogue for precision applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports an operating frequency of up to 18 GHz, making it suitable for high-frequency signal transmission.
The connector is designed for coaxial cable type with a 50 ohm impedance, which is essential for optimized signal integrity in RF systems.
It operates effectively within a temperature range of -65°C to 150°C, ensuring reliable performance in varying environmental conditions.
The termination type is solder, which ensures a durable mechanical and electrical connection to coaxial cables.
It features a gold plated brass body and a female contact made of gold-plated beryllium copper alloy, providing excellent conductivity and corrosion resistance.
This model has an edge mount configuration, allowing for compact integration on printed circuit boards (PCBs).
Yes, it is RoHS compliant, ensuring adherence to environmental standards.
The orientation of this connector is straight, which facilitates easier installation in various applications.
The contact gender is female, which is suitable for connecting with male counterparts in coaxial applications.
The connector is manufactured in China.
It is ideal for use in telecommunications, instrumentation, and precision electronic devices due to its high-frequency capabilities and robust design.
The body is plated with brass, which enhances its durability and electrical performance.
