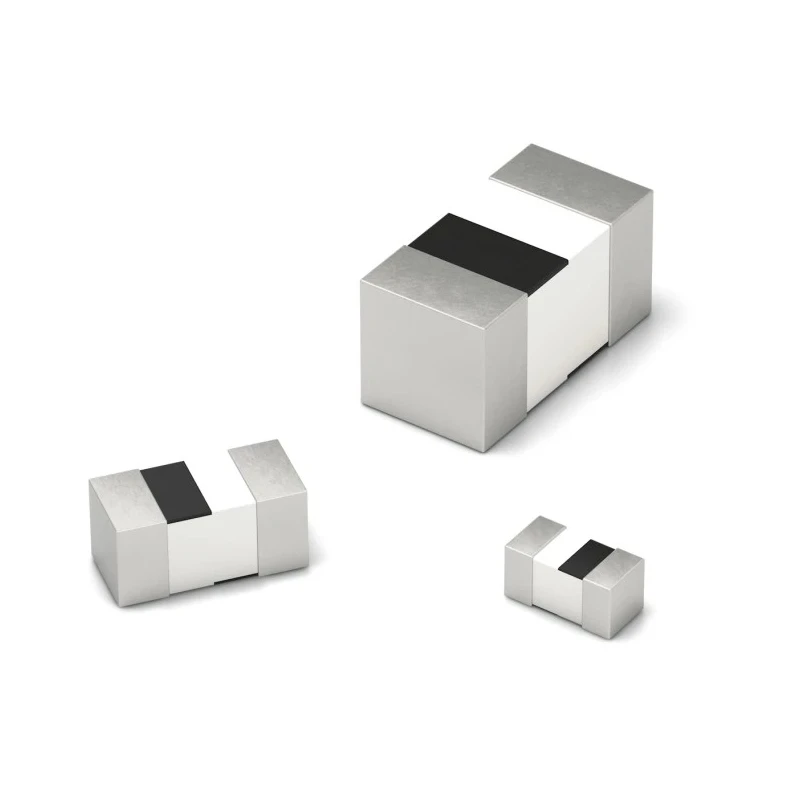

Wurth Elektronik 0805 Shielded Surface Mount Inductor with Ceramic Core 10 nH ±5% 300 mA Idc Q:15 7447880110

Wurth Elektronik 7447880110 is a 0805 size shielded surface mount inductor featuring a multilayer ceramic construction with a ceramic core. It offers an inductance of 10 nH with a tolerance of ±5%, a rated maximum DC current of 300 mA, and a minimum quality factor of 15, ensuring reliable high-frequency performance. The inductor has a maximum DC resistance of 0.3 Ω and can operate in temperatures ranging from -55°C to 125°C.

This component conforms to automotive standard AEC-Q200 Grade 1, making it suitable for demanding automotive and industrial applications requiring robust reliability. The shielded construction reduces electromagnetic interference, supporting sensitive high-frequency circuit designs such as wireless communication modules, oscillators, and general electronic assemblies.

The 0805 package size with surface mount terminations facilitates easy automated assembly processes. Tape and reel packaging further supports high-volume production efficiency. With dimensions of 2 mm length, 0.85 mm height, and 1.25 mm depth, this compact inductor is ideal for space-constrained circuit boards.

The inductor’s multilayer ceramic build provides stable inductance over temperature variations. Its ceramic core ensures consistent magnetic properties and thermal stability. Low DC resistance minimizes power losses in circuits.

Shielded design protects against electromagnetic interference for improved signal integrity. Conforms to RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21 standards for environmental and quality compliance.

This surface mount inductor is widely used in electronic components manufacturing, automotive electronics, communication equipment, laptops, and other industrial applications requiring precise inductance and high reliability.
