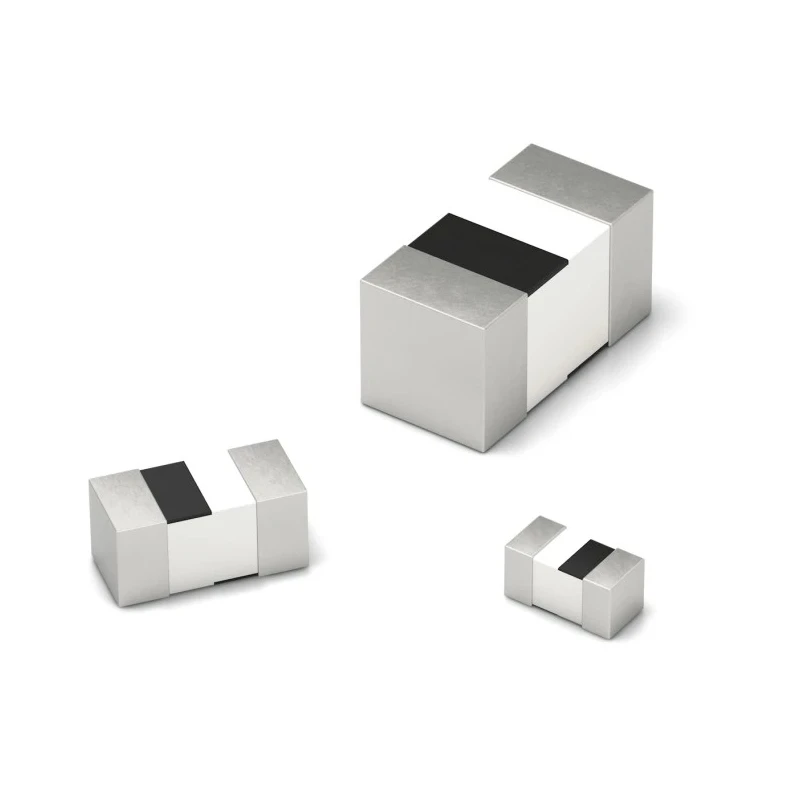

Wurth Elektronik WE-MK 0805 Shielded Surface Mount Inductor with Ceramic Core 10 nH Multilayer ±5 % 300 mA Idc Q15 7447880110

Wurth Elektronik 7447880110 WE-MK 0805 Shielded Surface Mount Inductor with Ceramic Core is a multilayer ceramic SMT inductor designed for high frequency electronic applications including Bluetooth, wireless LAN, oscillators, and laptop circuits. It offers an inductance of 10 nH with a tolerance of ±5%, ensuring precision in circuit function.

The device features a compact 0805 package size with dimensions of 2 mm length, 0.85 mm height, and 1.25 mm depth. Its ceramic core construction provides high mechanical stability and excellent shielding, which is critical for noise-sensitive applications.

This inductor is rated for a maximum DC current of 300 mA and has a maximum DC resistance of 0.3 Ω, which minimizes power losses and maintains circuit efficiency. Its operating temperature range of -55°C to 125°C and compliance with automotive AEC-Q200 Grade 1 standards certify its robustness in harsh environments.

The product conforms to RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21 standards, emphasizing its quality and environmental compliance. The multilayer construction together with a minimum quality factor of 15 contributes to stable inductance and reliable performance even at high frequencies.

The inductor features a compact 0805 package size suitable for surface mount applications. Maximum DC current rating of 300 mA supports moderate power circuits. Constructed with a multilayer ceramic core providing high stability and shielding.

Rated operating temperature ranges from -55°C to 125°C for wide environmental compatibility. Maximum DC resistance is low at 0.3 Ω minimizing power loss in circuits. Minimum quality factor of 15 ensures efficient performance at high frequencies.

Compliant with RoHS and REACH standards and meets JEDEC JS709B and IEC 61249-2-21 requirements. Pin count of 2 supports typical circuit board mounting needs.

This highly reliable and precise surface mount inductor is ideal for industrial, telecommunications, consumer electronics, and automotive applications. It is provided in Tape & Reel packaging to facilitate automated assembly processes in manufacturing.
