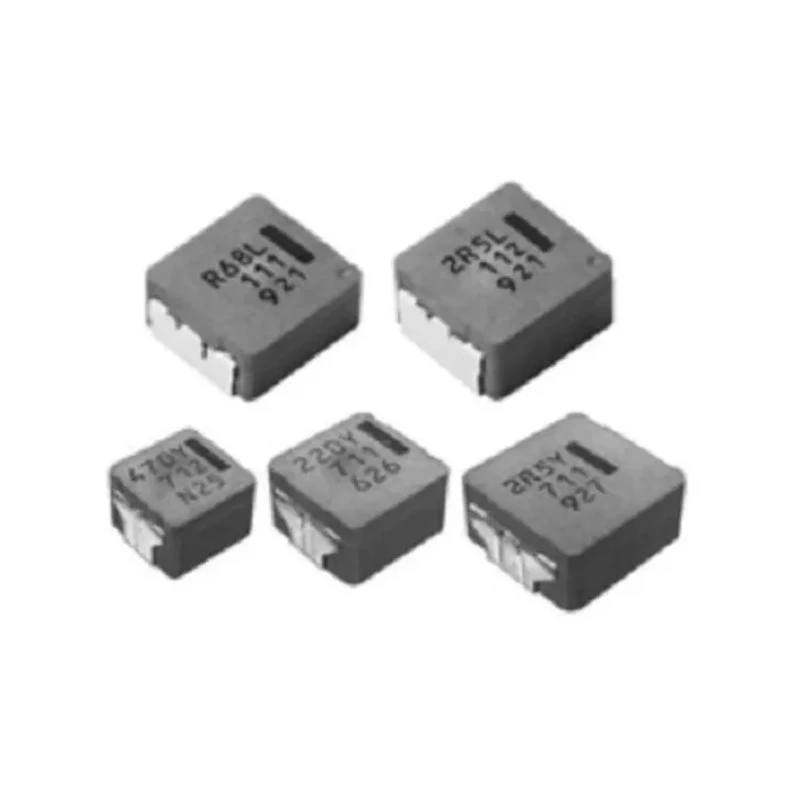

Panasonic Shielded Wirewound Surface Mount Inductor with Metal Composite Core 2.5 μH ±20 % 18.1 A Idc ETQP5M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 5.4mm |
| Length | 10.7mm |
| Model | ETQP5M |
| Depth | 10mm |
| Packaging | Tape & Reel |
| Series | ETQP5M |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 2.5μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 18.1A |
| Pin Count | 2 |
| Maximum DC Resistance | 5.9mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a metal composite core for high heat resistance and reliability.
- Features a shielded wirewound design with high vibration resistance.
- Inductance tolerance of ±20% ensures stable performance.
- Supports operation up to 150°C with low audible noise.
- Complies with RoHS and automotive standard AEC-Q200.
- Packaged in tape and reel format for efficient production insertion.
- Has a maximum DC resistance of 5.9 mΩ and a maximum self-resonant frequency of 100 kHz.
Product Description
Panasonic ETQP5M shielded wirewound surface mount inductor features a high-reliability metal composite core designed for industrial and automotive applications. It provides 2.5 μH inductance with a tolerance of ±20%, supporting a maximum DC current of 18.1 A, ideal for high-current power circuits.
The inductor is constructed with wirewound technology, featuring a shielded design that reduces electromagnetic interference, maintaining signal integrity in sensitive electronic environments. It offers high vibration resistance through integral construction, ensuring durability during mechanical stress.
Rated for operation up to 150°C, this inductor demonstrates excellent temperature stability and low audible noise, making it suitable for demanding automotive and industrial systems requiring robust noise filtering and peak current handling.
Compliance with RoHS directive and the automotive standard AEC-Q200 verifies the inductor's suitability for automotive electronic systems. The component is supplied in tape and reel packaging, facilitating high-volume assembly and production efficiency.
Additional features include a maximum DC resistance of 5.9 mΩ and a maximum self-resonant frequency of 100 kHz. The compact surface mount package measures 10.7 mm in length, 5.4 mm in height, and 10 mm in depth, making it compatible with varied PCB layouts.
Constructed with a metal composite core for enhanced heat resistance. Shielded wirewound design reduces noise and interference. High vibration resistance ensures durability in harsh conditions. Operating temperature range from -40°C to 150°C.
Compliance with automotive AEC-Q200 and RoHS standards. Packaged in tape and reel for streamlined surface mount assembly. Maximum DC current rating of 18.1 A with ±20% inductance tolerance. Ideal for industrial, automotive, and electronic power applications.
Explore additional Surface Mount Inductors and related electronic components on EnvMart for your industrial and commercial needs.
