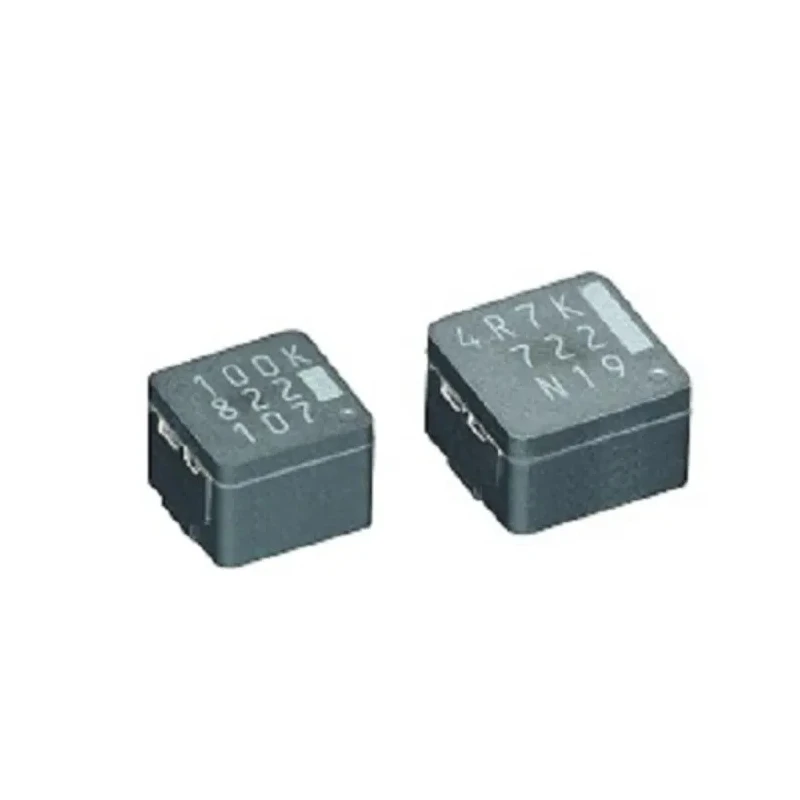

Panasonic Shielded Wirewound Surface Mount Inductor with Metal Composite Core 47 μH ±20% 2.9 A Idc ETQP4M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 4.8mm |
| Length | 7.4mm |
| Model | ETQP4M |
| Depth | 7mm |
| Packaging | Tape & Reel |
| Series | ETQP4M |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 47μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 2.9A |
| Pin Count | 2 |
| Maximum DC Resistance | 163.46mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a metal composite core for high heat resistance.
- Compact surface mount package with dimensions 7.4mm length, 4.8mm height, and 7mm depth.
- Features shielding to minimize electromagnetic interference.
- Rated for operating temperatures from -40°C to 150°C with AEC-Q200 automotive standard compliance.
- Maximum DC resistance of 163.46 milliohms ensures efficient current flow.
- Wirewound inductor construction provides excellent inductance stability and low audible noise.
- Suitable for noise filtering in various high temperature and high peak current applications.
- Packaged in tape and reel format aiding automated assembly processes.
Product Description
Panasonic ETQP4M Shielded Wirewound Surface Mount Inductor with a Metal Composite Core provides a reliable inductance of 47 μH ±20%, supporting a maximum DC current of 2.9 A. Designed for surface mount assembly, this inductor is optimized for high heat resistance and vibration tolerance thanks to its metal composite core and integral construction.
The compact dimensions of 7.4mm length, 4.8mm height, and 7mm depth make it suitable for space-constrained electronic circuits. Its construction includes shielding to reduce electromagnetic interference and stable inductance performance under thermal stress and bias currents.
Certified to meet AEC-Q200 automotive standards, it operates efficiently in temperatures ranging from -40°C to 150°C. The maximum DC resistance of 163.46 milliohms ensures minimal power loss, enhancing energy efficiency in power regulation circuits.
This wirewound inductor demonstrates low audible noise during operation, making it ideal for noise filtering in sensitive drive circuits requiring high temperature operation and peak current handling capability. Moulded design and packaging in tape and reel format enable ease of use in automated PCB assembly lines.
High heat resistance and reliability due to metal composite core construction. Shielded design attenuates electromagnetic interference. Compliance with automotive standard AEC-Q200 ensures durability. Low DC resistance for efficient current handling.
Designed for noise filtering in industrial and automotive electronics. Compact surface mount package supports advanced miniaturization. Rated for operation from -40°C to 150°C ambient temperatures. Packaged in tape and reel format for manufacturing efficiency.
This Panasonic ETQP4M inductor suits industrial, automotive, and electronic manufacturing sectors requiring stable, high-current Surface Mount Inductors. Discover more high-quality inductors and components in the Electronics & Electricals category on EnvMart.
