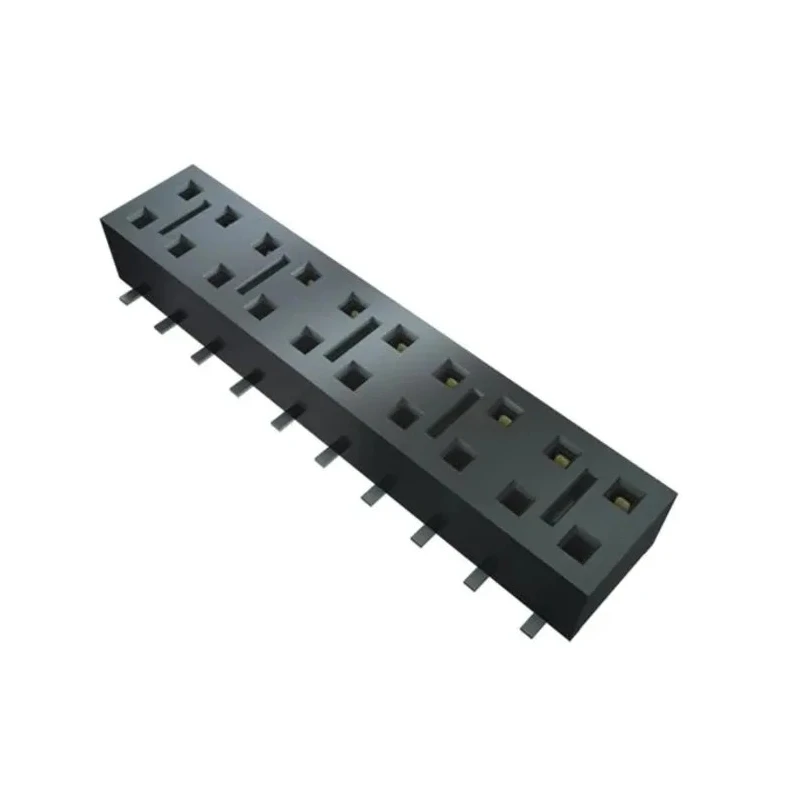

Samtec HLE Series Straight Surface PCB Socket 10-Contact 2 Row 2.54 mm Pitch Solder HLE-105-02-S-DV-K-TR

Samtec HLE-105-02-S-DV-K-TR is a high-quality PCB socket from the HLE Series featuring 10 contacts arranged in 2 rows with a 2.54 mm pitch. It is designed as a straight surface mount connector to provide reliable board-to-board connectivity in electronic assemblies. The socket's housing is manufactured from liquid crystal polymer, offering excellent mechanical strength and high-temperature resistance, facilitating robust performance in demanding industrial environments.

The contacts are crafted from beryllium copper alloy with selective 0.000762 mm gold plating on contact areas, enhancing conductivity and corrosion resistance while the tails are finished with matte tin plating for optimal solderability. Rated for 4.1 A current and 400 V voltage, this PCB socket supports demanding electrical requirements, making it suitable for various industrial, electronic, and manufacturing applications.

Its operational temperature spans from -55°C to 125°C, allowing use in a broad range of environments. The socket features a board-to-board connector system with a straight orientation and surface mount type termination by solder, ensuring secure and stable electrical connections. The product is supplied as a single beam socket strip, providing a cost-effective solution for high-density PCB designs requiring durability and precision.

This connector is ideal for industrial electronics, power connectors, instrumentation, and commercial electronic equipment where reliable signal and power transmission are critical. The combination of material choices and design enables high-performance operation within demanding temperature and current specifications.

This socket features 10 contacts arranged in 2 rows for compact installation. The pitch between contacts is 2.54 mm, supporting standard PCB layouts. Constructed with a liquid crystal polymer housing for durability and heat resistance.

Contacts are made from beryllium copper alloy with gold plating ensuring excellent conductivity and corrosion resistance. Designed to handle up to 4.1 A current and 400 V voltage. Termination is by solder, facilitating secure mounting on PCB surfaces.

Operational temperature range from -55°C to 125°C suits various industrial applications. The connector system is board-to-board with a straight orientation and surface mount style. Packaged as a cost-effective single beam socket strip, suitable for high-density electronic assemblies.
