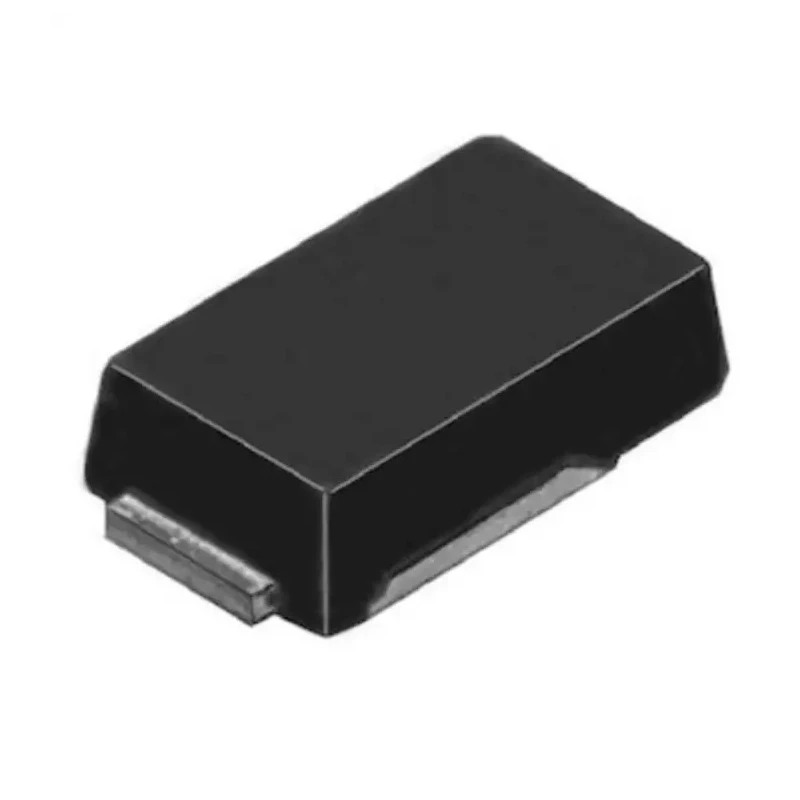

Vishay 200 V 1 A General Purpose Schottky Diode Surface Mount DO-220AA VS-1ENH02HM3/84A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.15mm |
| Length | 4mm |
| Model | VS-1ENH02HM3/84A |
| Width | 2.18mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-220AA |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 20μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Maximum Forward Voltage Vf | 0.92V |
Key Features
- Designed for fast switching and low forward voltage drop.
- Maximum continuous forward current of 1 ampere for reliable performance.
- Peak reverse repetitive voltage of 200 volts suitable for high frequency circuits.
- Low leakage current with a peak reverse current of 20 microamps.
- Operates in a wide temperature range from -55°C to 175°C.
- Compact and robust surface mount DO-220AA package measuring 4 mm length, 2.18 mm width, and 1.15 mm height.
- Complies with RoHS environmental standards and automotive-grade AEC-Q101 certification.
- Ideal for use in inverters, DC/DC converters, polarity protection, and automotive electronics.
Product Description
The Vishay VS-1ENH02HM3/84A Schottky diode is a high-quality, general purpose diode designed to support high frequency switching applications. It is rated for a peak reverse repetitive voltage of 200 V and a maximum continuous forward current of 1 A, making it suitable for demanding electronic circuits in commercial, industrial, and automotive environments.
This diode features a surface mount design in a compact DO-220AA package with dimensions of 4 mm length, 2.18 mm width, and 1.15 mm height, optimizing board space while ensuring robust mechanical stability. Its low forward voltage drop of 0.92 V minimizes power losses during operation, enhancing overall system efficiency.
The device operates reliably over a wide temperature range from -55°C to 175°C, making it well-suited for harsh environmental conditions. It exhibits a low peak reverse current of 20 μA which provides minimal leakage, essential for precision and low power applications.
Certified for RoHS compliance and meeting automotive standard AEC-Q101, this diode is ideal for use in fast switching inverters, freewheeling diodes, DC/DC converters, and polarity protection circuits across industrial and automotive sectors.
Fast switching speeds ensure compatibility with modern power electronics demands. Low forward voltage drop reduces heat generation and increases energy efficiency. Surge current capacity of 40 A provides resilience to transient current spikes.
Surface mount form factor supports automated assembly and reduces manufacturing costs. Robust construction ensures long-term operational reliability in industrial applications. Comprehensive automotive certification allows use in safety-critical and vehicle electronics.
This diode supports a broad range of electronic component assemblies and is an essential device for engineers and designers focused on power management and efficient semiconductor solutions. Explore more Schottky Diodes and semiconductors at EnvMart for reliable electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VS-1ENH02HM3/84A Schottky diode is 1 ampere.
This model has a peak reverse repetitive voltage rating of 200 volts, suitable for high frequency circuits.
The dimensions of the DO-220AA package are 4 mm in length, 2.18 mm in width, and 1.15 mm in height.
It operates in a wide temperature range from -55°C to 175°C, making it suitable for harsh environmental conditions.
The maximum forward voltage drop is 0.92 volts, which helps minimize power losses during operation.
The peak reverse current is 20 microamps, providing minimal leakage current.
It has a peak non-repetitive forward surge current capacity of 40 amperes, allowing it to handle transient current spikes.
Yes, it complies with RoHS environmental standards and meets automotive standard AEC-Q101 certification.
This diode features a surface mount design, which supports automated assembly and reduces manufacturing costs.
It is ideal for use in fast switching inverters, DC/DC converters, polarity protection circuits, and automotive electronics.
The diode configuration is single, which is typical for general purpose applications.
This model has a pin count of 2, suitable for its surface mount design.
