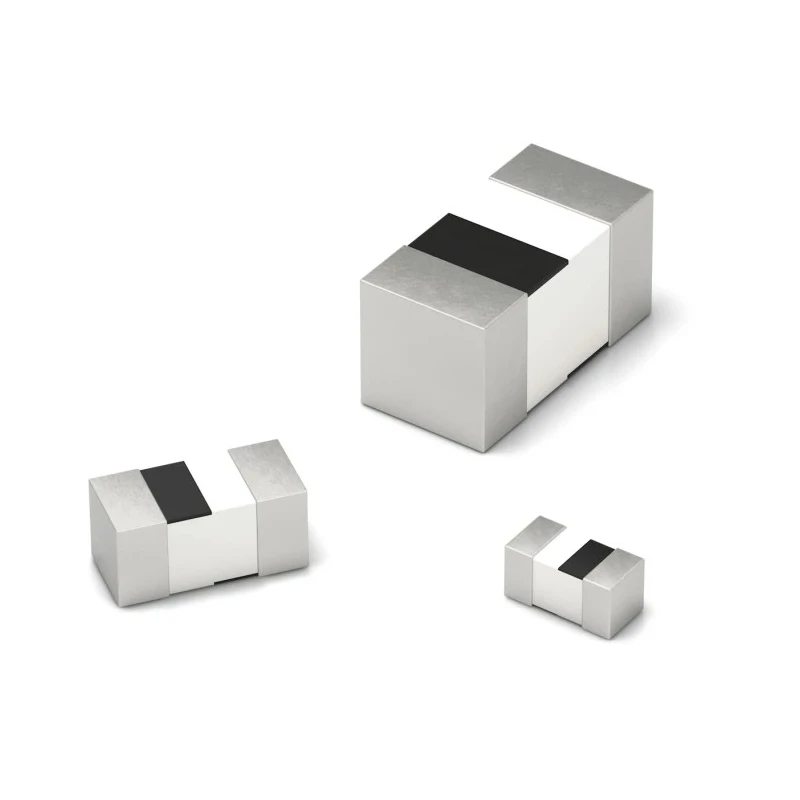

Wurth Elektronik WE-MK Unshielded Multilayer Surface Mount Inductor with Ceramic Core 33nH 5% Tolerance 300mA 7447860133

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WE-MK Unshielded Multilayer Surface Mount Inductor with Ceramic Core 33nH 5% Tolerance 300mA 7447860133

Name: Wurth Elektronik WE-MK Unshielded Multilayer Surface Mount Inductor with Ceramic Core 33nH 5% Tolerance 300mA 7447860133
Brand: Wurth Elektronik
SKU: 403449
Price: 0.05 USD
Availability: InStock



Category Surface Mount Inductor Brand Wurth Elektronik Condition New

Specifications

Country of Origin	Taiwan
Brand	Wurth Elektronik
Operating Temperature	- 55°C to +125°C
Height	0.8mm
Length	1.6mm
Depth	0.8mm
Packaging	Tape & Reel
Series	WE-MK
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Core Material	Ceramic
Inductance	33nH
Standards/Approvals	IEC 61249-2-21, JEDEC JS709B, REACH, RoHS
Maximum DC Current	300mA
Maximum DC Resistance	550mΩ
Inductance Tolerance	5 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	1.2GHz
Minimum Quality Factor	12
Inductor Construction	Multilayer
Automotive Standard	AEC-Q200

Key Features

Constructed with a multilayer ceramic structure providing high stability over temperature.
Features a high self-resonant frequency of 1.2GHz suitable for high-frequency applications.
Has a compact size measuring 1.6mm length, 0.8mm height, and 0.8mm depth.
Meets automotive standard AEC-Q200 for reliable performance in automotive environments.
Designed without shielding and surface mount termination style.
Inductance tolerance is 5% ensuring inductance precision within ±0.3nH.
Operating temperature range is from -55°C to +125°C compatible with harsh conditions.
Maximum DC resistance of 550mΩ and a minimum quality factor of 12.

Product Description

Wurth Elektronik 7447860133 WE-MK is an unshielded multilayer surface mount inductor designed with a ceramic core, featuring an inductance of 33 nanohenries (nH) and a tolerance of 5%. It supports a maximum DC current of 300mA, making it ideal for various electronics applications requiring stable inductance at high frequencies.

The inductor is constructed in a multilayer ceramic format, ensuring stable performance over temperature variations. Its compact dimensions of 1.6mm length, 0.8mm height, and 0.8mm depth make it suitable for space-constrained PCB designs.

This component complies with automotive standard AEC-Q200, meets RoHS, REACH, IEC 61249-2-21, and JEDEC JS709B standards, signifying its suitability for automotive and industrial applications requiring high reliability.

The high self-resonant frequency of 1.2GHz and a quality factor minimum of 12 enable its use in high-frequency circuits such as Bluetooth and wireless LAN devices. Its maximum DC resistance is 550 milliohms, contributing to efficient operation with low power loss.

Multilayer ceramic construction ensures inductance stability over temperature. Compact surface mount package with tape and reel packaging for automated assembly. Operating temperature range from -55°C up to +125°C accommodates harsh environments.

Unshielded design without magnetic shielding suits specific circuit requirements. Precision tolerance of 5% ensures tight inductance control. Compliance with industry standards supports quality assurance and environmental safety.

Applications include use in wireless communication and high-frequency electronic circuits.

Wurth Elektronik's WE-MK series inductors provide reliable performance for industrial, automotive, telecommunications, and consumer electronics applications. Explore the comprehensive range of Surface Mount Inductors at EnvMart for your high-frequency circuit design needs.
